Intake Manifold

EGR valve to intake manifold 25 Nm (18 ft. lbs.)

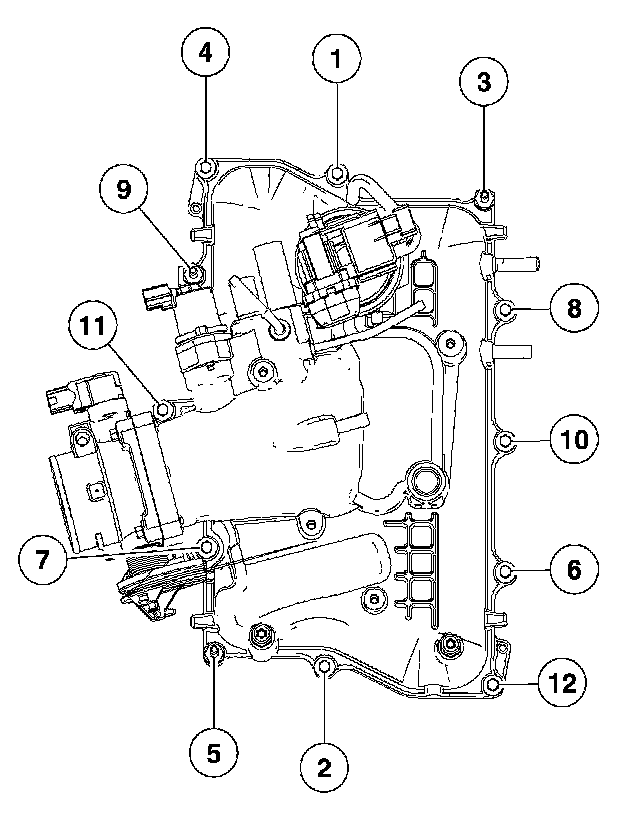

Upper Intake Manifold
Tighten in the sequence shown
Tighten 10 Nm (89 inch lbs.).





Lower Intake Manifold
Tighten in the sequence shown
Tighten 10 Nm (89 inch lbs.).
