2-3 Accumulator: Removal

  1. Remove the main control valve body. For additional information, see MAIN CONTROL VALVE BODY .
  2. Remove the 2-3 accumulator piston retainer.

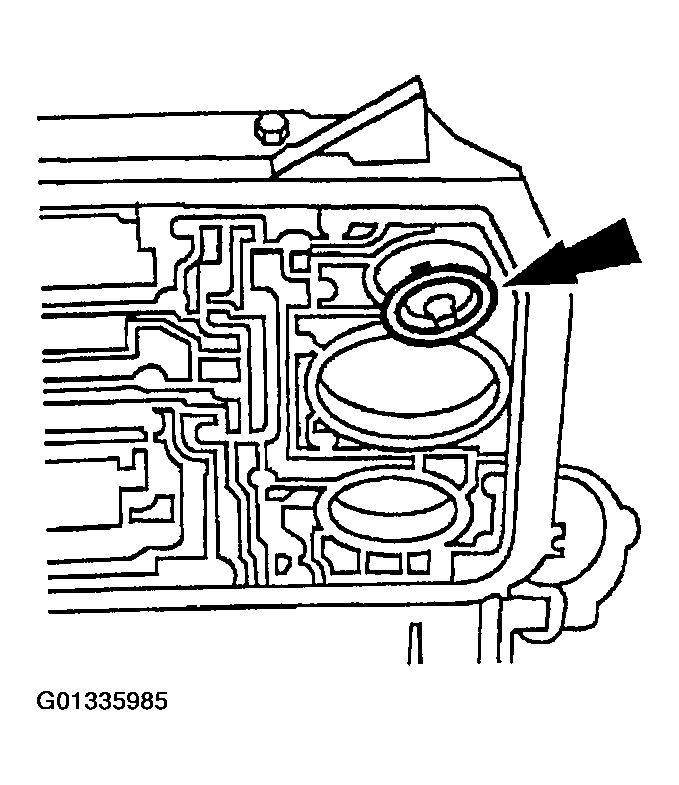

    Fig 1: Removing 2-3 Accumulator Piston Retainer
    G01335985Courtesy of FORD MOTOR CO.
  3. Remove the accumulator piston and spring.
    Fig 2: Removing Accumulator Piston & Spring
    G01335986Courtesy of FORD MOTOR CO.
