Pump and Intermediate Clutch Piston: Disassembly

  1. Remove the No. 1 selective pump support thrust washer.

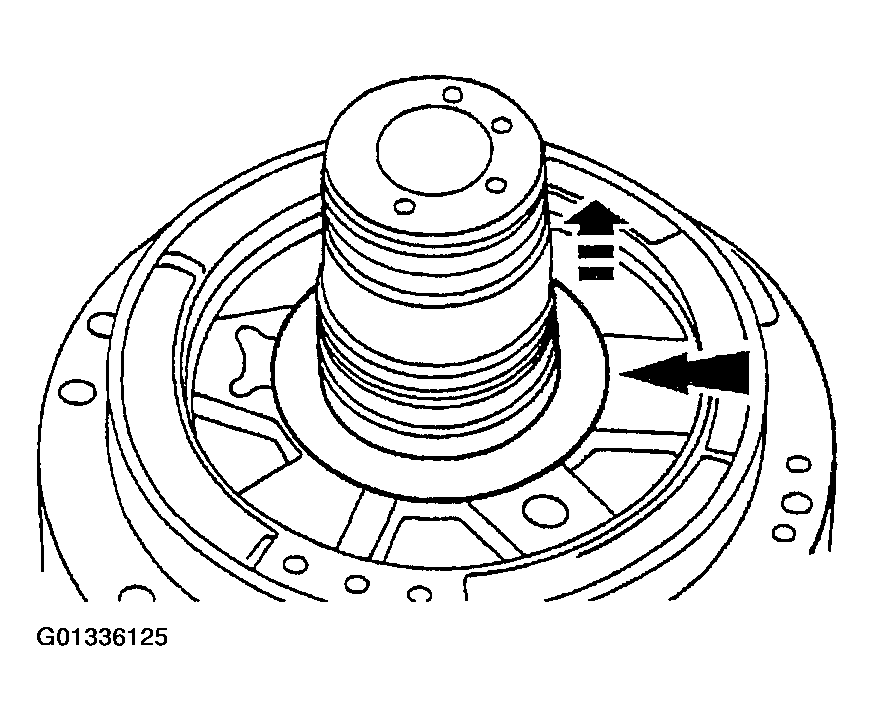

    Fig 1: Removing No. 1 Thrust Washer
    G01336125Courtesy of FORD MOTOR CO.
  2. Remove the front pump support.
    1. Remove the bolts.
    2. Remove the front pump support.

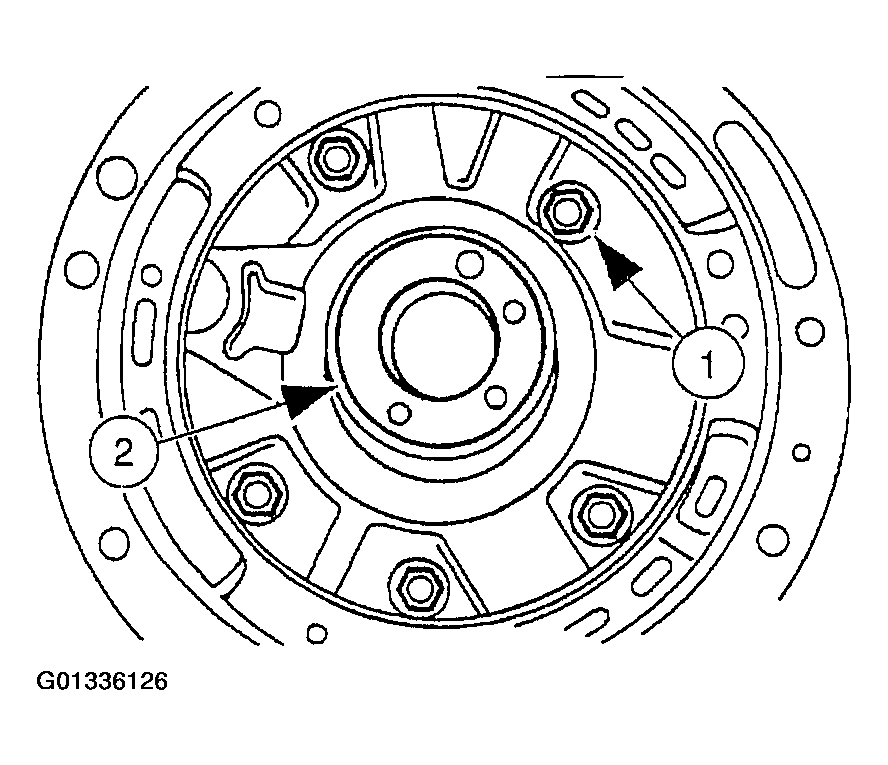

    Fig 2: Removing Front Pump Support
    G01336126Courtesy of FORD MOTOR CO.
  3. Remove the seal rings.
    Fig 3: Removing Sealing Rings
    G01336127Courtesy of FORD MOTOR CO.
  4. Remove the inner and outer pump gerotor gears.

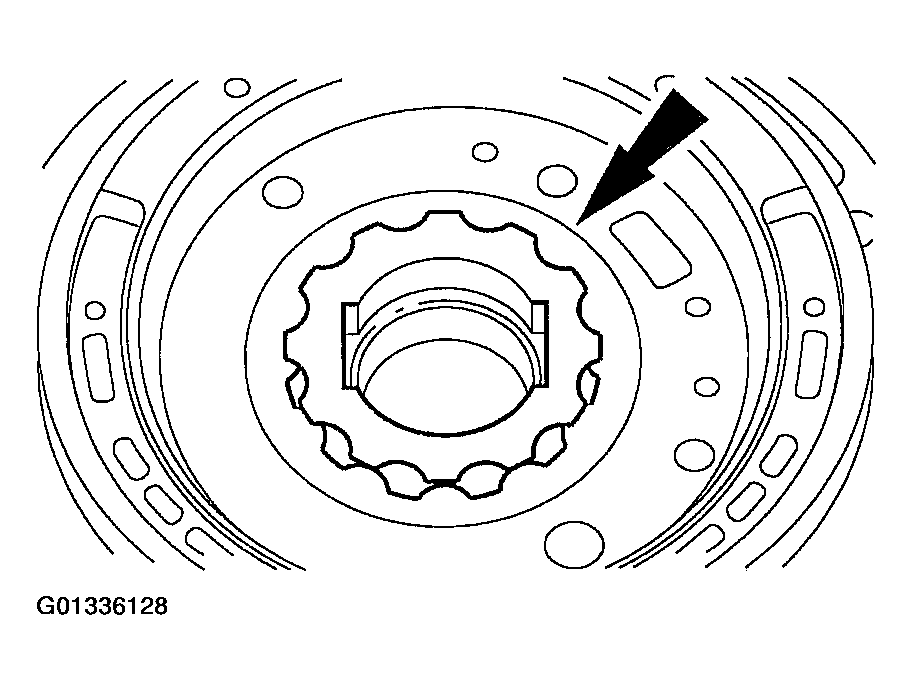

    Fig 4: Removing Pump Gerotor Gears
    G01336128Courtesy of FORD MOTOR CO.
  5. Carefully pry spring retainer tabs and remove the spring retainer assembly.

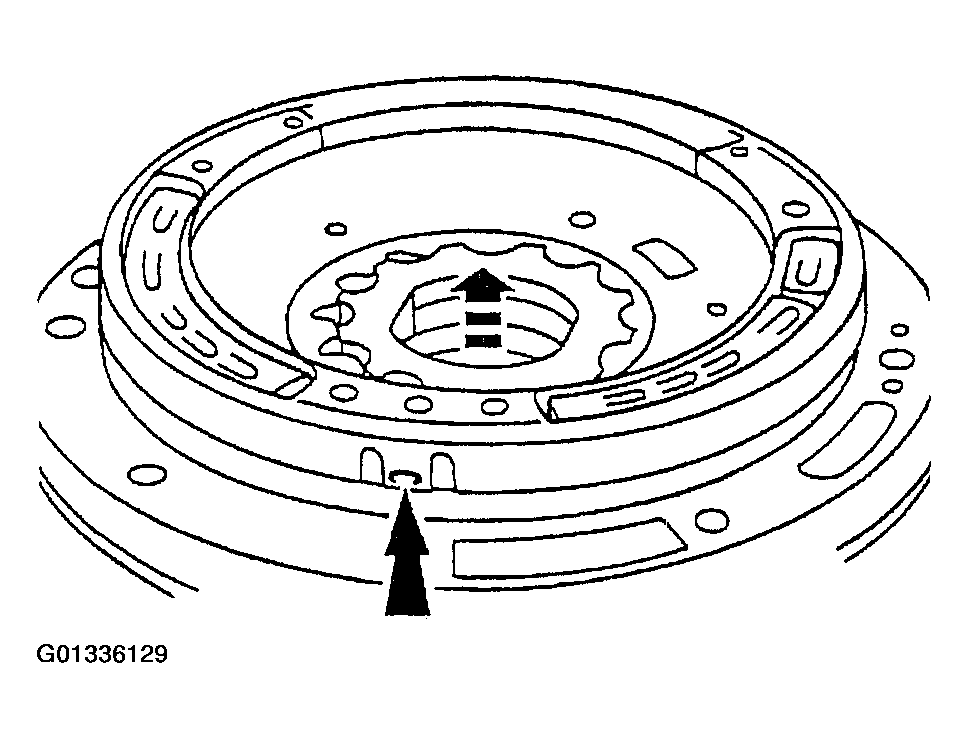

    Fig 5: Removing Spring Retainer Assembly
    G01336129Courtesy of FORD MOTOR CO.
  6. Remove the intermediate clutch piston.

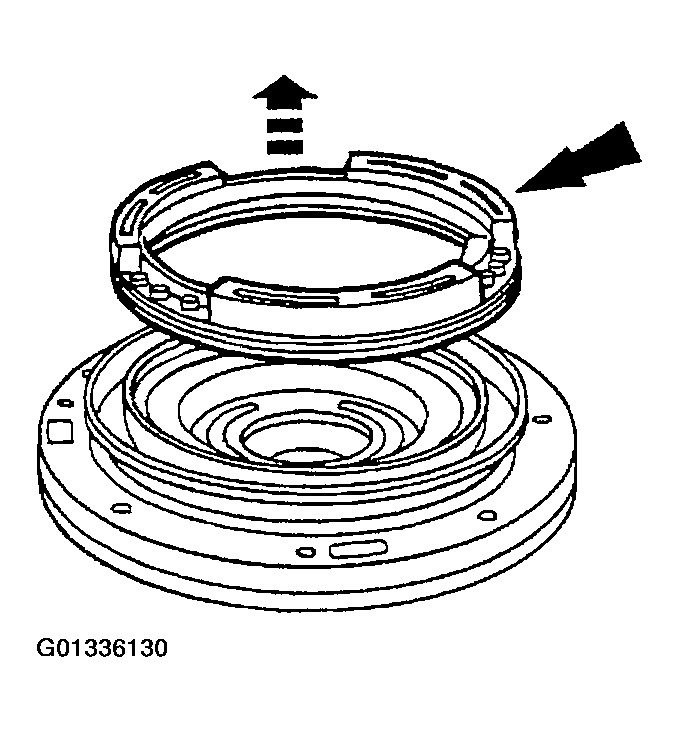

    Fig 6: Removing Intermediate Clutch Piston
    G01336130Courtesy of FORD MOTOR CO.
  7. Remove the clutch piston seals.
    1. Remove the intermediate clutch piston outer seal.
    2. Remove the intermediate clutch piston inner seal.
    Fig 7: Removing Clutch Piston Seal
    G01336131Courtesy of FORD MOTOR CO.
  8. Remove and discard the front pump seal.

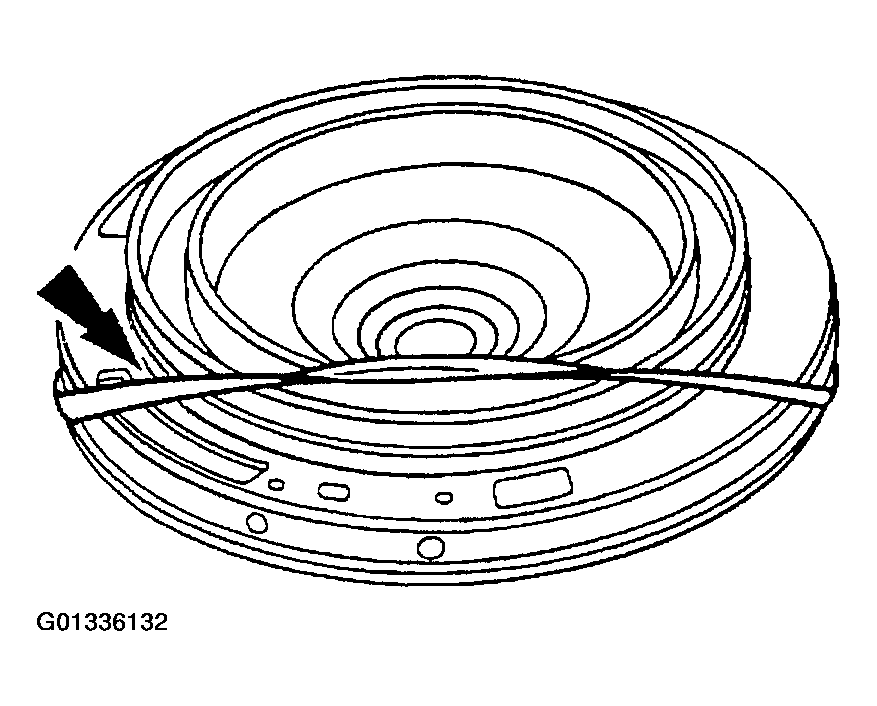

    Fig 8: Removing Front Pump Seal
    G01336132Courtesy of FORD MOTOR CO.
