Special Tool(s)

Fig 1: Special Tool(s)

Courtesy of FORD MOTOR CO.

WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.

WARNING: Fuel in the fuel system remains under high pressure even when the engine is not running. Before servicing or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing personal injury or a fire hazard.

Remove the Schrader valve cap.

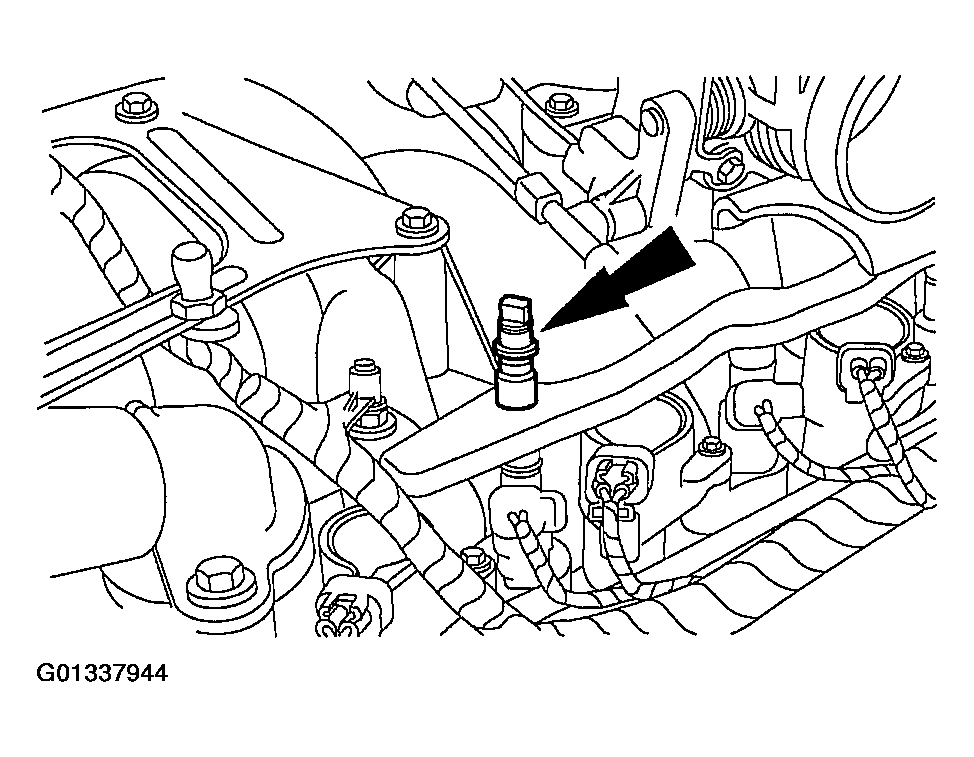

Fig 2: Locating Schrader Valve Cap
Courtesy of FORD MOTOR CO.
Install the special tool and slowly open its manual valve to relieve the fuel pressure.
- This will drain some fuel out of the system. Place the fuel in a suitable container.

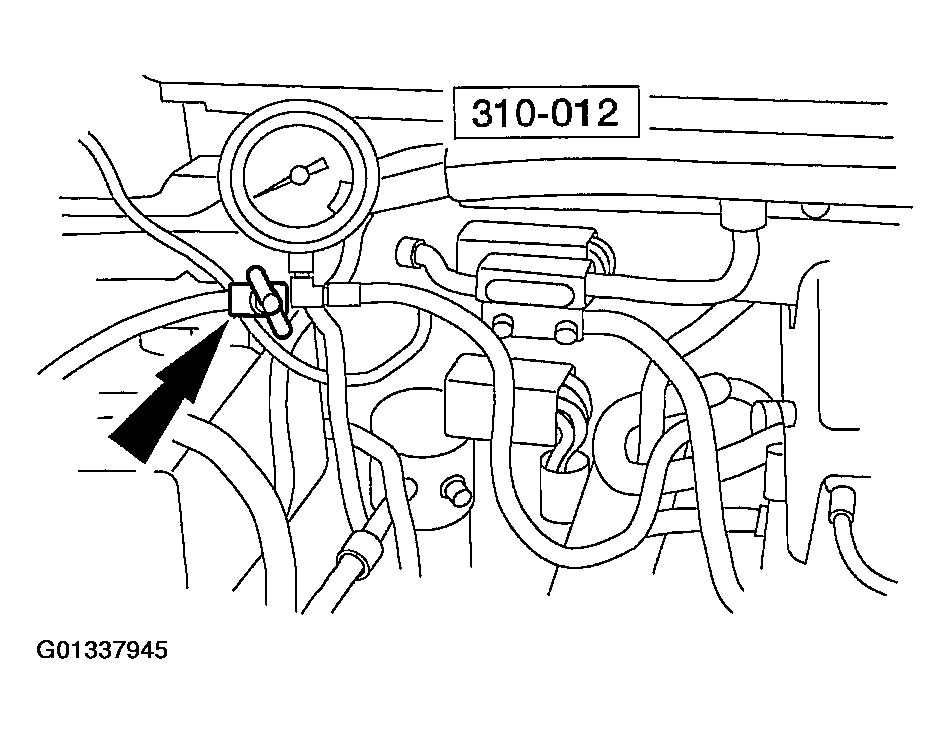

Fig 3: Locating Fuel Pressure Gauge Manual Valve
Courtesy of FORD MOTOR CO.
