Steering Column

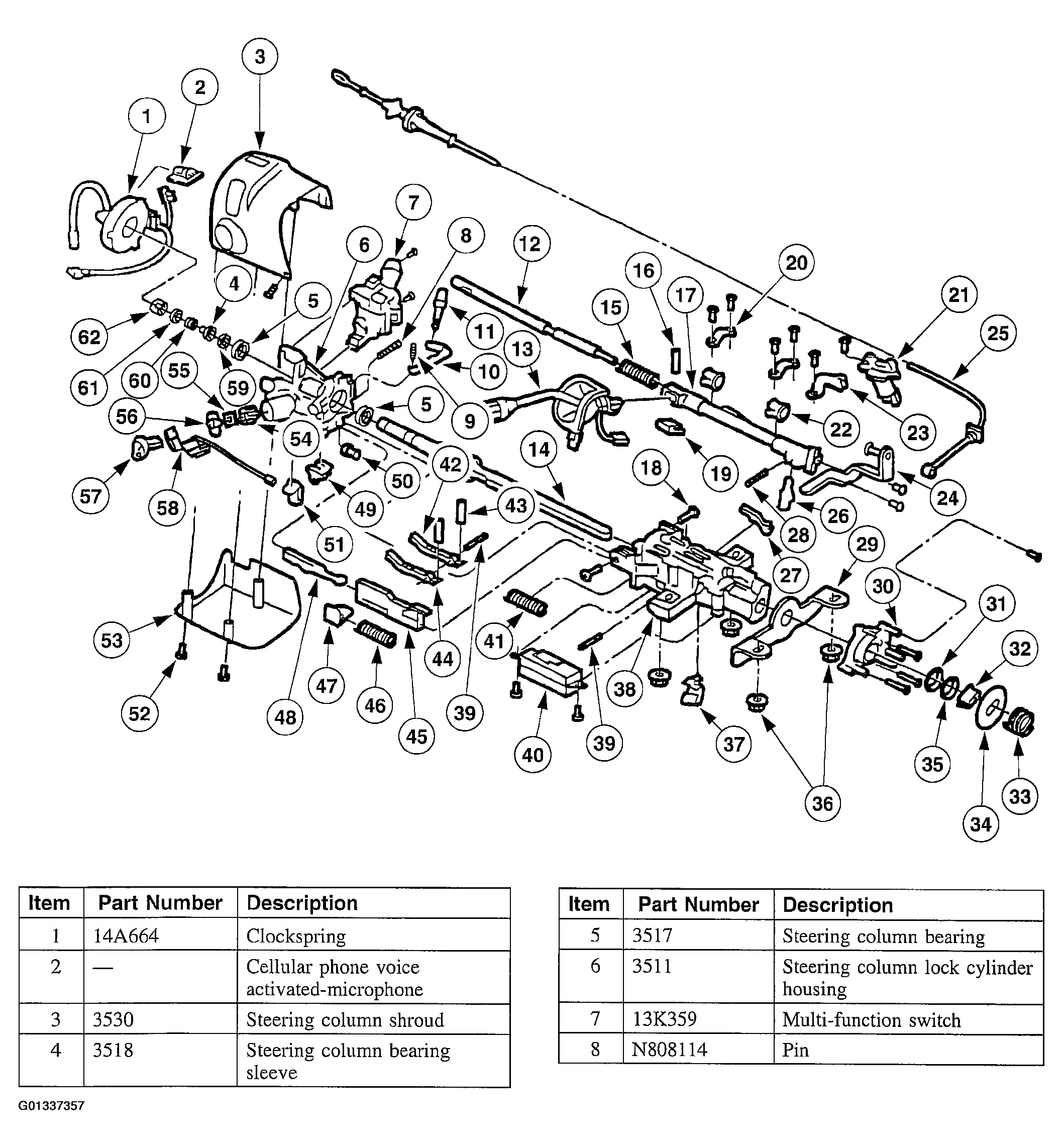

Fig 1: Steering Column
G01337357Courtesy of FORD MOTOR CO.

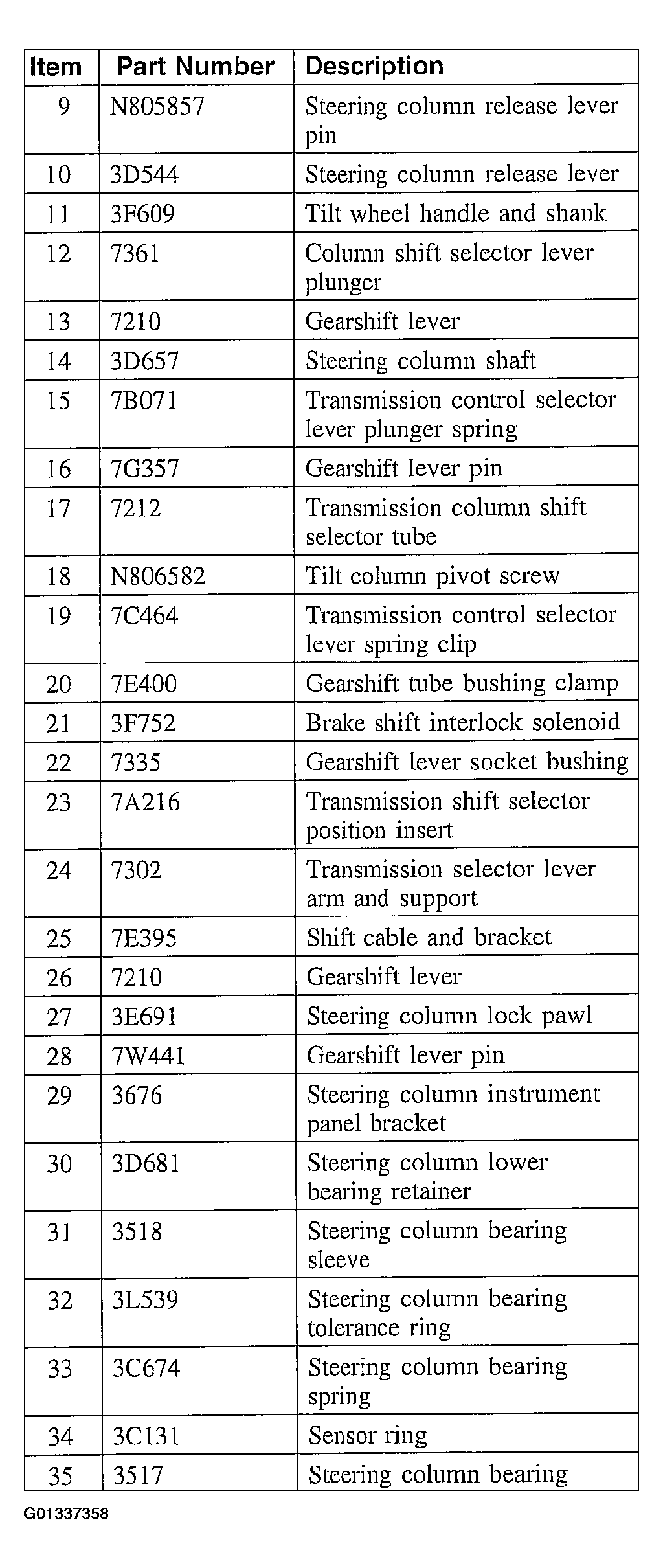

Fig 2: Steering Column Legend (1 Of 2)
G01337358Courtesy of FORD MOTOR CO.

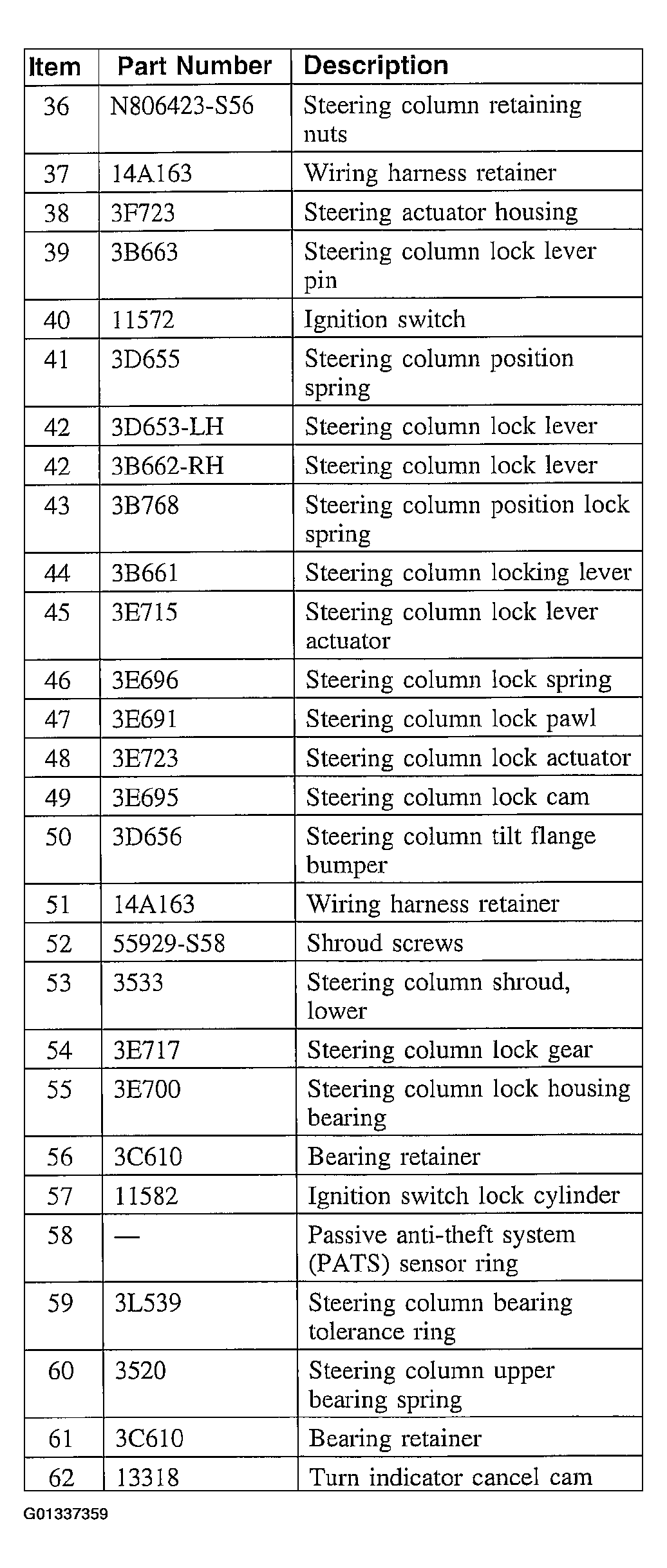

Fig 3: Steering Column Legend (2 Of 2)
G01337359Courtesy of FORD MOTOR CO.

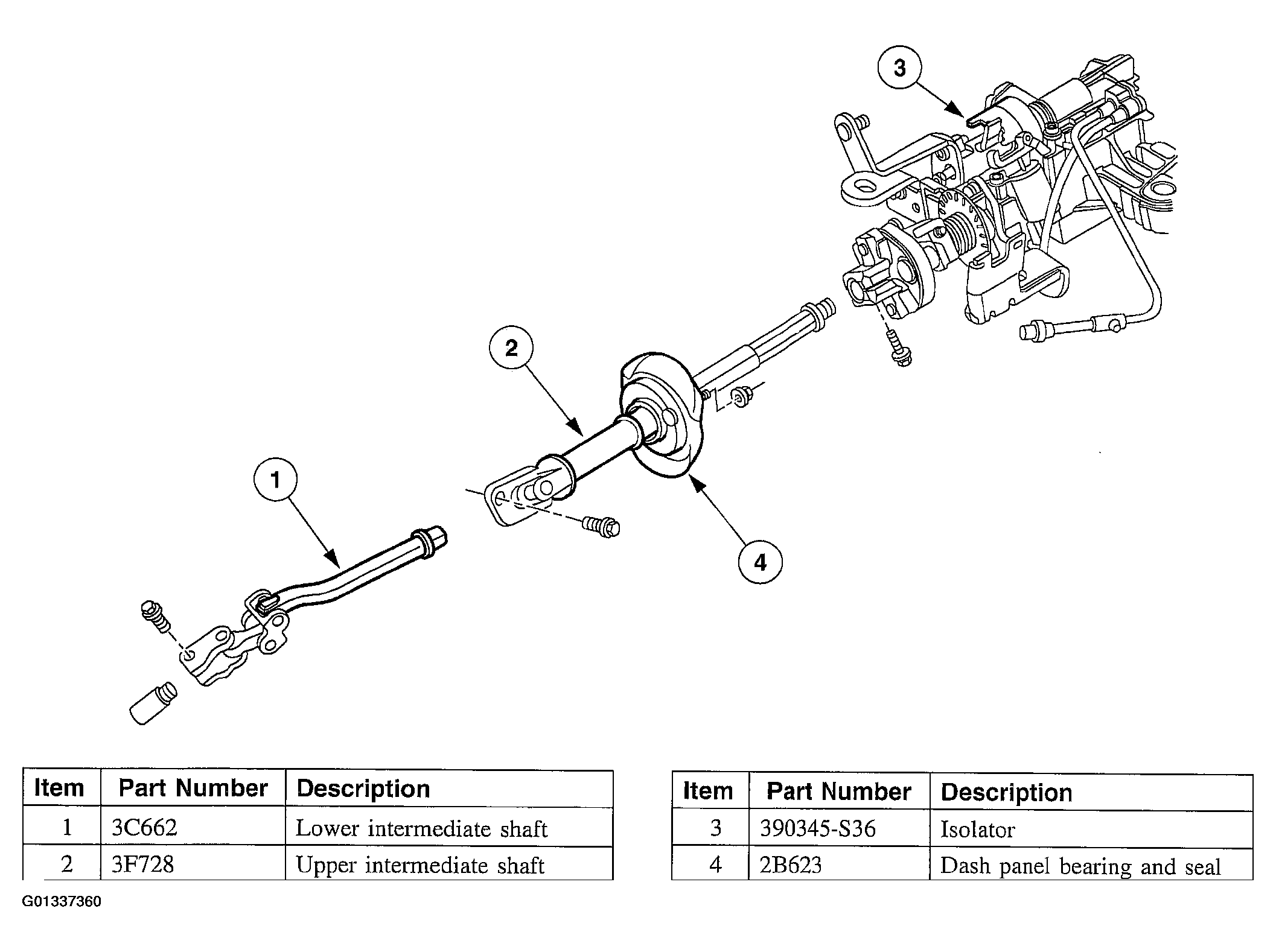

Fig 4: Intermediate Shaft Components
G01337360Courtesy of FORD MOTOR CO.
