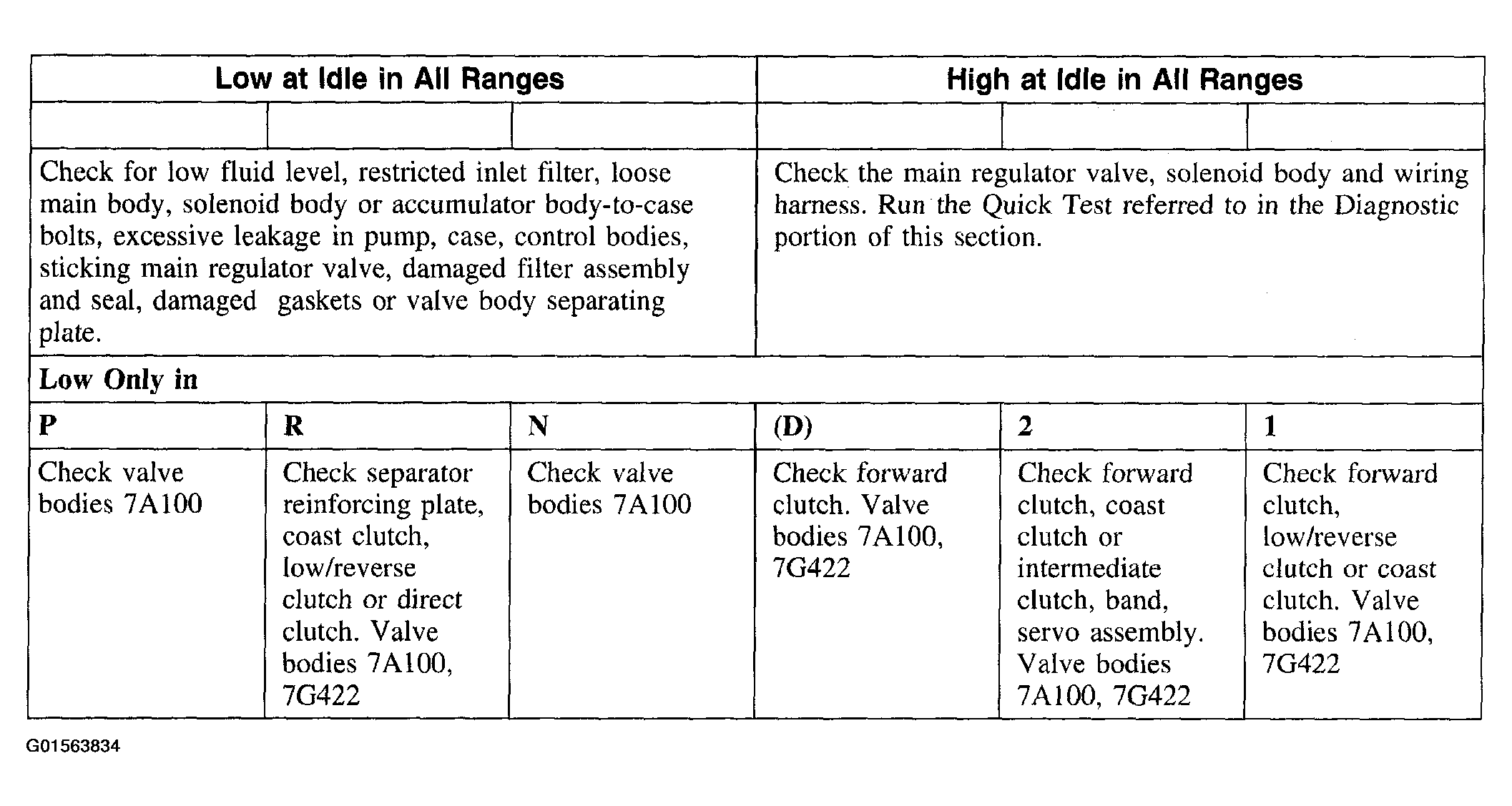

Line Pressure Diagnosis Chart
Fig 1: Identifying Line Pressure Diagnosis Chart
Courtesy of FORD MOTOR CO.
