Diagnostic Table

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The following table is used to guide diagnosis of the refrigerant system if operating pressures are outside normal limits.

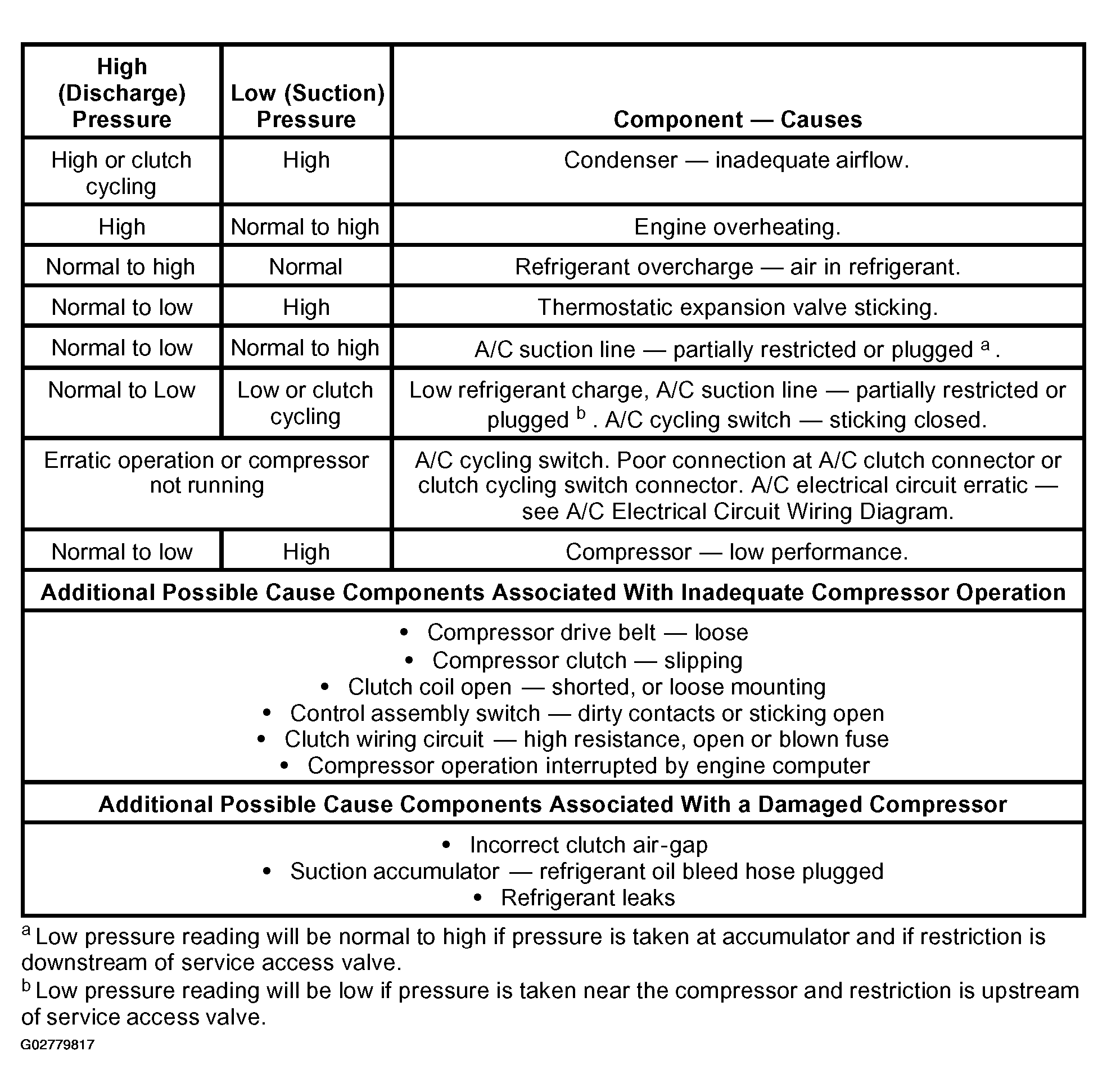

    Fig 1: Refrigerant System Diagnostic Chart
    G02779817Courtesy of FORD MOTOR CO.
  1. Refer to the chart below.
