Removal and Installation

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery negative cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the anti-lock brake control module electrical connector.

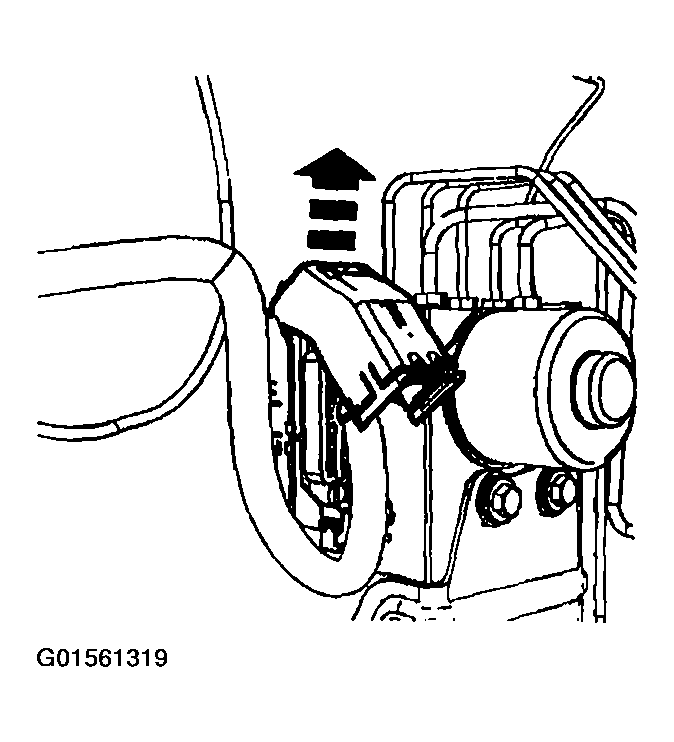

Fig 1: Disconnecting Anti-Lock Brake Control Module Electrical Connector
Courtesy of FORD MOTOR CO.

WARNING: Brake fluid contains polyglot ethers and polyglots. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

CAUTION: Only Ford authorized inlet hydraulic brake tubes should be used. These tubes are of specific design and only Ford authorized parts should be used when installing new inlet brake tubes.

NOTE: Plug each open port to prevent brake fluid from spilling.

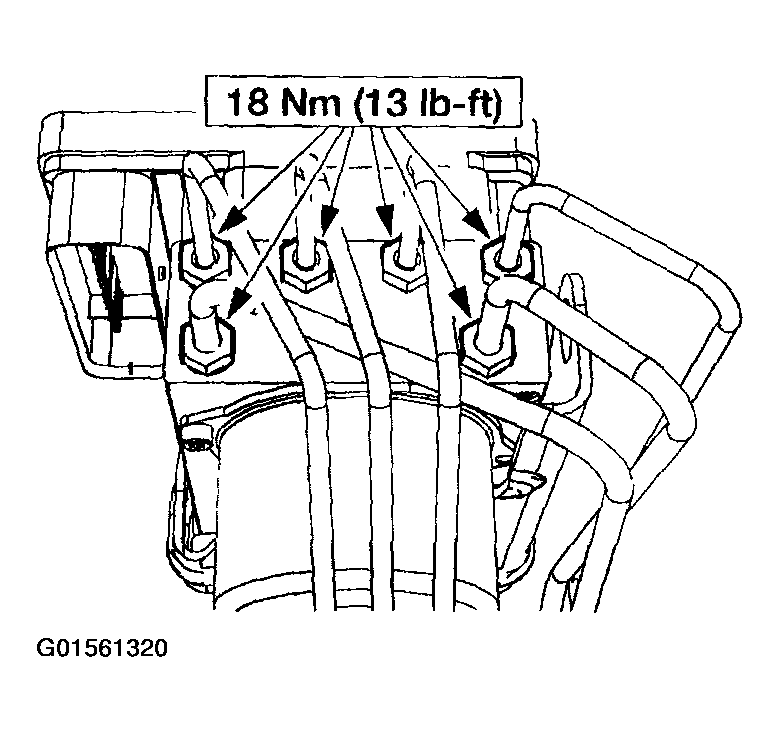

Fig 2: Disconnecting Hydraulic Brake Tubes

Courtesy of FORD MOTOR CO.

Disconnect the hydraulic brake tubes.
Remove the bolts and the hydraulic control unit (HCU).

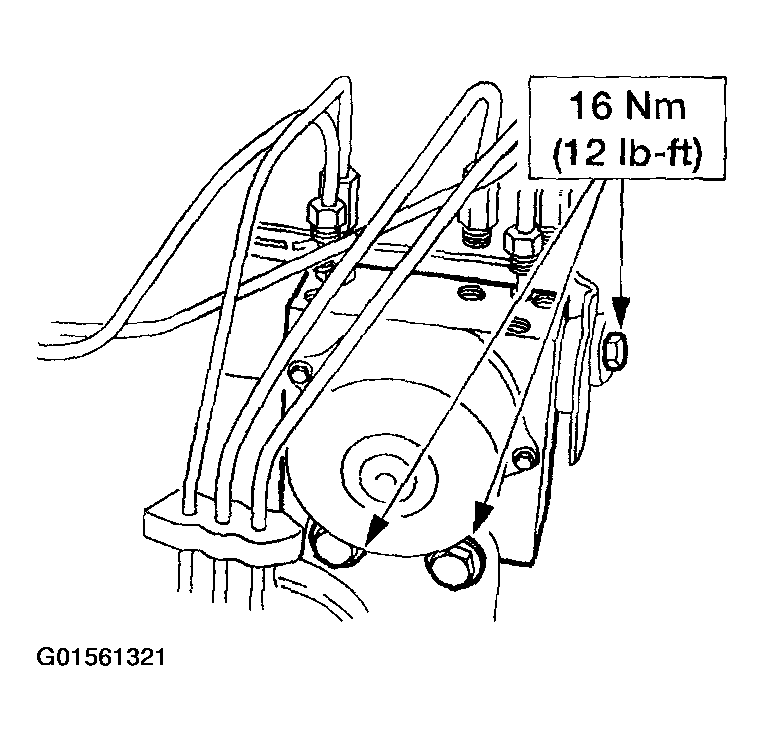

Fig 3: Removing Bolts And Hydraulic Control Unit (HCU)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure
- Bleed the brake system. For additional information, refer to BRAKE SYSTEM-GENERAL INFORMATION .
