Lumbar Motor: Installation

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the removal procedure.
  1. Install the power lumbar support motor.
    1. Install the dampening bag and install the power lumbar support motor.
    2. Install the screws.
    3. Connect the power lumbar electrical connector.

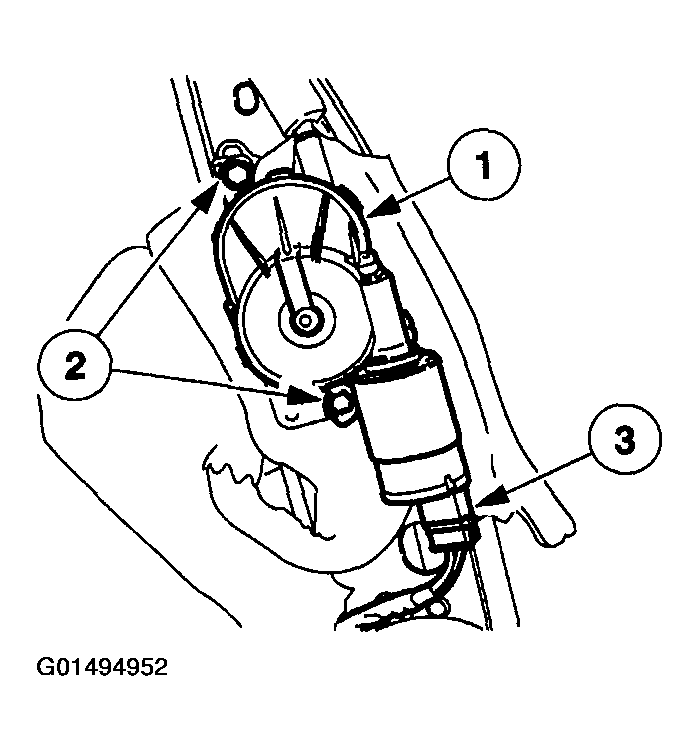

      Fig 1: Installing Power Lumbar Support Motor
      G01494952Courtesy of FORD MOTOR CO.
  2. Close the dampening bag and staple.

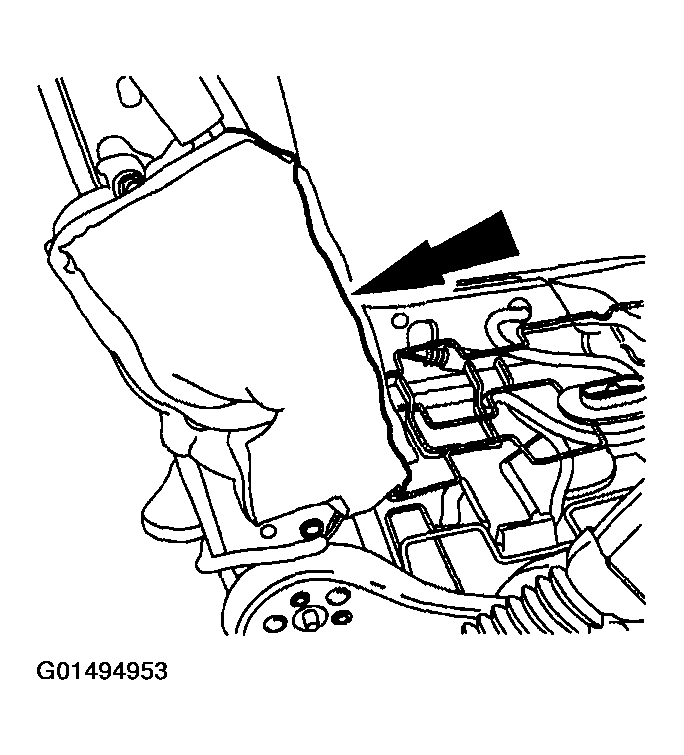

    Fig 2: Closing Dampening Bag And Staple
    G01494953Courtesy of FORD MOTOR CO.
  3. Install the lumbar motor cable to the lumbar support.
    1. Hook the lumbar support adjusting cable to the lumbar support.
    2. Flex the lumbar support.
    3. Install the lumbar support adjusting cable to the positioning spring.

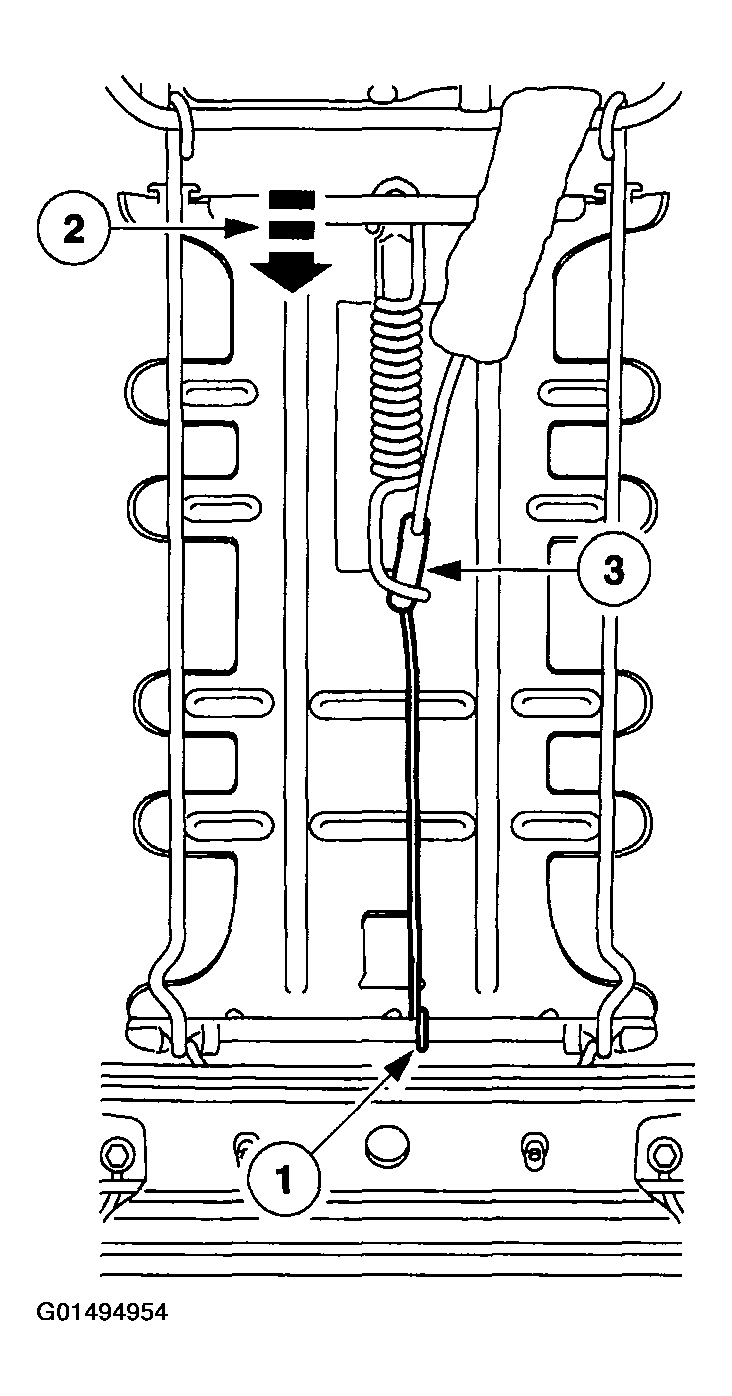

      Fig 3: Installing Lumbar Motor Cable To Lumbar Support
      G01494954Courtesy of FORD MOTOR CO.
  4. Install the lumbar motor support cover and install the screws for the support cover (two shown).

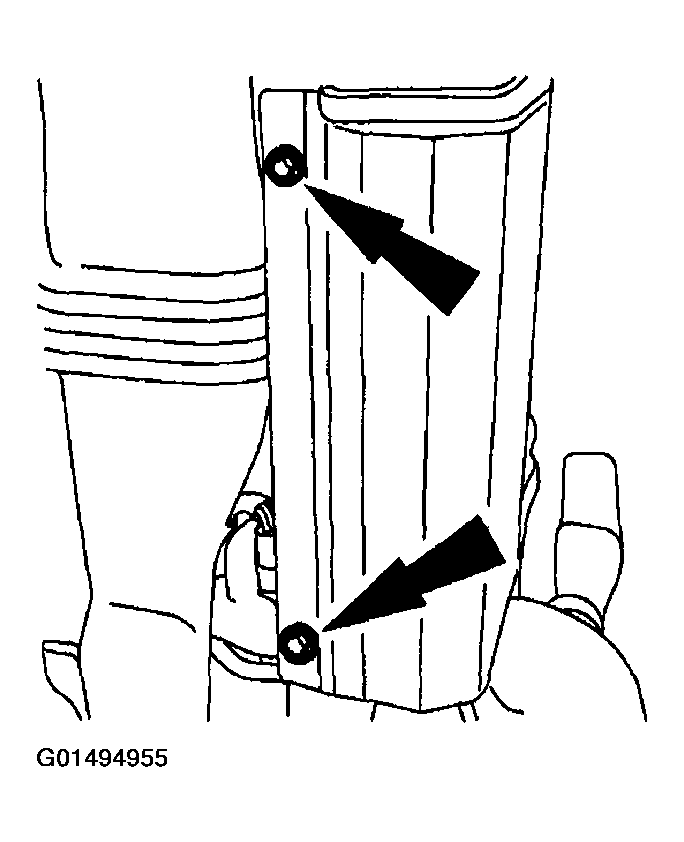

    Fig 4: Installing Lumbar Motor Support Cover And Screws For Support Cover
    G01494955Courtesy of FORD MOTOR CO.
  5. Install the seat backrest foam pad and attach the seat backrest TED to the foam pad.

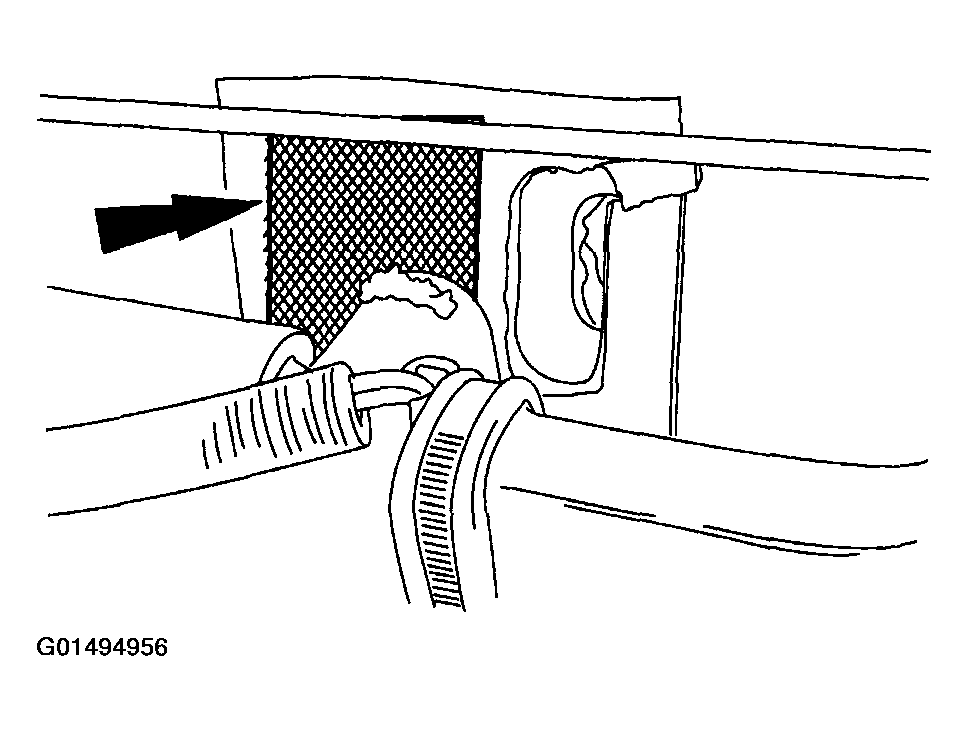

    Fig 5: Installing Seat Backrest Foam Pad And Attaching Seat Backrest Ted To Foam Pad
    G01494956Courtesy of FORD MOTOR CO.
  6. Install the seat backrest trim cover and attach the hook-and-loop fasteners to the foam pad.
    7. NOTE: The head restraint sleeve pins are not interchangeable.

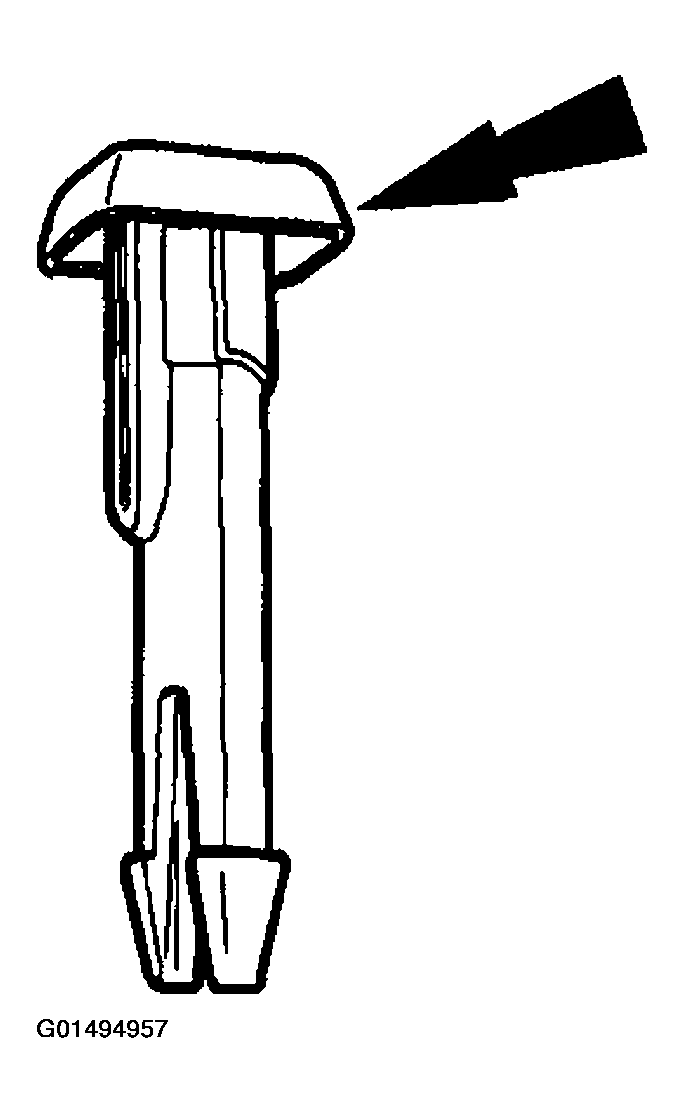

    Fig 6: Installing Head Restraint Sleeves
    G01494957Courtesy of FORD MOTOR CO.
  7. Install the head restraint sleeves.
  8. Install the head restraint.

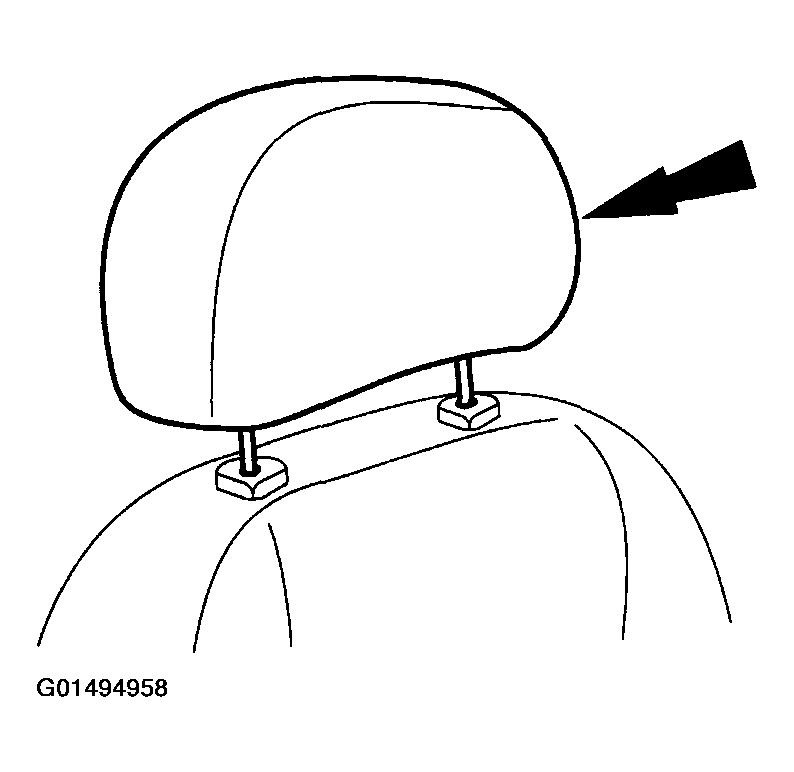

    Fig 7: Installing Head Restraint
    G01494958Courtesy of FORD MOTOR CO.
  9. Connect the one hook-and-loop strip and the one J-clip.

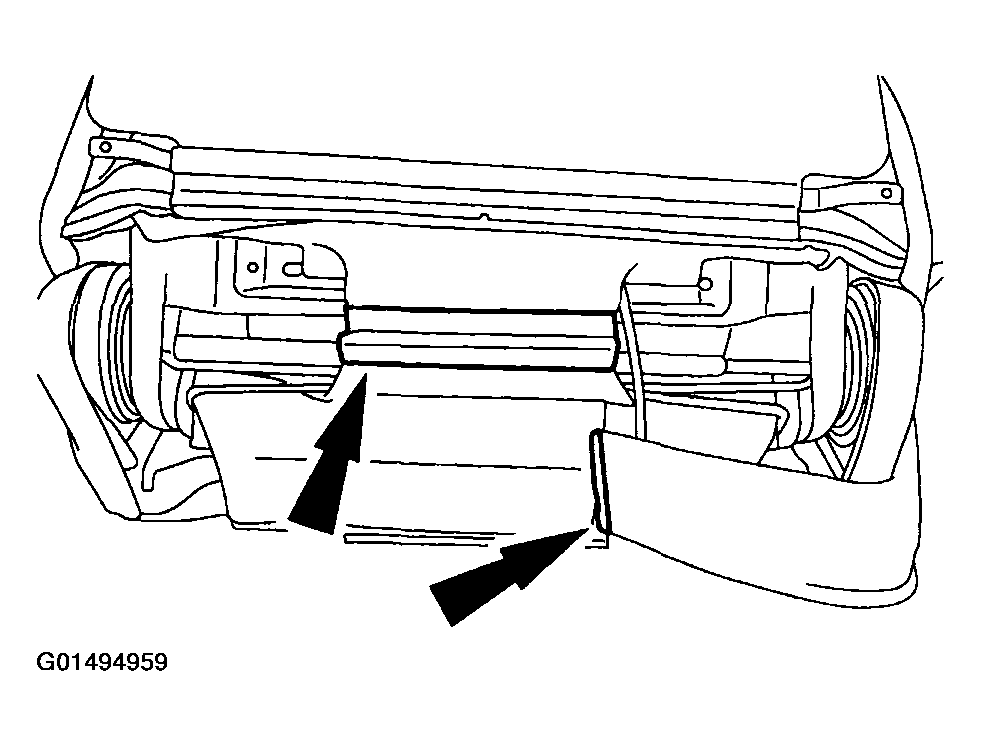

    Fig 8: Connecting Hook-And-Loop Strip And J-Clip
    G01494959Courtesy of FORD MOTOR CO.
  10. Install the two screws in the support rod.

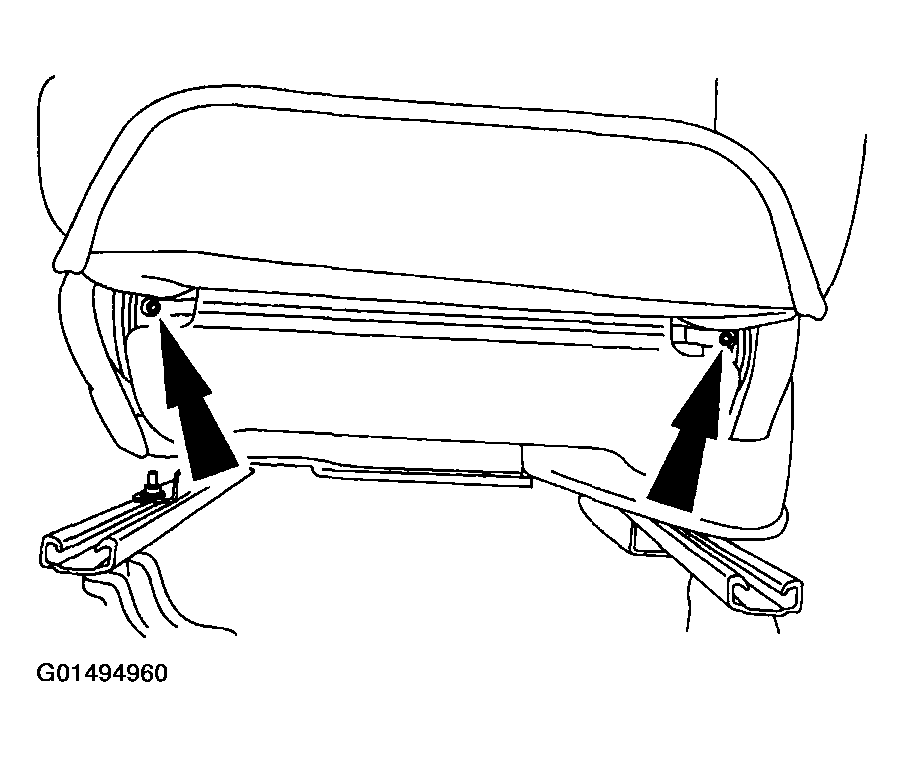

    Fig 9: Installing Screws In Support Rod
    G01494960Courtesy of FORD MOTOR CO.
  11. Install the lower backrest cover.

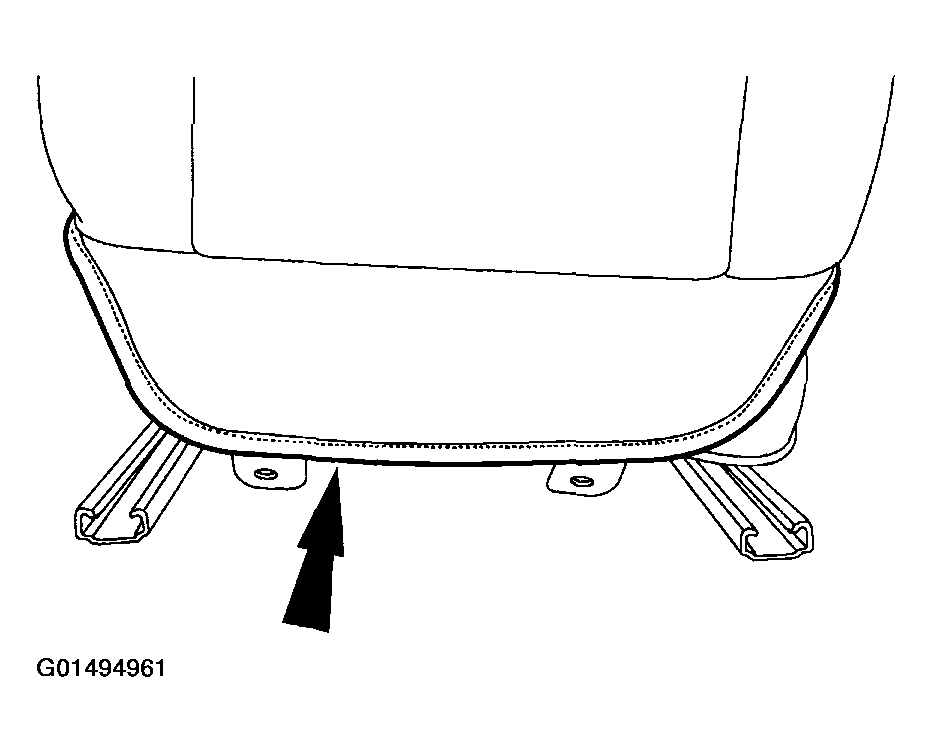

    Fig 10: Installing Lower Backrest Cover
    G01494961Courtesy of FORD MOTOR CO.
    12. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the front seat removal and installation procedure.
  12. Install the 40 percent seat. For additional information, refer to FRONT SEAT - 40 PERCENT .
    13. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
  13. Reactivate the supplemental restraint system (SRS). For additional information, AIR BAG RESTRAINT SYSTEMS .
    14. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
  14. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
