Front Seat Track Motor: Installation

Front Height Motor

NOTE: If equipped with memory seat, install the sensor to the motor and connect the memory seat motor sensor electrical connector.
1. Install the front height motor.
   1. Install the front height motor.
   2. Install the roll pin.
   3. Install the roll pin.
   4. Connect the front height motor electrical connector.

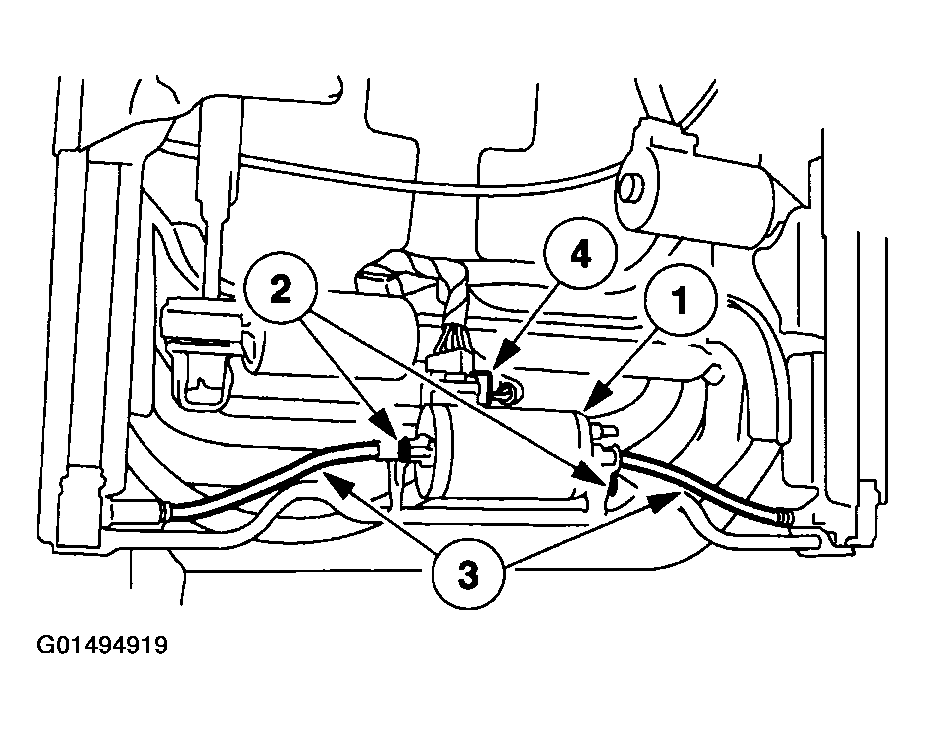

      Fig 1: Installing Front Height Motor

      Courtesy of FORD MOTOR CO.
2. If equipped, install the temperature controlled seat fan motor. For additional information, refer to SEAT FAN MOTOR .

   Rear Height Motor

NOTE: If equipped with memory seat, install sensor to the motor and connect the memory seat motor sensor electrical connector.
3. Install the rear height motor.
   1. Install the rear power seat motor.
   2. Install the bolt and nut.
   3. Install the roll pin.
   4. Connect the rear height motor electrical connector.

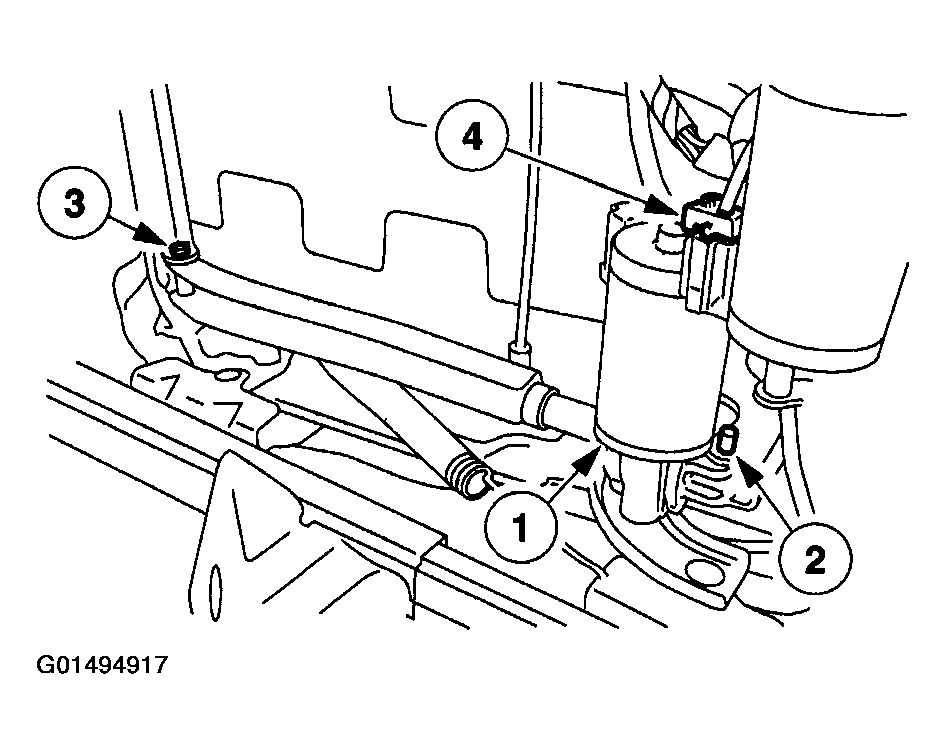

      Fig 2: Installing Rear Height Motor

      Courtesy of FORD MOTOR CO.

   Forward/Reverse Motor

NOTE: If equipped with memory seat, install sensor to the motor and connect the memory seat motor sensor electrical connector.
4. Install the forward/reverse motor.
   1. Install the forward/reverse power seat motor.
   2. Install the four screws (two shown).
   3. Install the power seat motor cables.
   4. Connect the forward/reverse motor electrical connector.

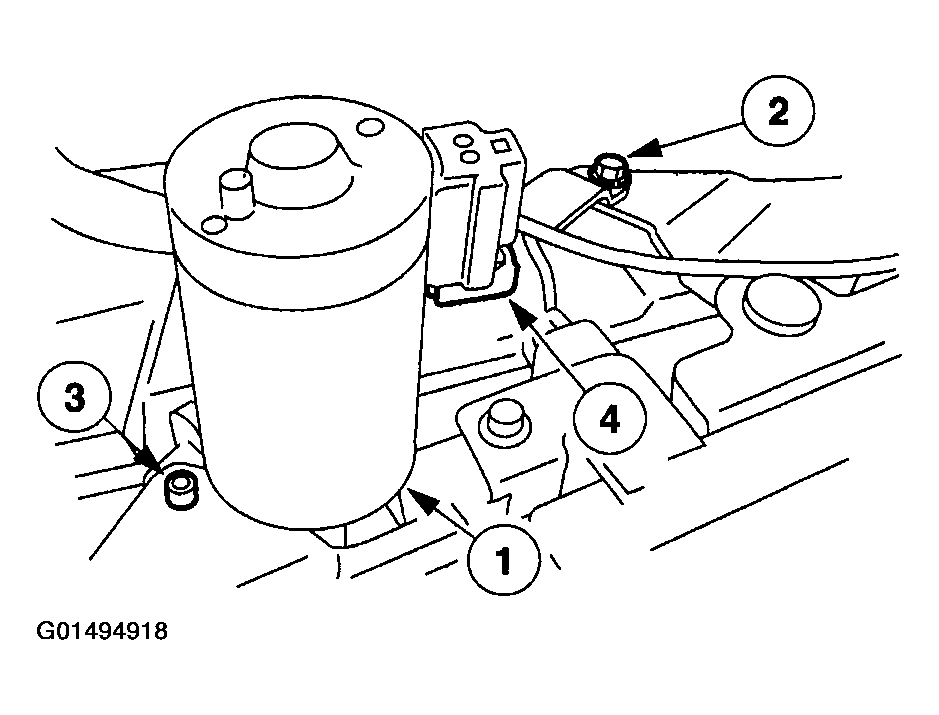

      Fig 3: Installing Forward/Reverse Power Seat Motor

      Courtesy of FORD MOTOR CO.

   All Motors

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the front seat removal and installation procedure.
5. Install the 40 percent seat. For additional information, refer to FRONT SEAT - 40 PERCENT .
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the supplemental restraint system (SRS) deactivation/reactivation procedure.
6. Reactivate the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
7. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
