Pinpoint Test C Chart: Speed Control Does Not Disengage When Brakes Are Applied

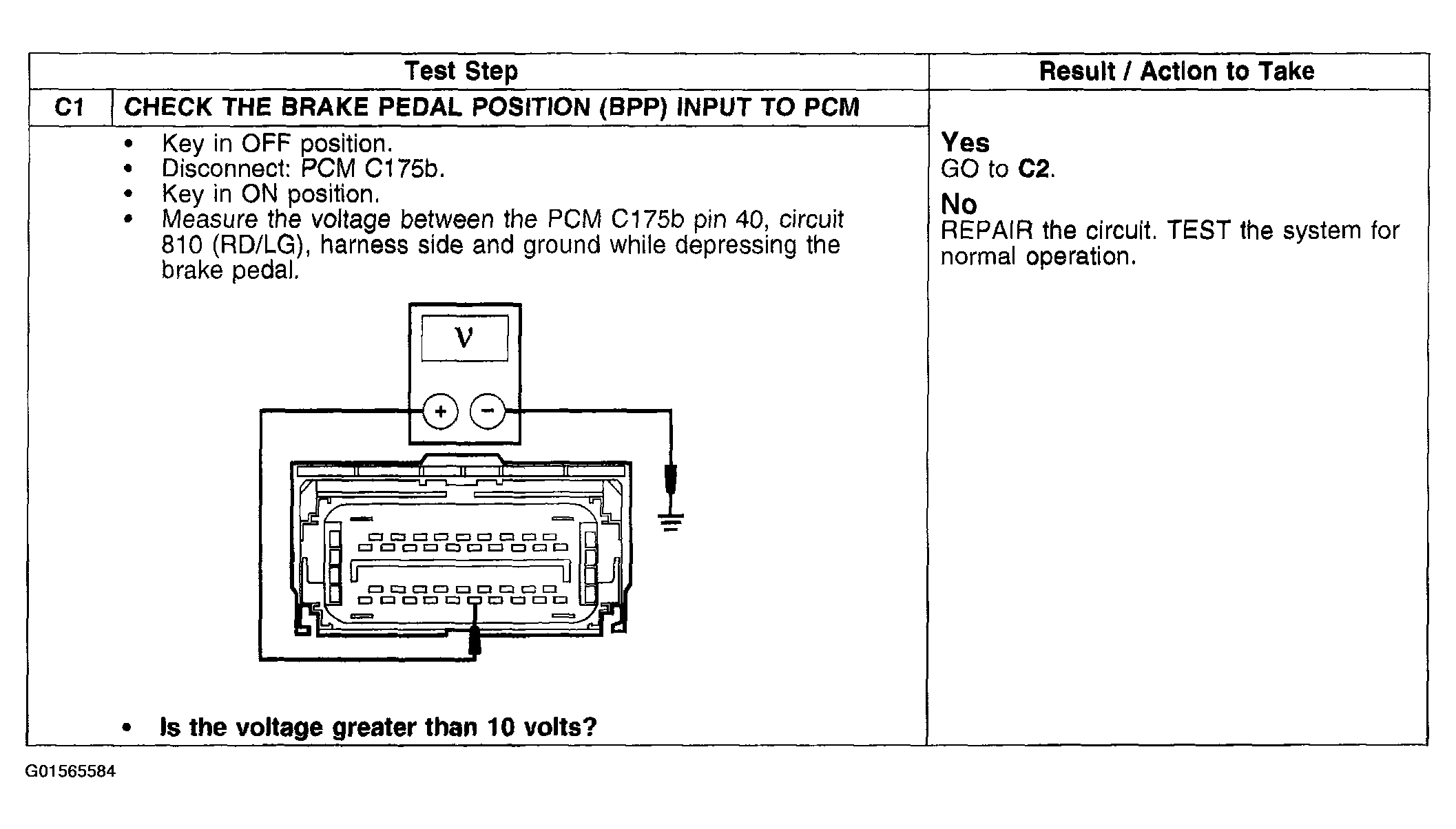

Fig 1: Pinpoint Test C Chart: Speed Control Does Not Disengage When Brakes Are Applied (C1)
G01565584Courtesy of FORD MOTOR CO.

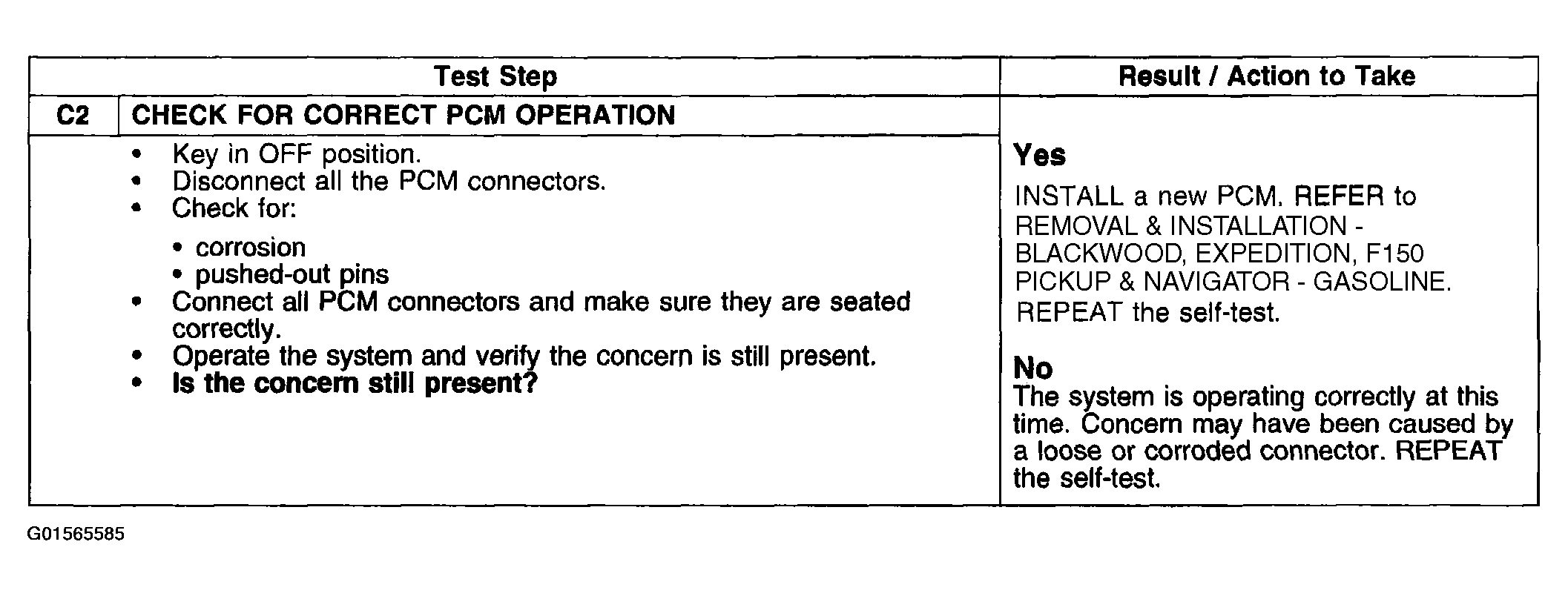

Fig 2: Pinpoint Test C Chart: Speed Control Does Not Disengage When Brakes Are Applied (C2)
G01565585Courtesy of FORD MOTOR CO.
