LH Front Window Control Switch C504a

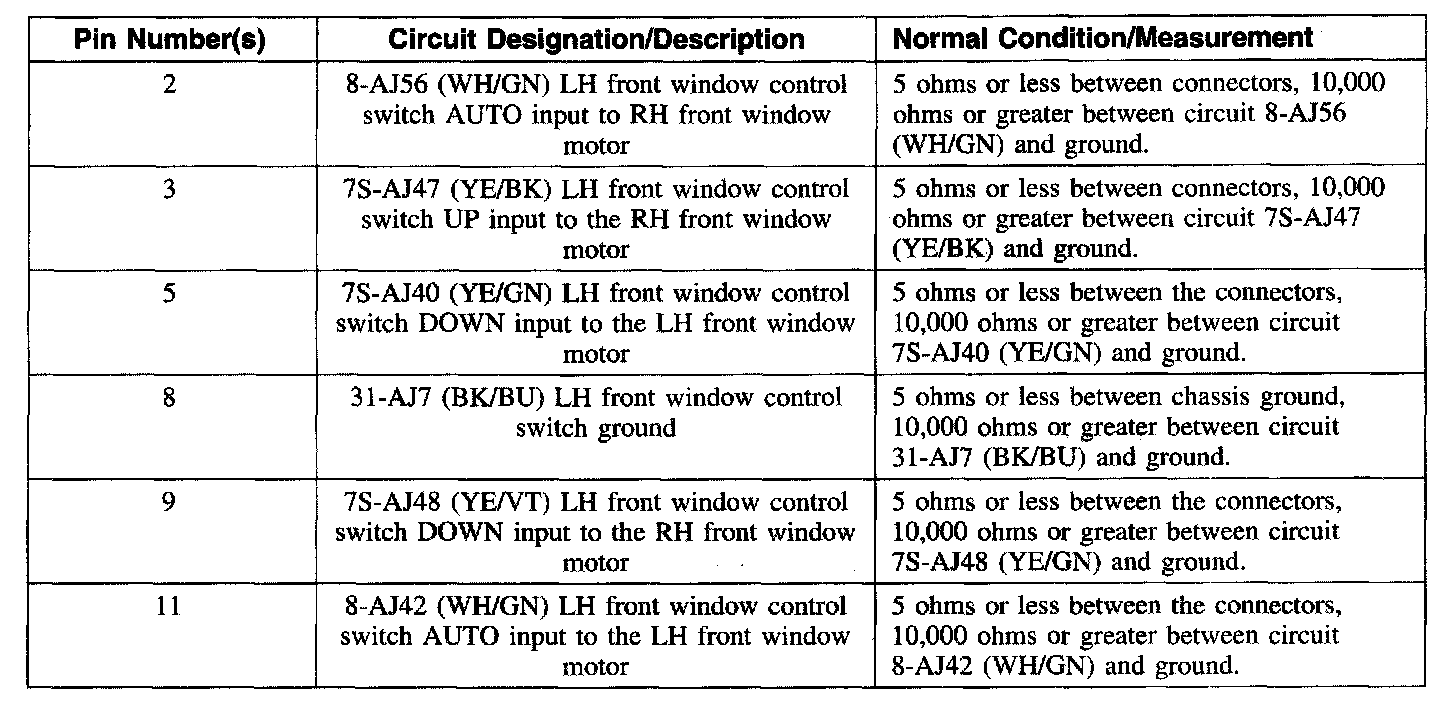

LH Front Window Control Switch C504a, Part 1:



LH Front Window Control Switch C504a, Part 2:
