Home >> Lincoln >> 2003 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> General Module >> Front Electronic Module (FEM)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

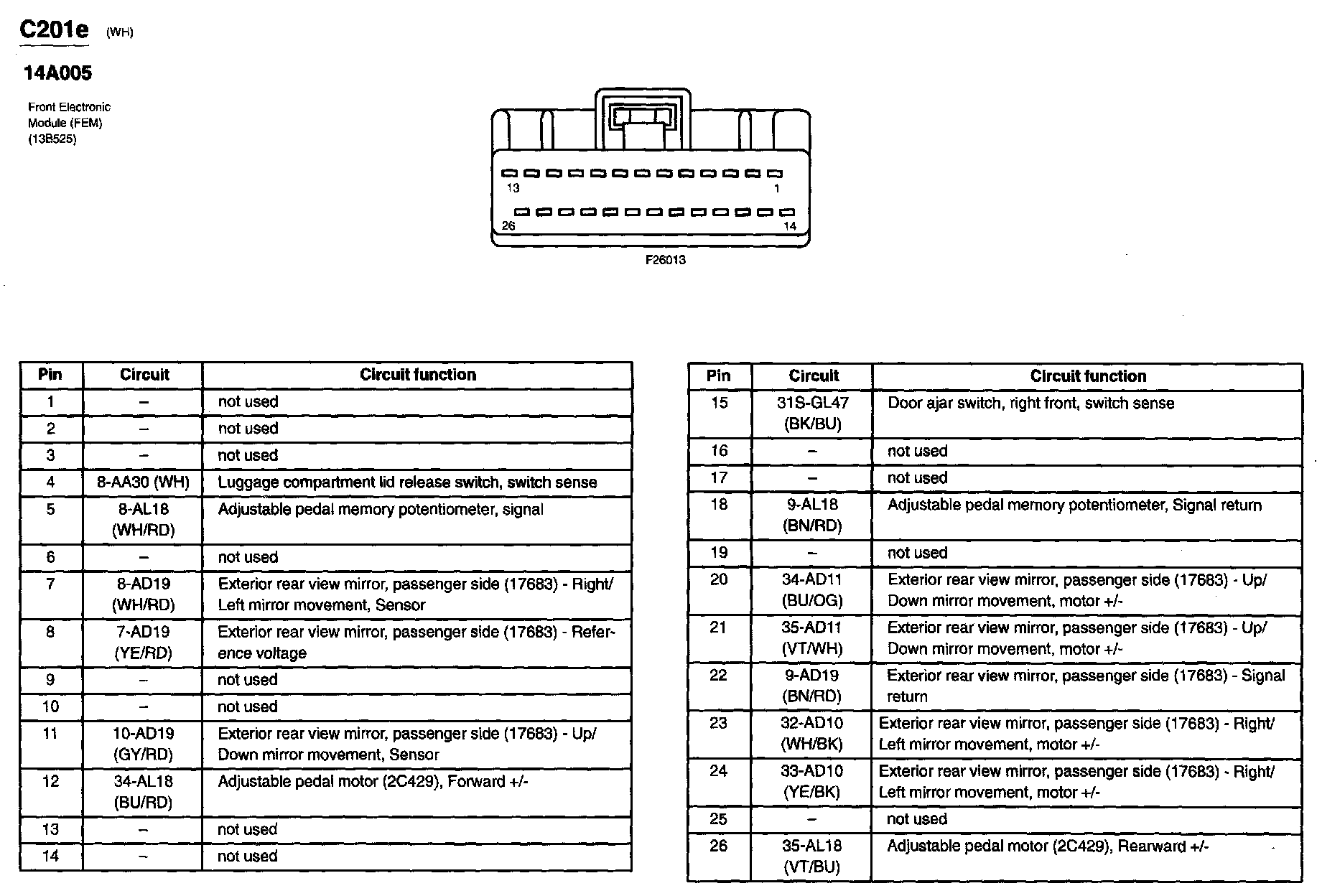

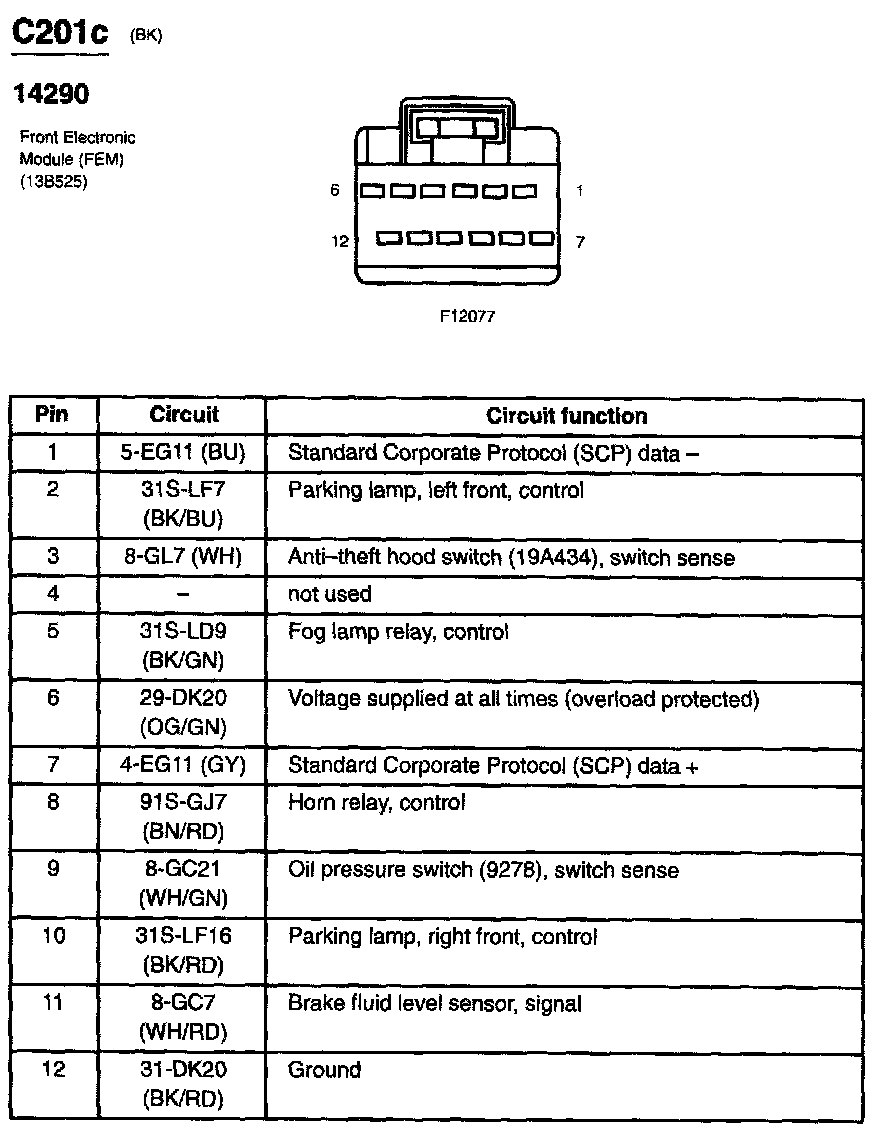

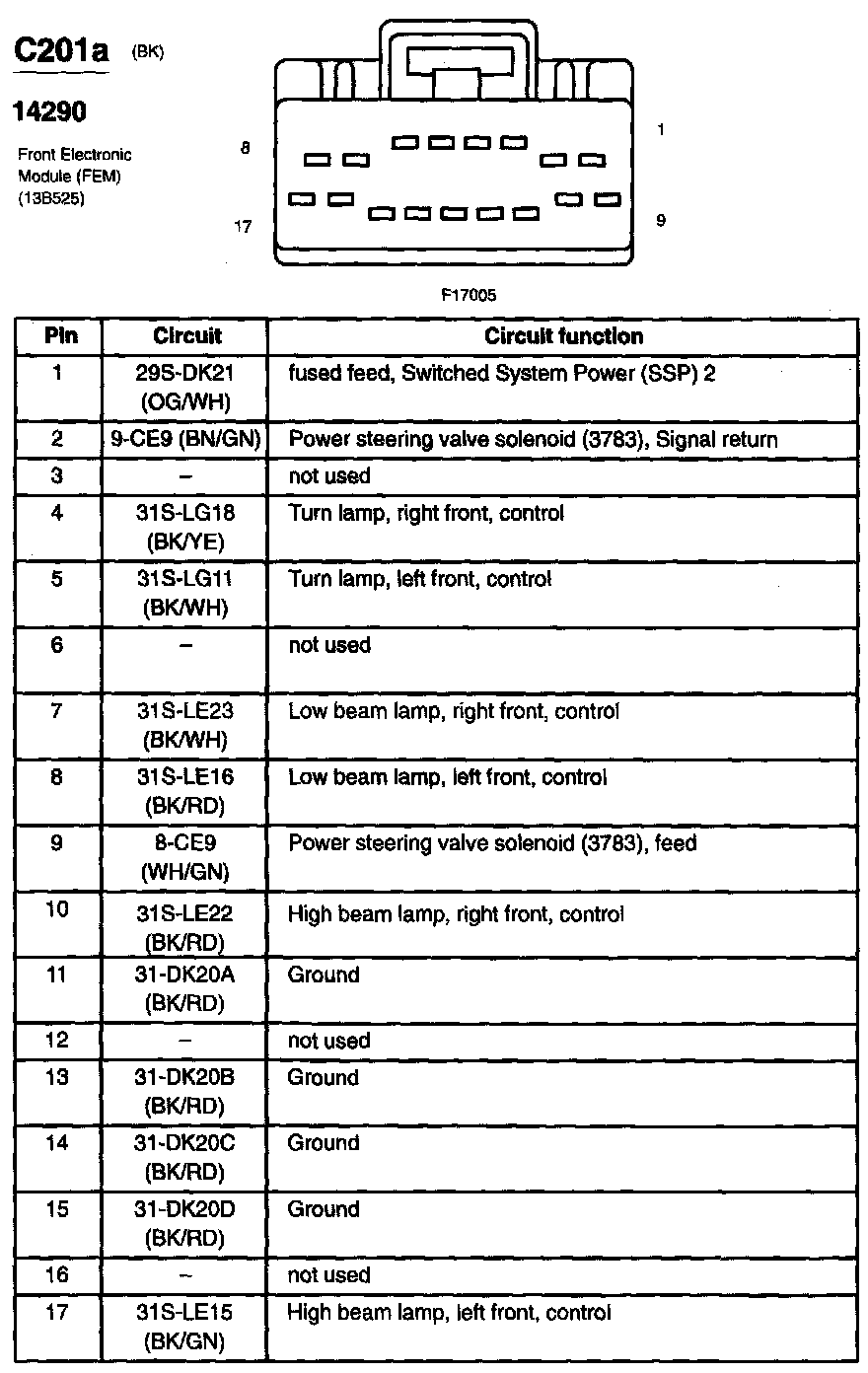

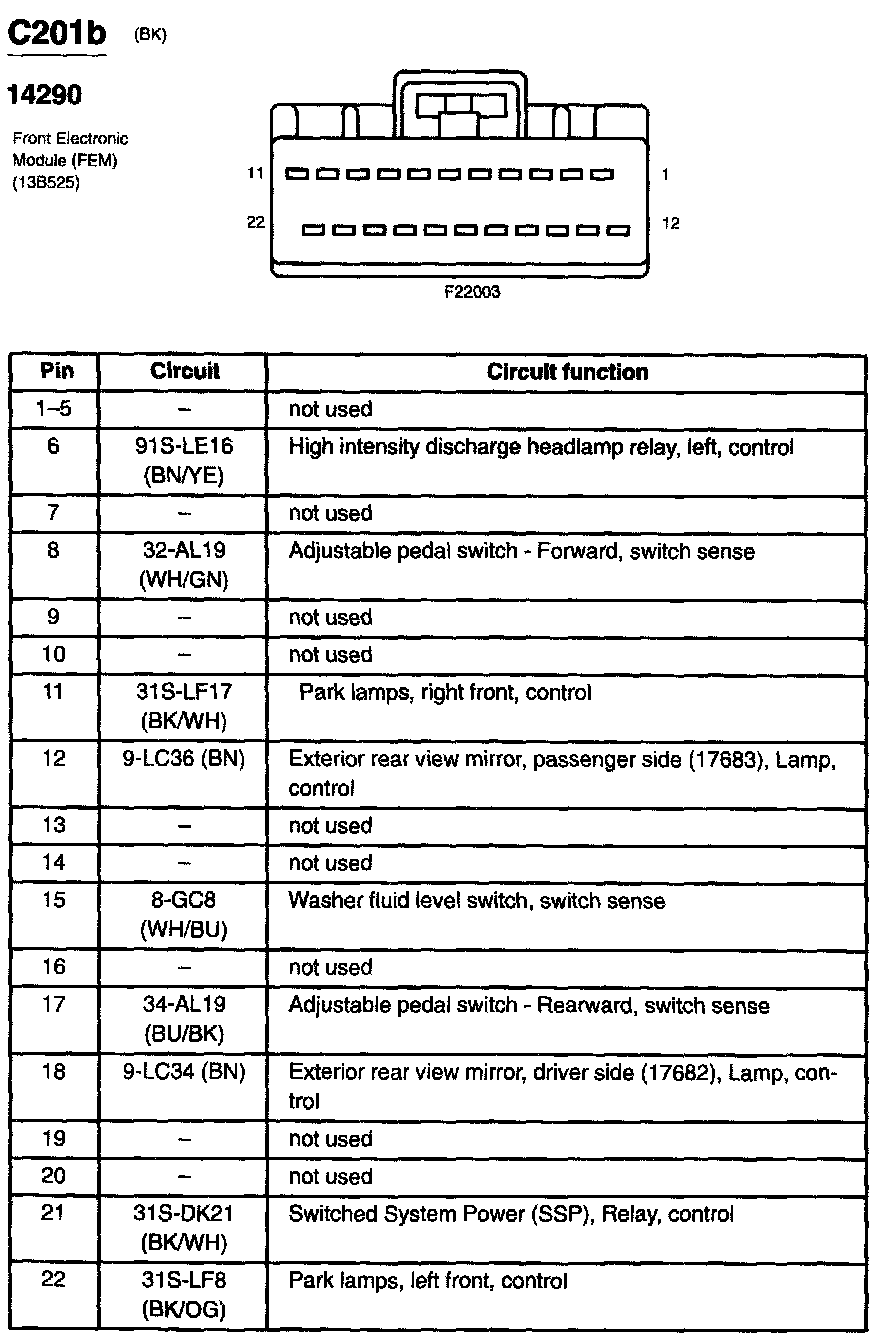

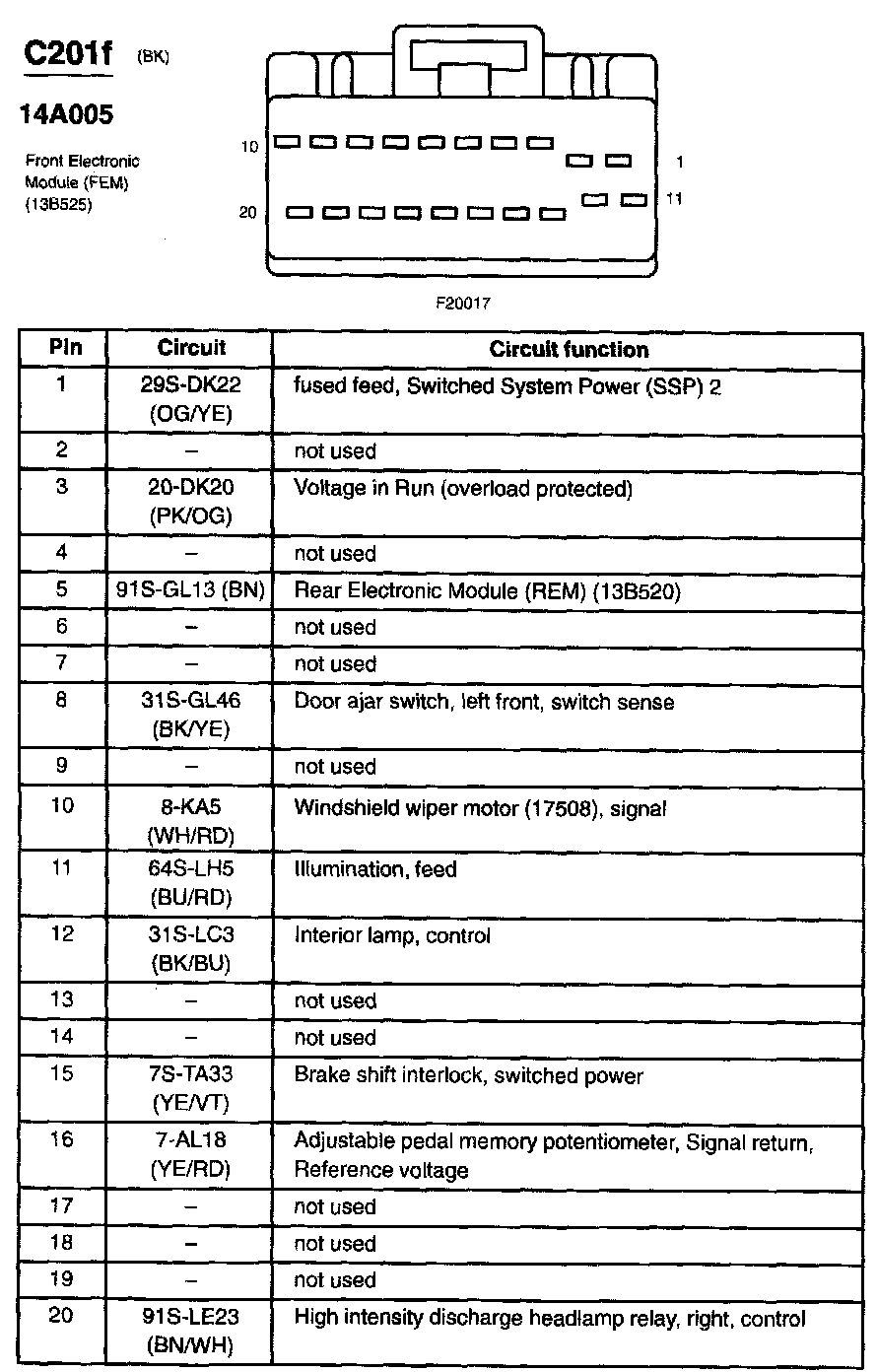

Front Electronic Module (FEM)
