Line Pressure Chart - 3.9L Engine

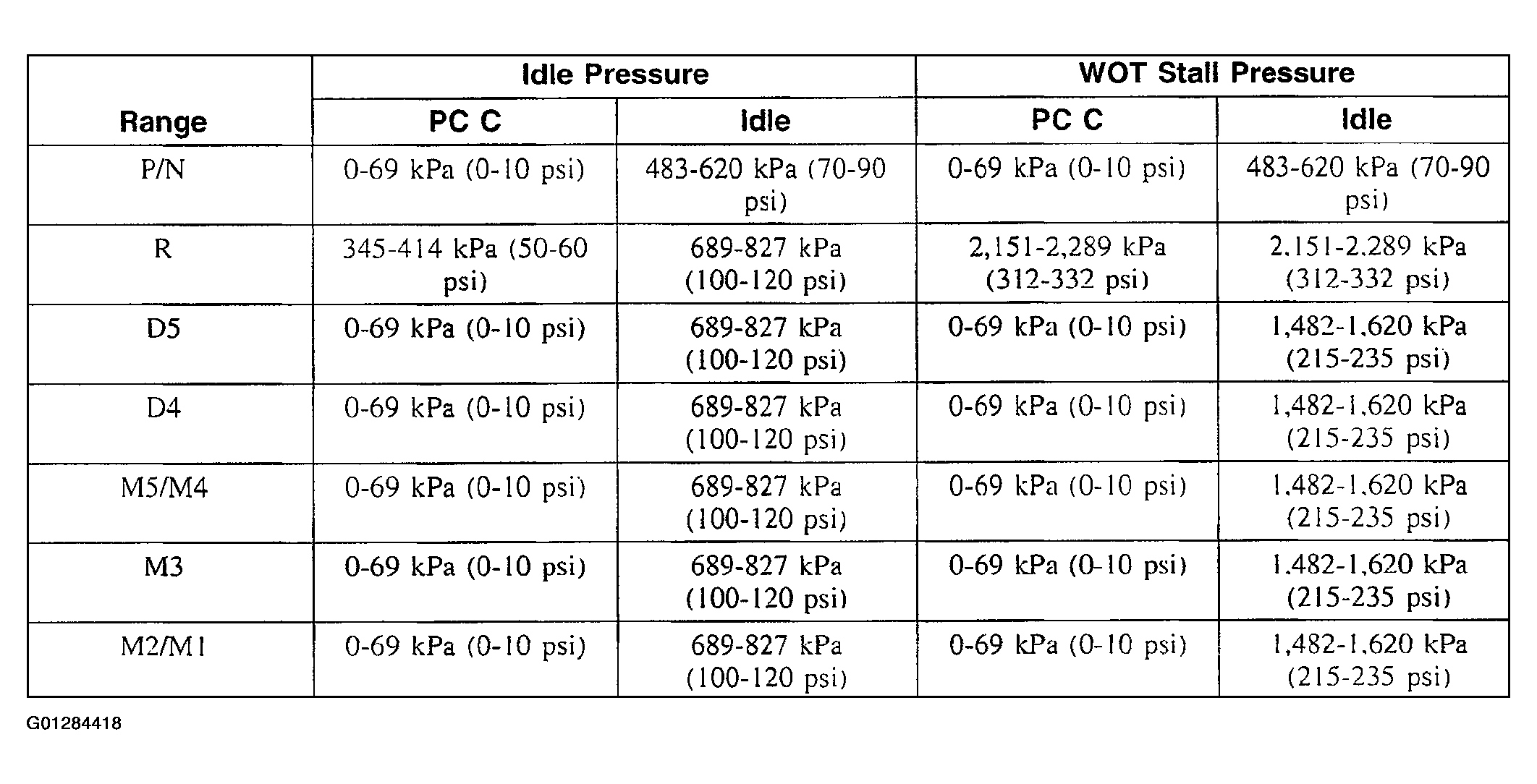

Fig 1: Line Pressure Chart - 3.9L Engine
Courtesy of FORD MOTOR CO.
