Item 17: Reverse Servo Screws Installation Note

  1. Install the reverse servo. Tighten the screws in the sequence shown.

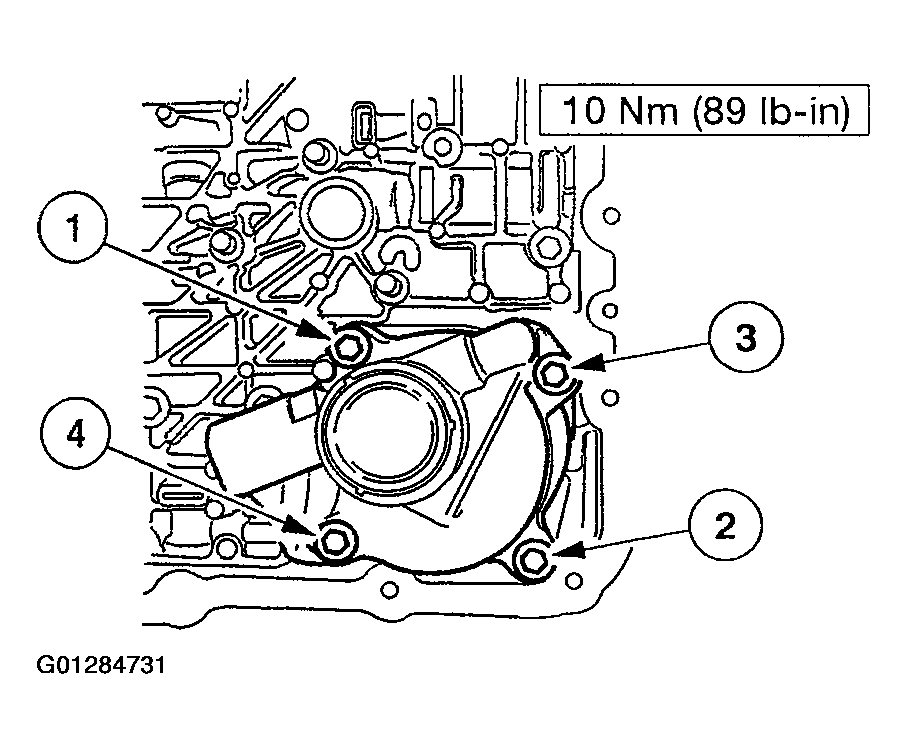

    Fig 1: Installing Reverse Servo
    G01284731Courtesy of FORD MOTOR CO.
