Item 23: Fuel Delivery Module Lock Ring Installation Note

  1. Using the special tool, install the fuel delivery module lock ring.

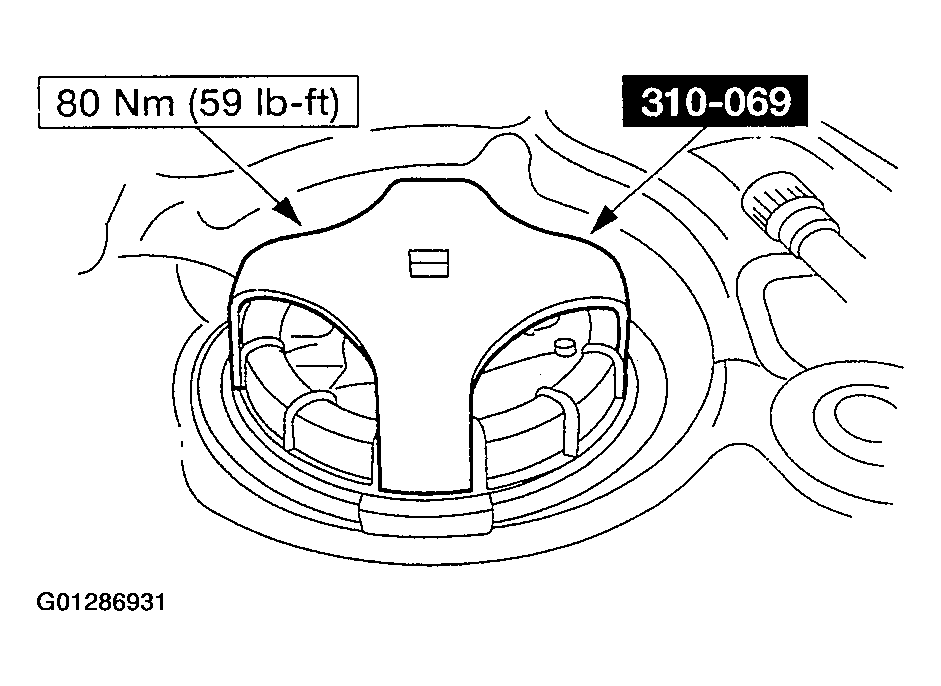

    Fig 1: Installing Fuel Delivery Module Lock Ring
    G01286931Courtesy of FORD MOTOR CO.
