Connector Reference and Terminal Readings

Fig 1: Identifying VAPS Module C2231a Connector Terminal
G01634255Courtesy of FORD MOTOR CO.

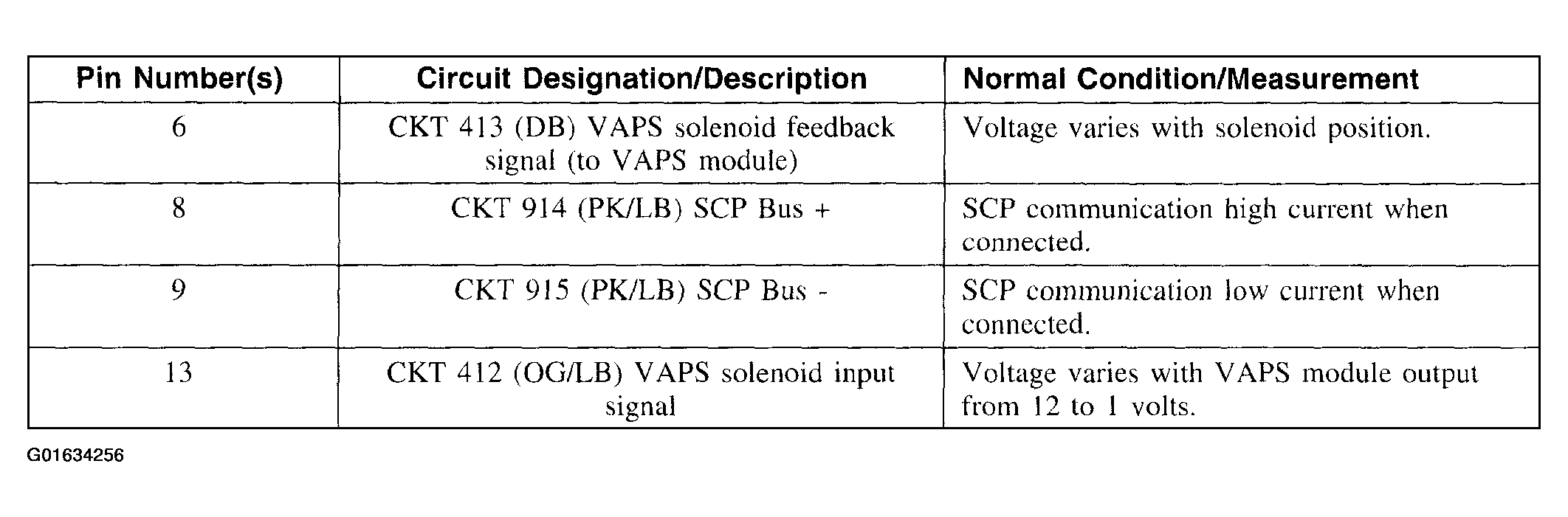

Fig 2: C2231a Connector Reference Table
G01634256Courtesy of FORD MOTOR CO.
Fig 3: Identifying VAPS Module C2231b Connector Terminal
G01634257Courtesy of FORD MOTOR CO.

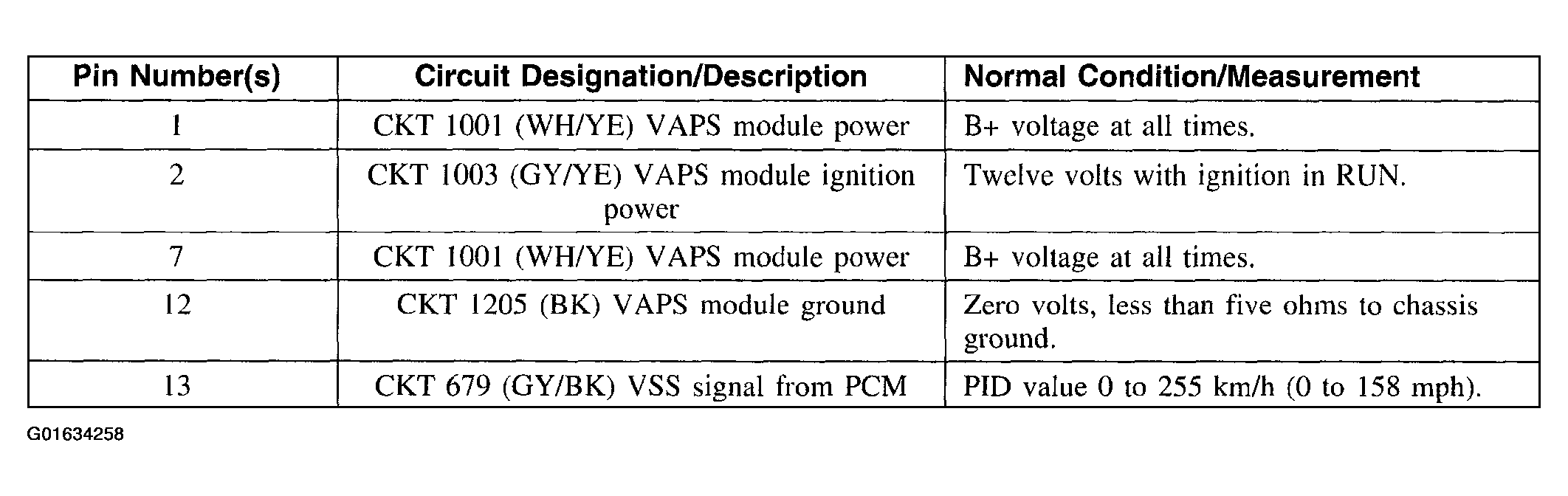

Fig 4: C2231b Connector Reference Table
G01634258Courtesy of FORD MOTOR CO.
Fig 5: Identifying VAPS Solenoid C120 Connector Terminal
G01634259Courtesy of FORD MOTOR CO.

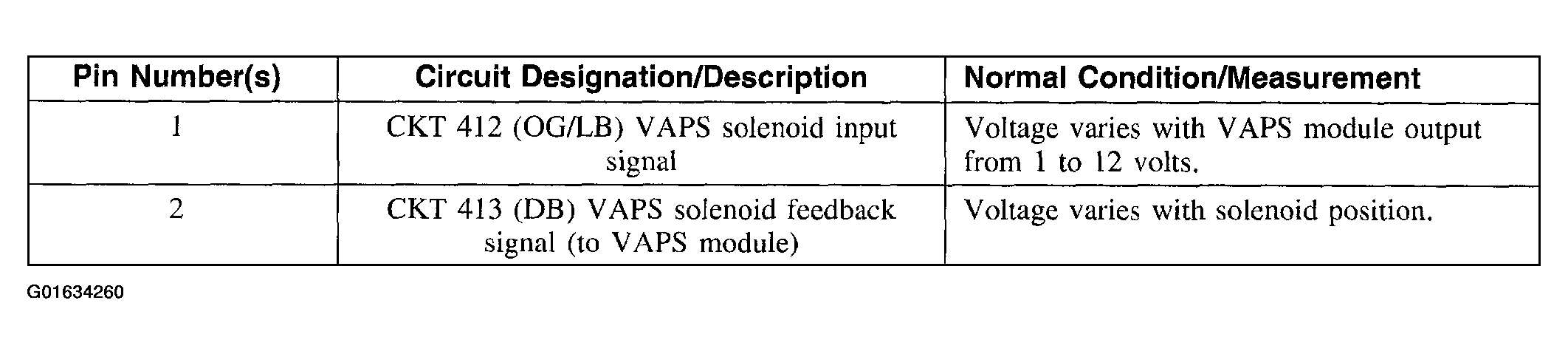

Fig 6: C120 Connector Reference Table
G01634260Courtesy of FORD MOTOR CO.
Fig 7: Identifying PCM C175a Connector Terminal
G01634261Courtesy of FORD MOTOR CO.
Fig 8: C175a Connector Reference Table
G01634262Courtesy of FORD MOTOR CO.
