Test Procedure

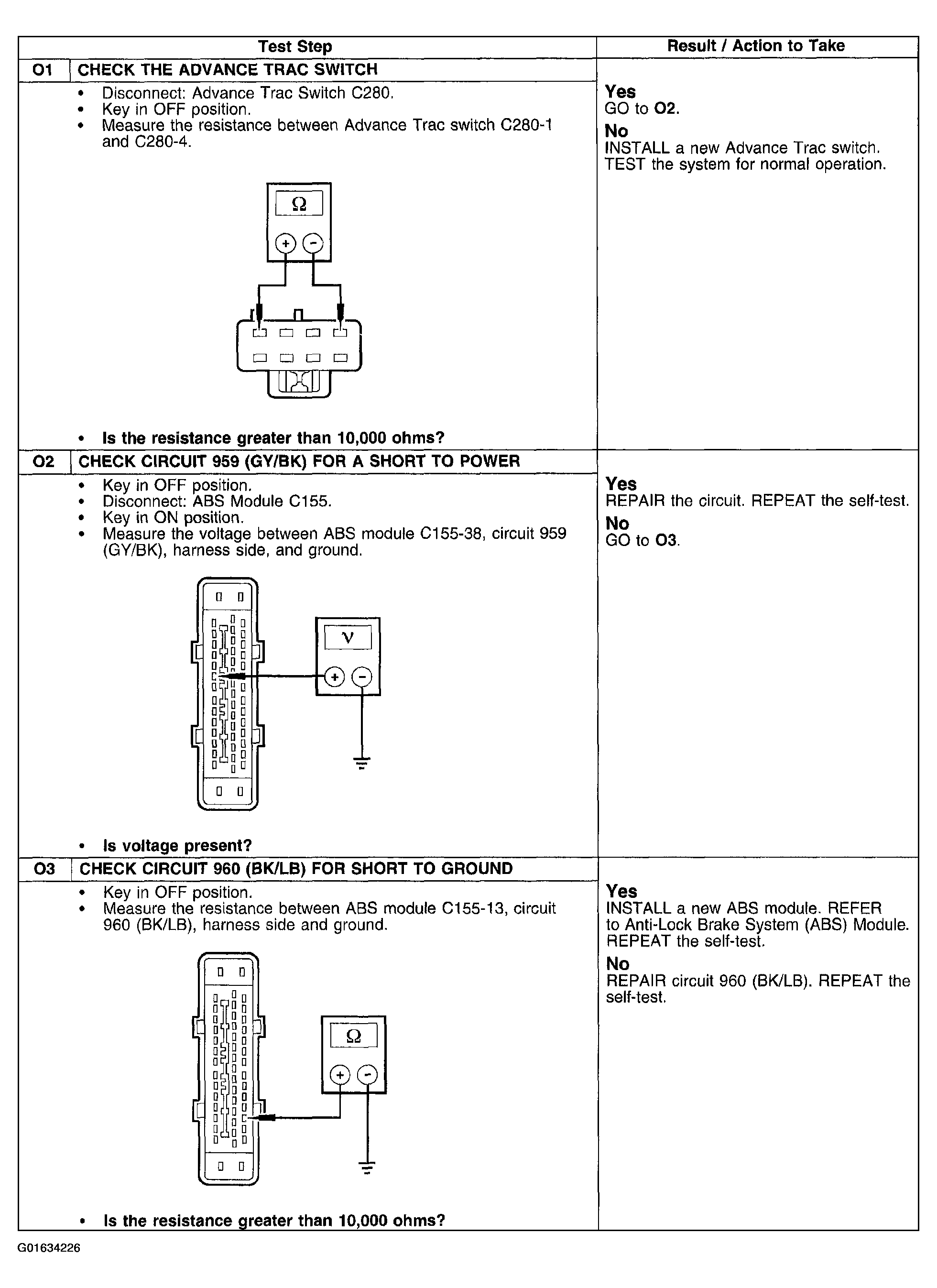

Fig 1: Pinpoint Test O: Advance Trac Cannot Be Disabled/Switch Indicator Is Always On
G01634226Courtesy of FORD MOTOR CO.
