Four-Wheel Drive Systems Component Location Index

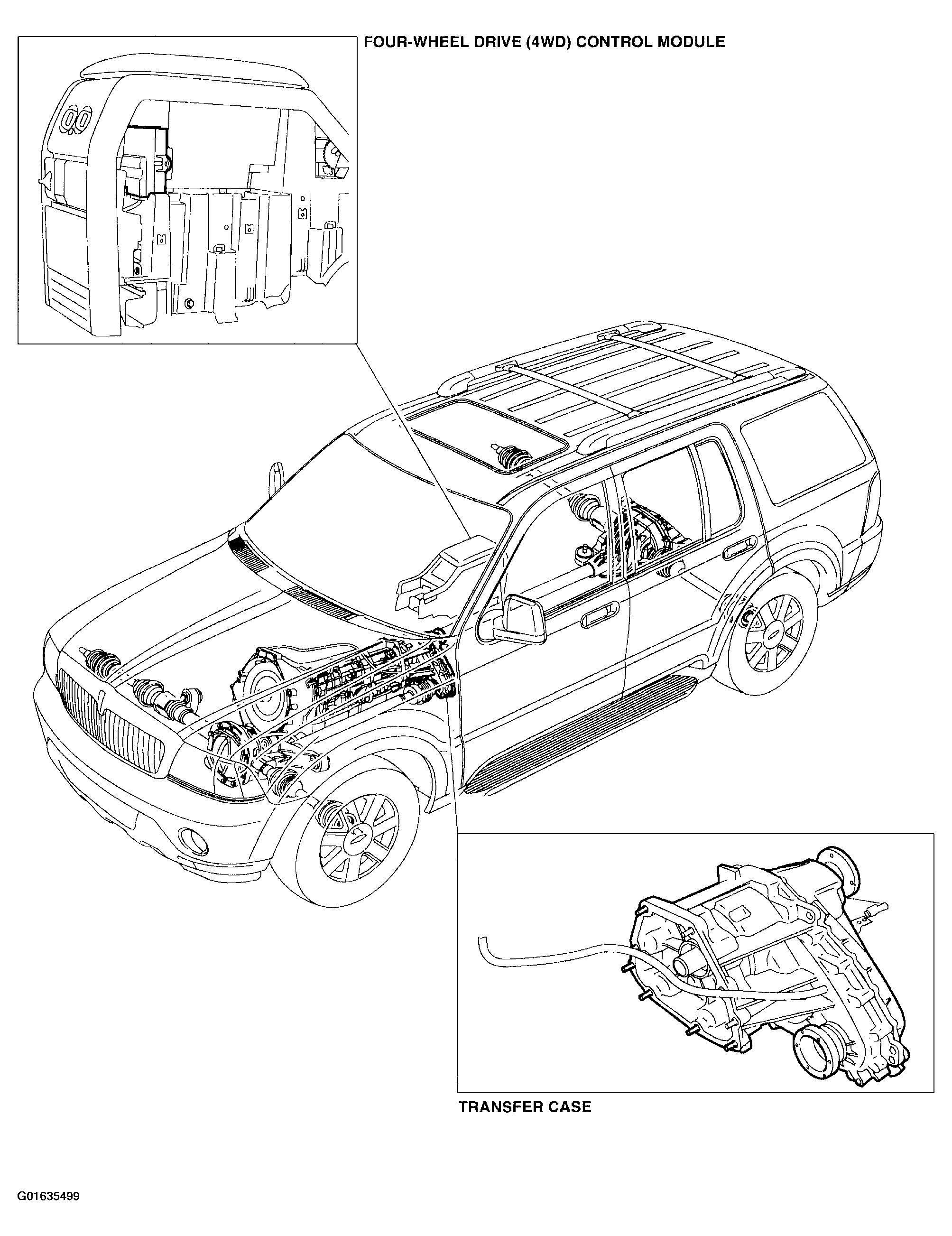

Fig 1: Locating Four-Wheel Drive System Components
G01635499Courtesy of FORD MOTOR CO.
