Digital Transmission Range (TR) Sensor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Digital Transmission Range (TR) Sensor

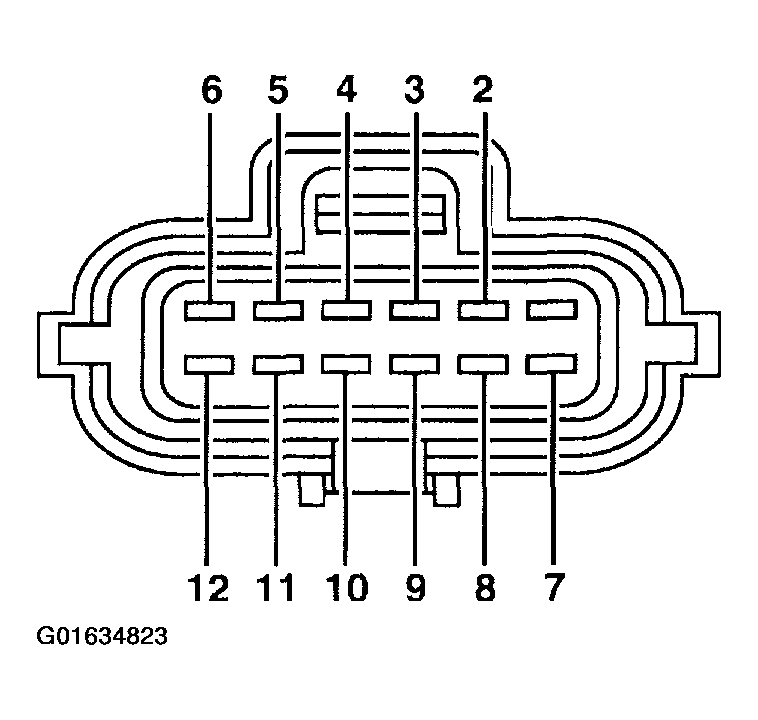

Fig 1: Identifying Digital Transmission Range (TR) Sensor Connector
Courtesy of FORD MOTOR CO.

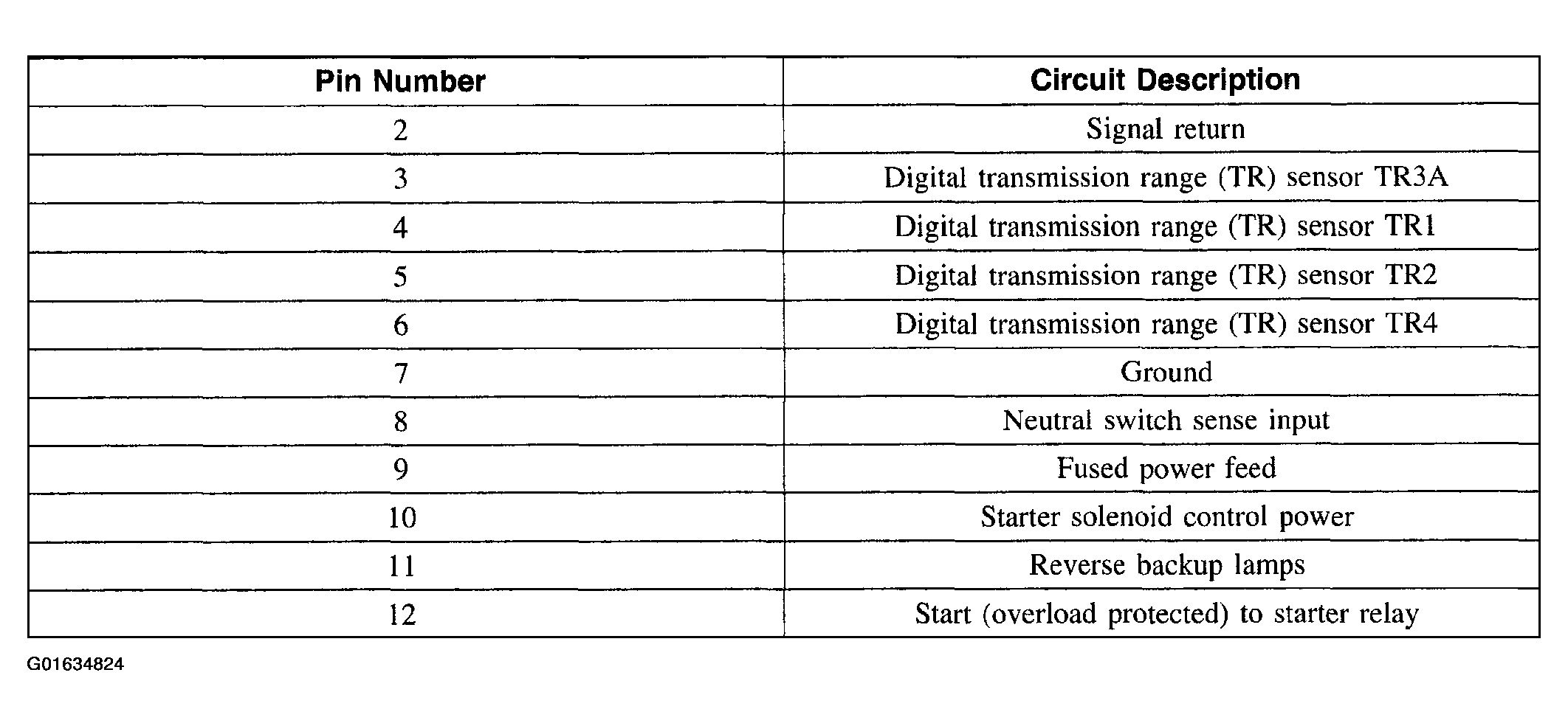

Fig 2: Identifying Digital Transmission Range (TR) Sensor Connector Terminal Pins
Courtesy of FORD MOTOR CO.
