Engine Coolant Temperature Sender Unit: Installation

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

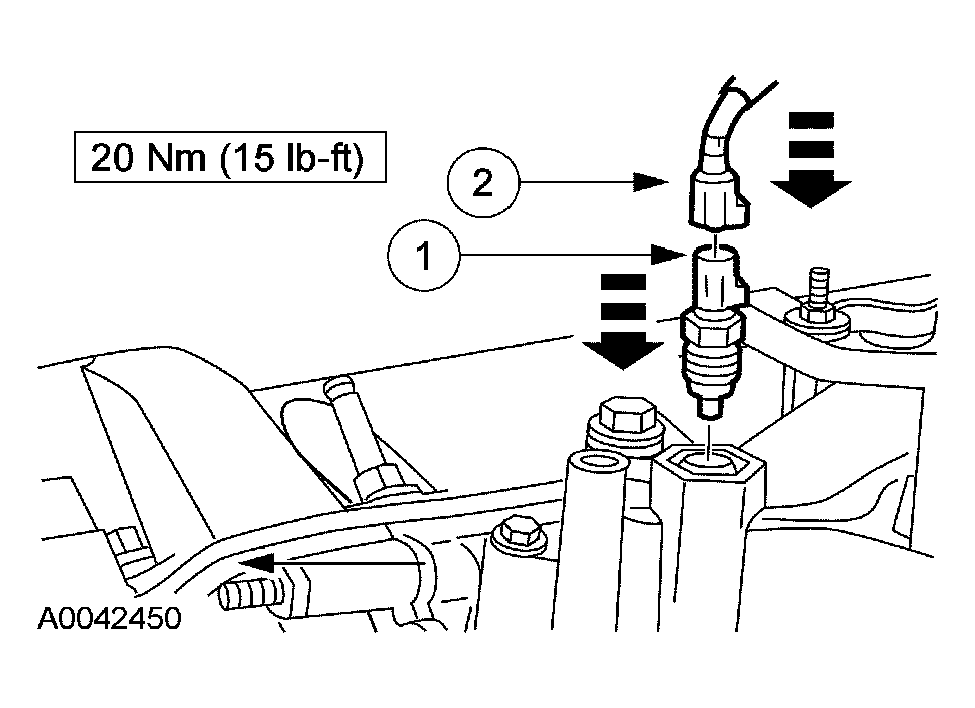

Install the ECT sensor.
1. Install the ECT sensor.
2. Connect the ECT electrical connector.
Fig 1: Connect ECT Electrical Connector
Courtesy of FORD MOTOR CO.

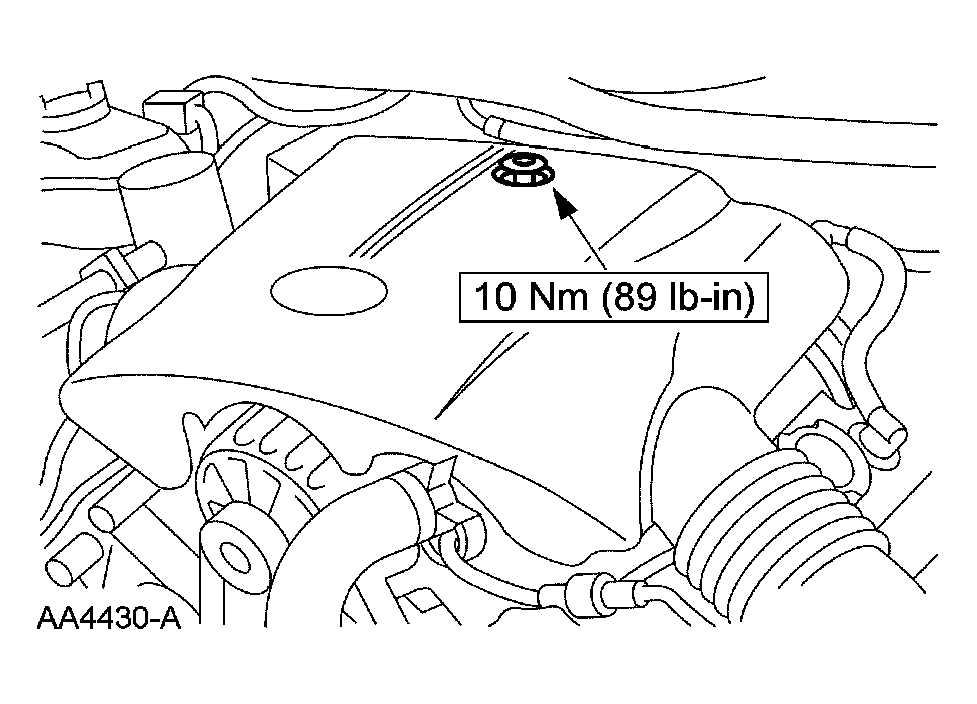

Install the engine appearance cover.

Fig 2: Installing Engine Appearance Cover
Courtesy of FORD MOTOR CO.
Fill and bleed the engine cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
