Pinpoint Test M: DTC C1960 - Driver Brake Apply Circuit Fault
>>
Test Procedure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test Procedure

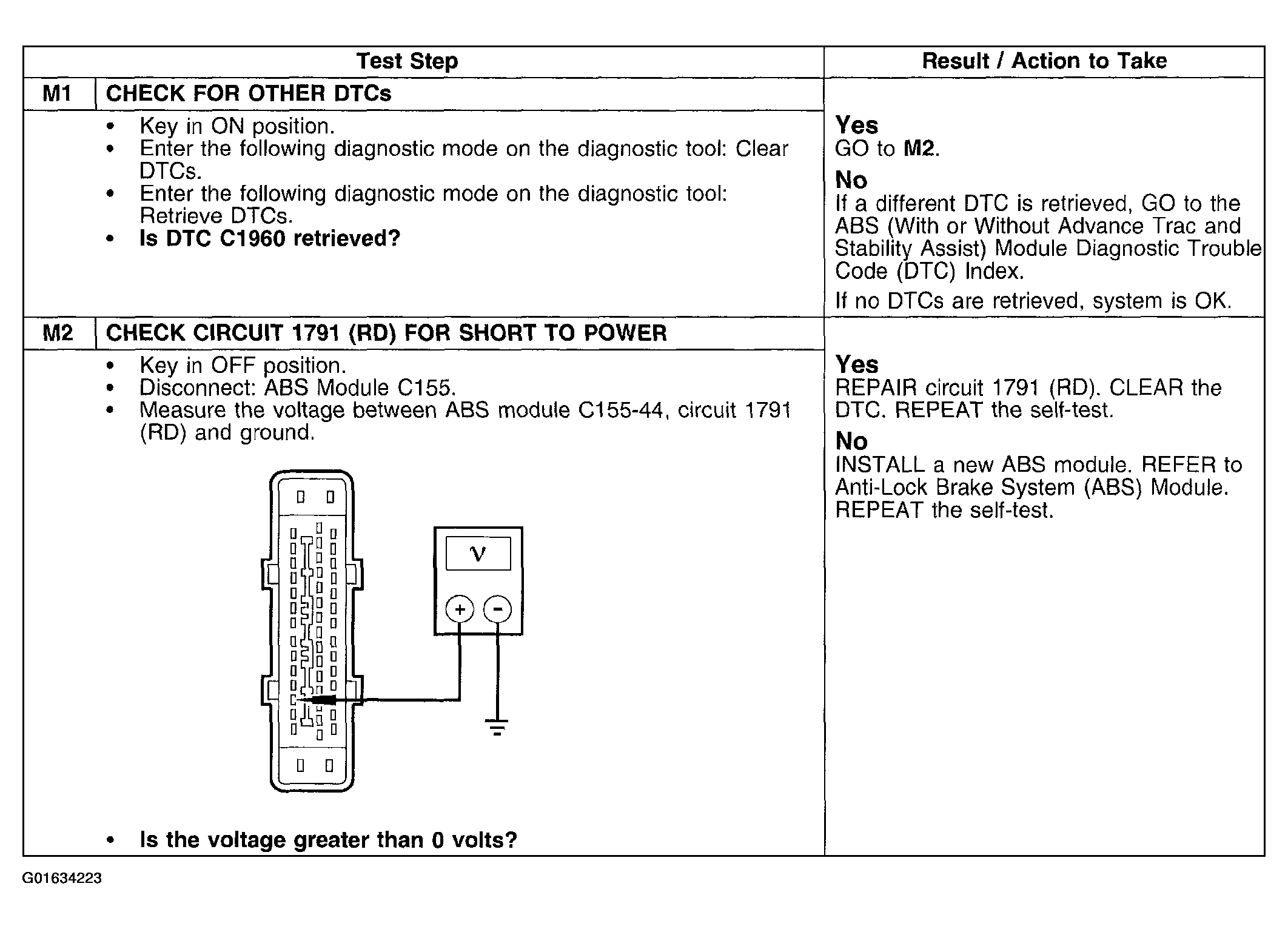

Fig 1: Pinpoint Test M: DTC C1960 - Driver Brake Apply Circuit Fault
Courtesy of FORD MOTOR CO.
