Connector Circuit Reference

Fig 1: Identifying Driver Seat Module C341g Connector Terminals

Courtesy of FORD MOTOR CO.

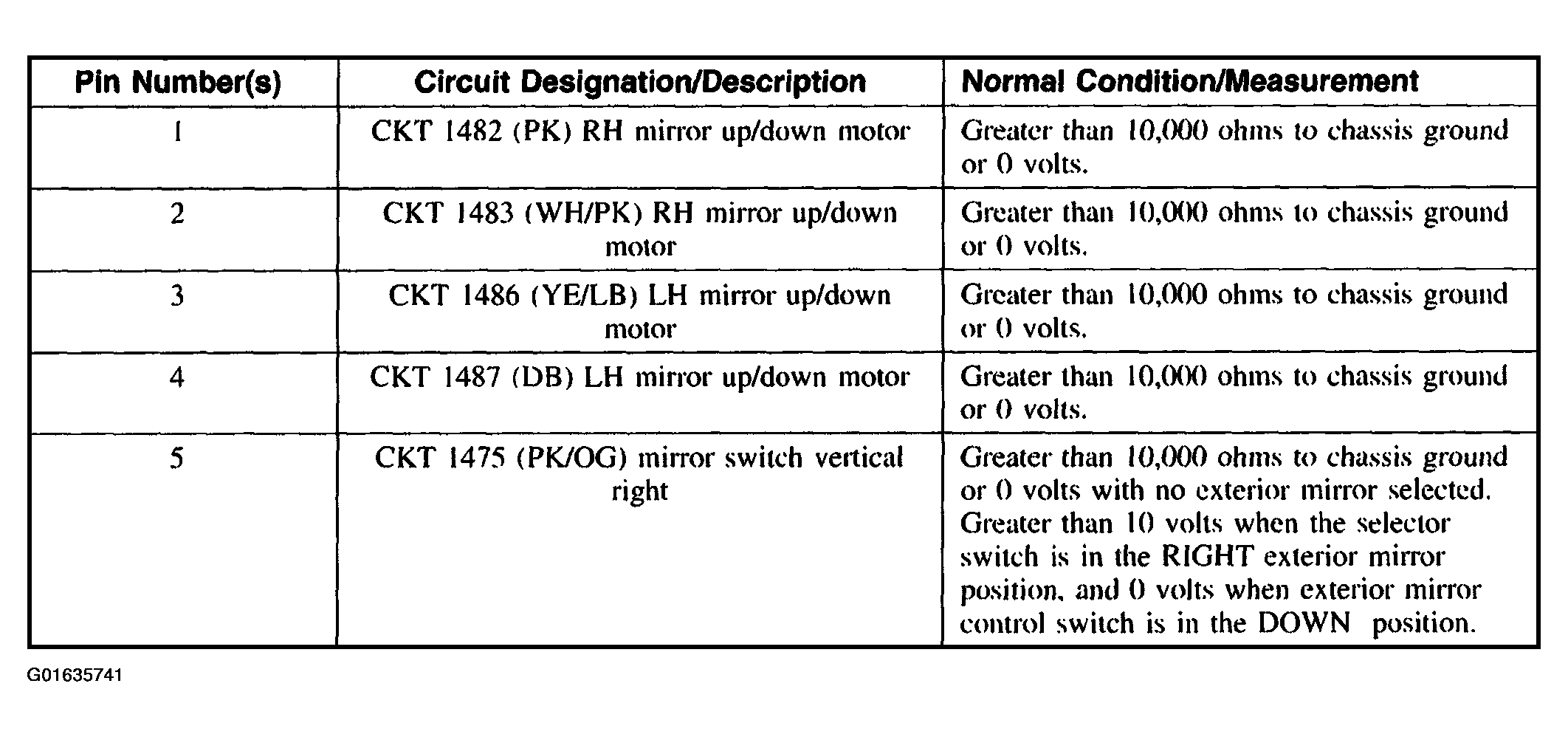

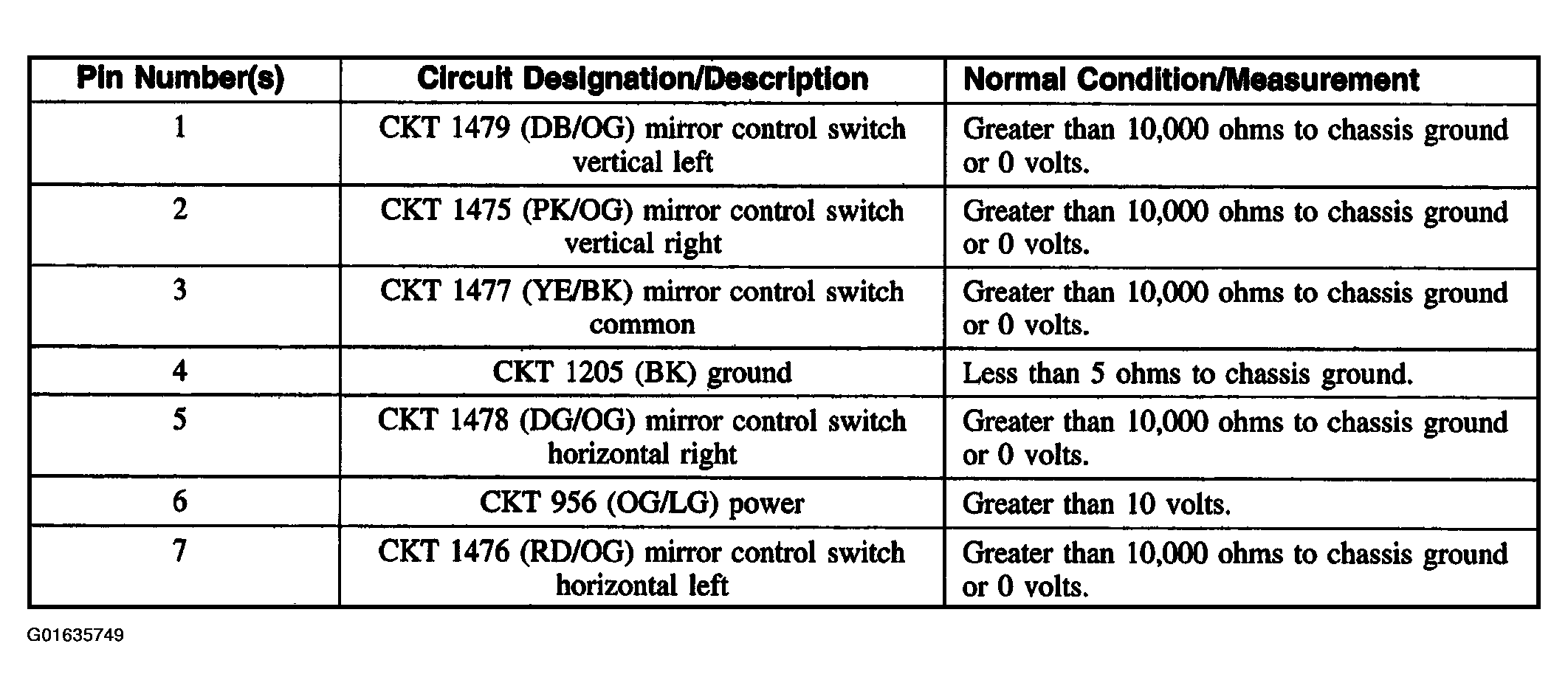

Fig 2: Driver Seat Module Connector C341g Terminals Specifications

Courtesy of FORD MOTOR CO.

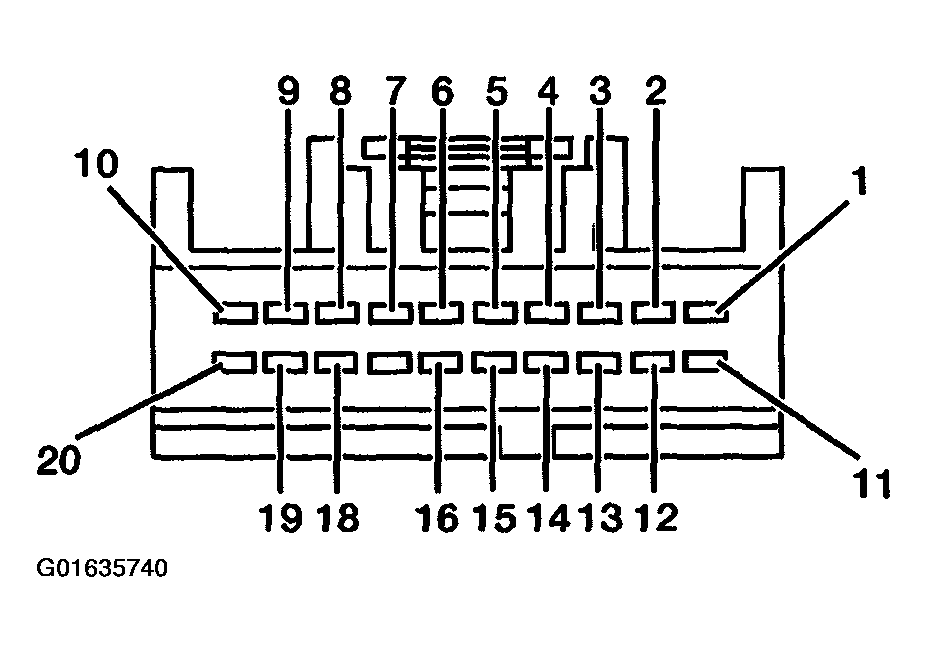

Fig 3: Identifying Driver Seat Module C341d Connector Terminals

Courtesy of FORD MOTOR CO.

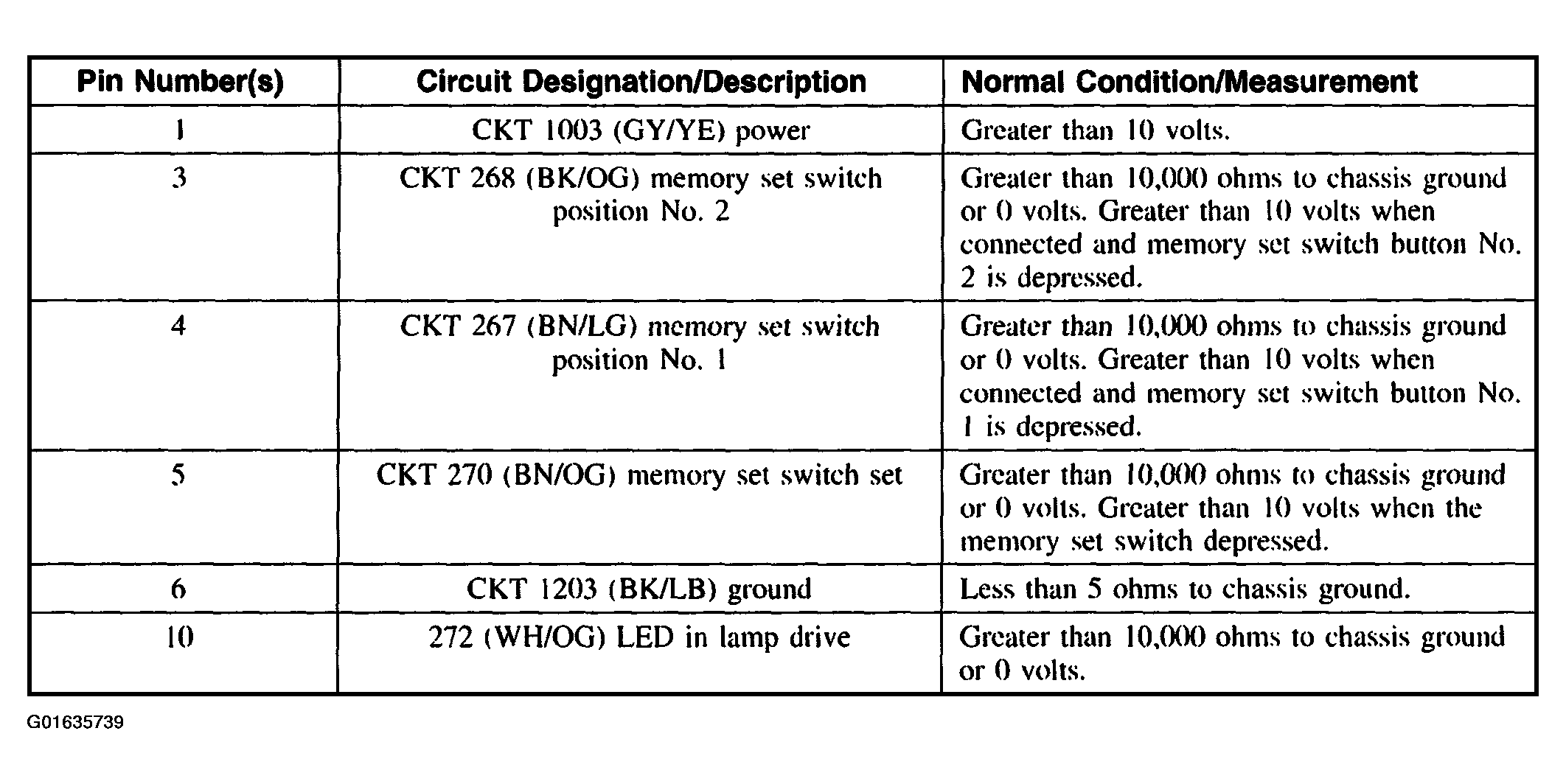

Fig 4: Driver Seat Module C341d Connector Terminals Specifications (Pins 1-5)

Courtesy of FORD MOTOR CO.

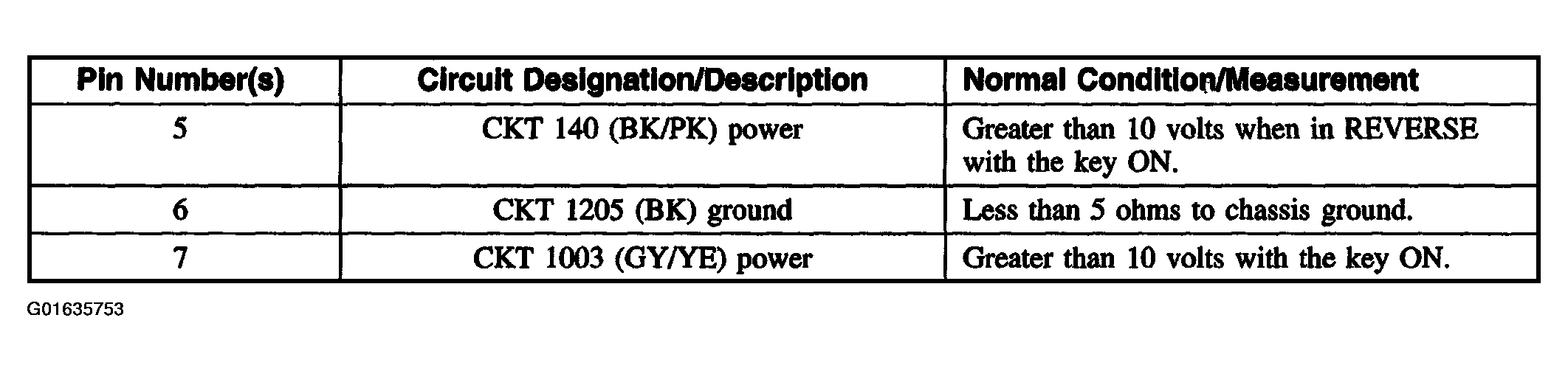

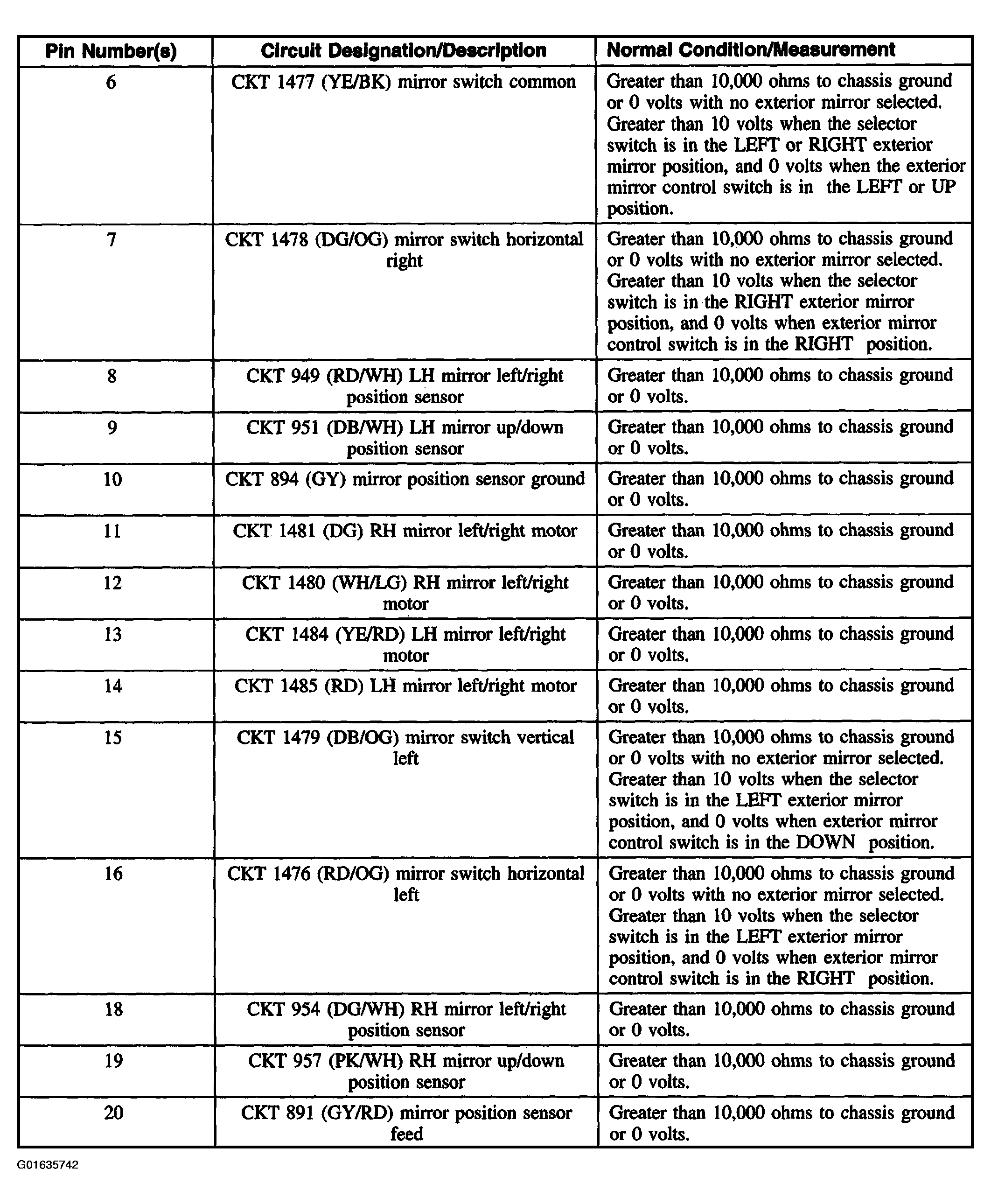

Fig 5: Driver Seat Module C341d Connector Terminals Specifications (Pins 6-20)

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Memory Set Switch C2094 Connector Terminals

Courtesy of FORD MOTOR CO.

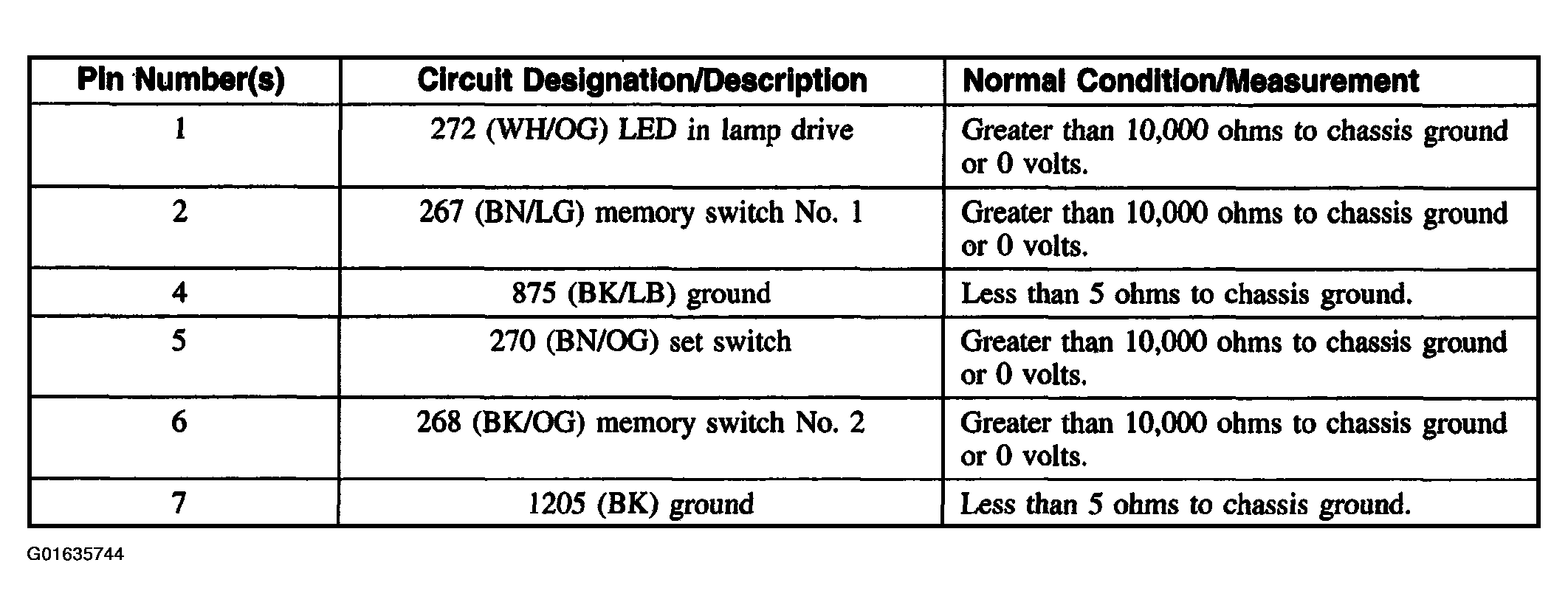

Fig 7: Memory Set Switch C2094 Connector Terminals Specifications

Courtesy of FORD MOTOR CO.

Fig 8: Identifying LH Exterior Mirror C522 Connector Terminals

Courtesy of FORD MOTOR CO.

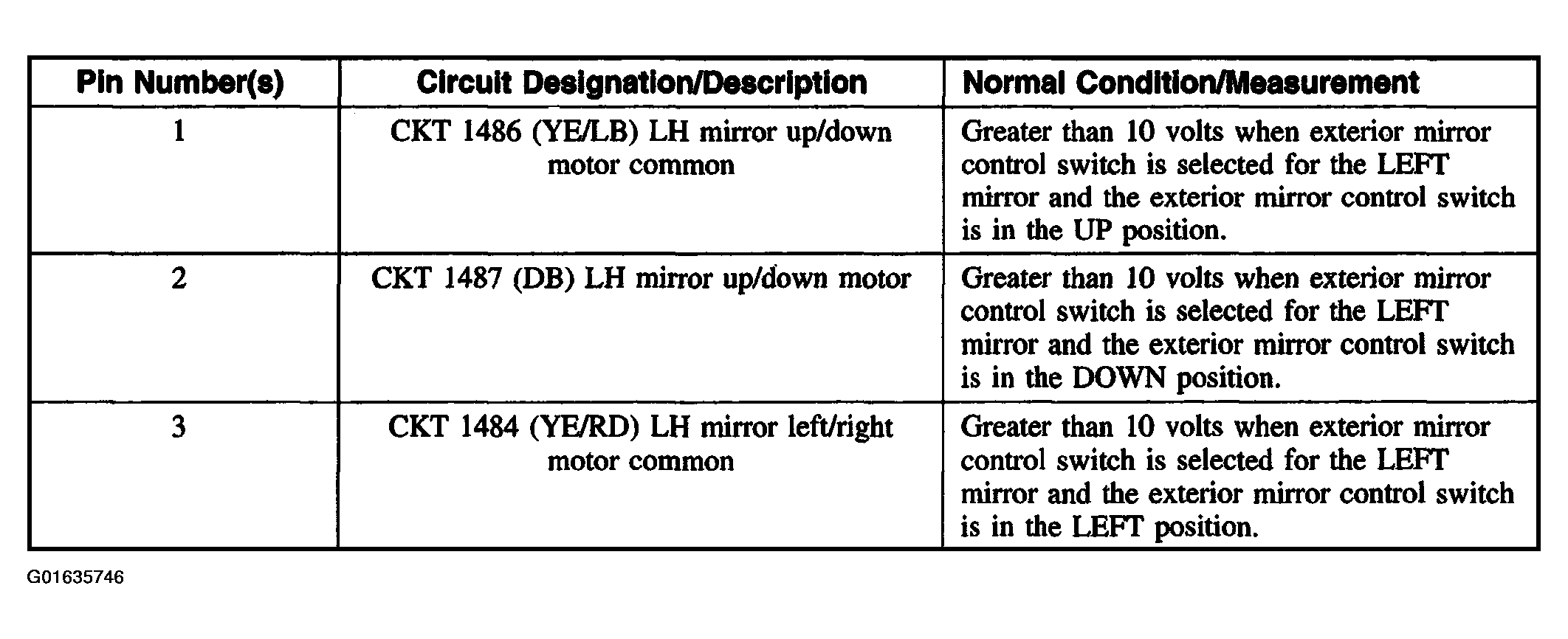

Fig 9: LH Exterior Mirror C522 Connector Terminals Specifications (Pins 1-3)

Courtesy of FORD MOTOR CO.

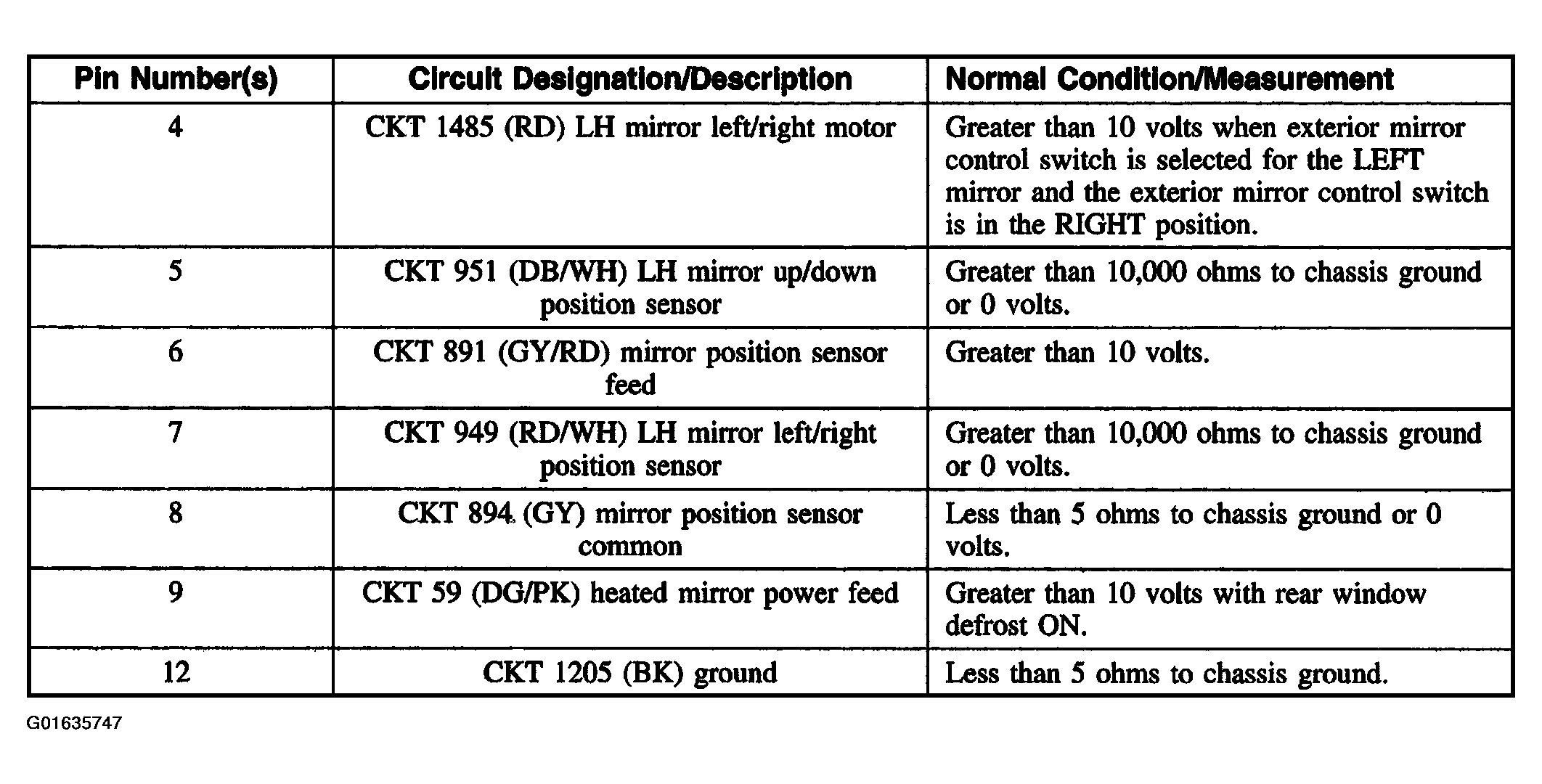

Fig 10: LH Exterior Mirror C522 Connector Terminals Specifications (Pins 4-12)

Courtesy of FORD MOTOR CO.

Fig 11: Identifying Exterior Mirror Control Switch C527 Connector Terminals

Courtesy of FORD MOTOR CO.

Fig 12: Exterior Mirror Control Switch C527 Connector Terminals Specifications

Courtesy of FORD MOTOR CO.

Fig 13: Identifying RH Exterior Mirror C622 Connector Terminals

Courtesy of FORD MOTOR CO.

Fig 14: RH Exterior Mirror C622 Connector Terminals Specifications

Courtesy of FORD MOTOR CO.

Fig 15: Identifying Auto Dimming Mirror C911 Connector Terminals

Courtesy of FORD MOTOR CO.

Fig 16: Auto Dimming Mirror C911 Connector Terminals Specifications

Courtesy of FORD MOTOR CO.
