Alternator: Service and Repair

GENERATOR

REMOVAL
1. Disconnect the battery.
2. Remove the mechanical cooling fan.

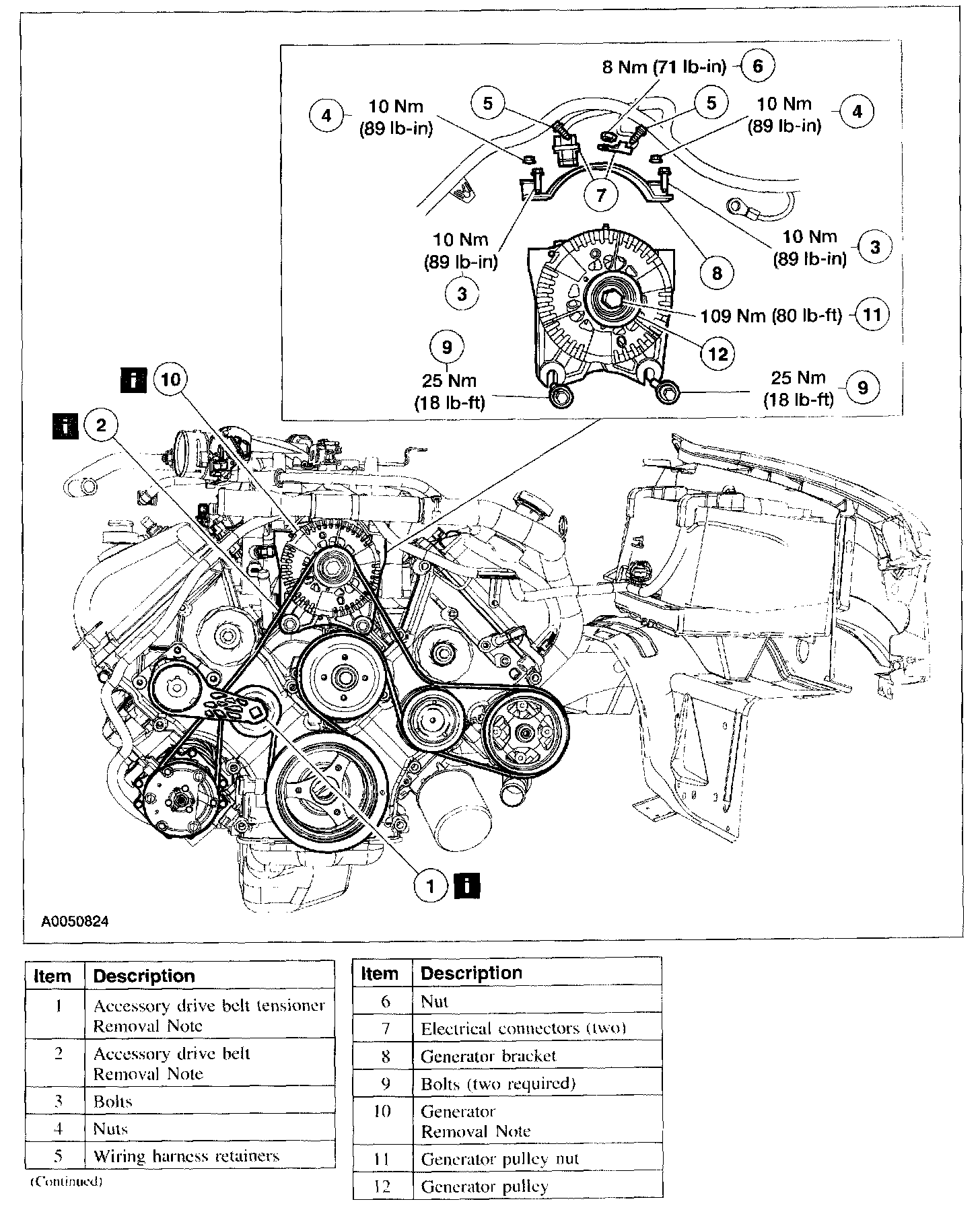

3. Remove the components in the order indicated in the illustration and table.

Item 1: Accessory Drive Belt Tensioner Removal Note
1. Rotate counter-clockwise to release the tension on the accessory drive belt.

Item 2: Accessory Drive Belt Removal Note
1. Position the accessory drive belt aside.

Item 10: Generator Removal Note
1. The generator must be removed from underneath the vehicle.

INSTALLATION
1. To install, reverse the remove procedure.
