Brake Shift Interlock Actuator: Removal

Remove the steering column; refer to STEERING COLUMN .
Remove the insert plate and shift lock actuator (3Z719).
1. Remove the bolts.
2. Remove the insert plate and shift lock actuator.

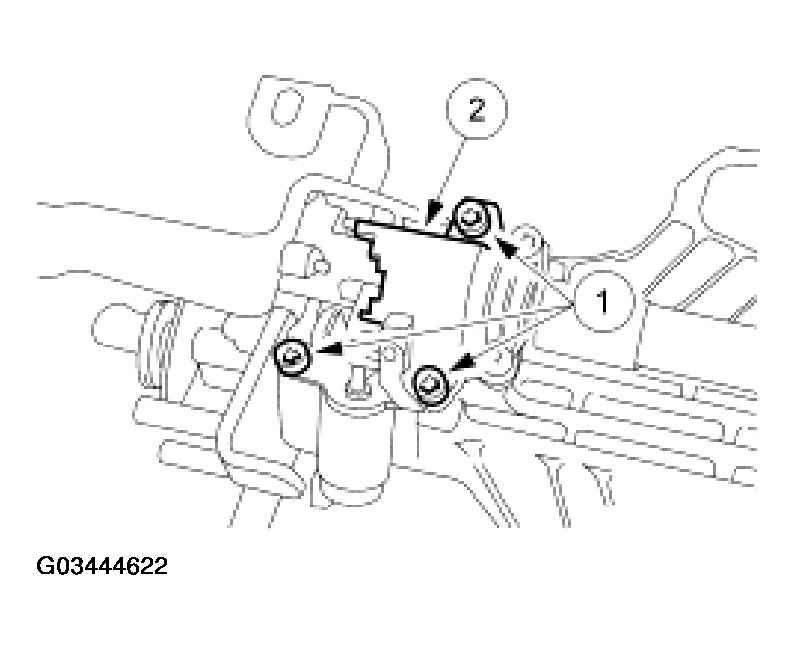

Fig 1: Removing Insert Plate And Shift Lock Actuator
Courtesy of FORD MOTOR CO.

NOTE: The shift lock actuator clip is an assembly aid for the assembly plant and does not need to be replaced in the field.

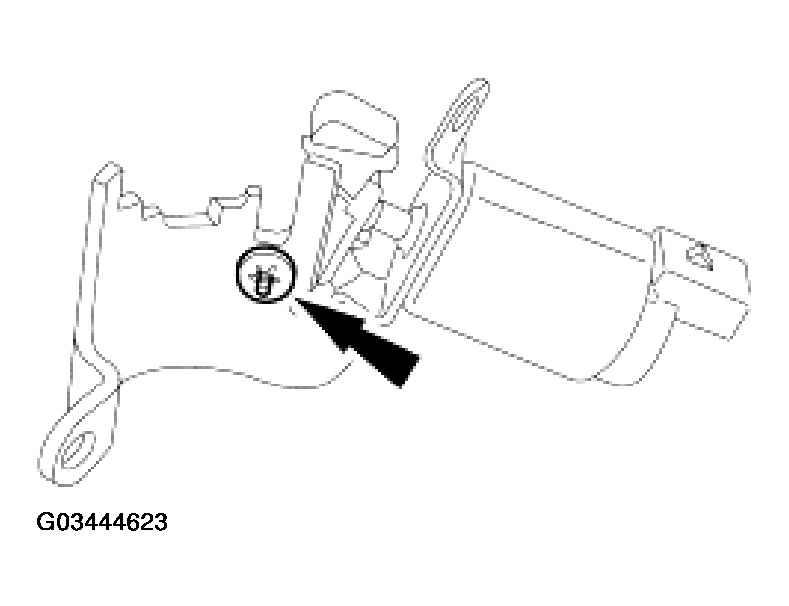

Fig 2: Removing Shift Lock Actuator Clip

Courtesy of FORD MOTOR CO.

Remove the insert plate from the shift lock actuator.
- Remove and discard the shift lock actuator clip.
