Pinpoint Test O: DTC: C1169 - Excessive Dump Time

NOTE: Repair all other DTCs before proceeding.

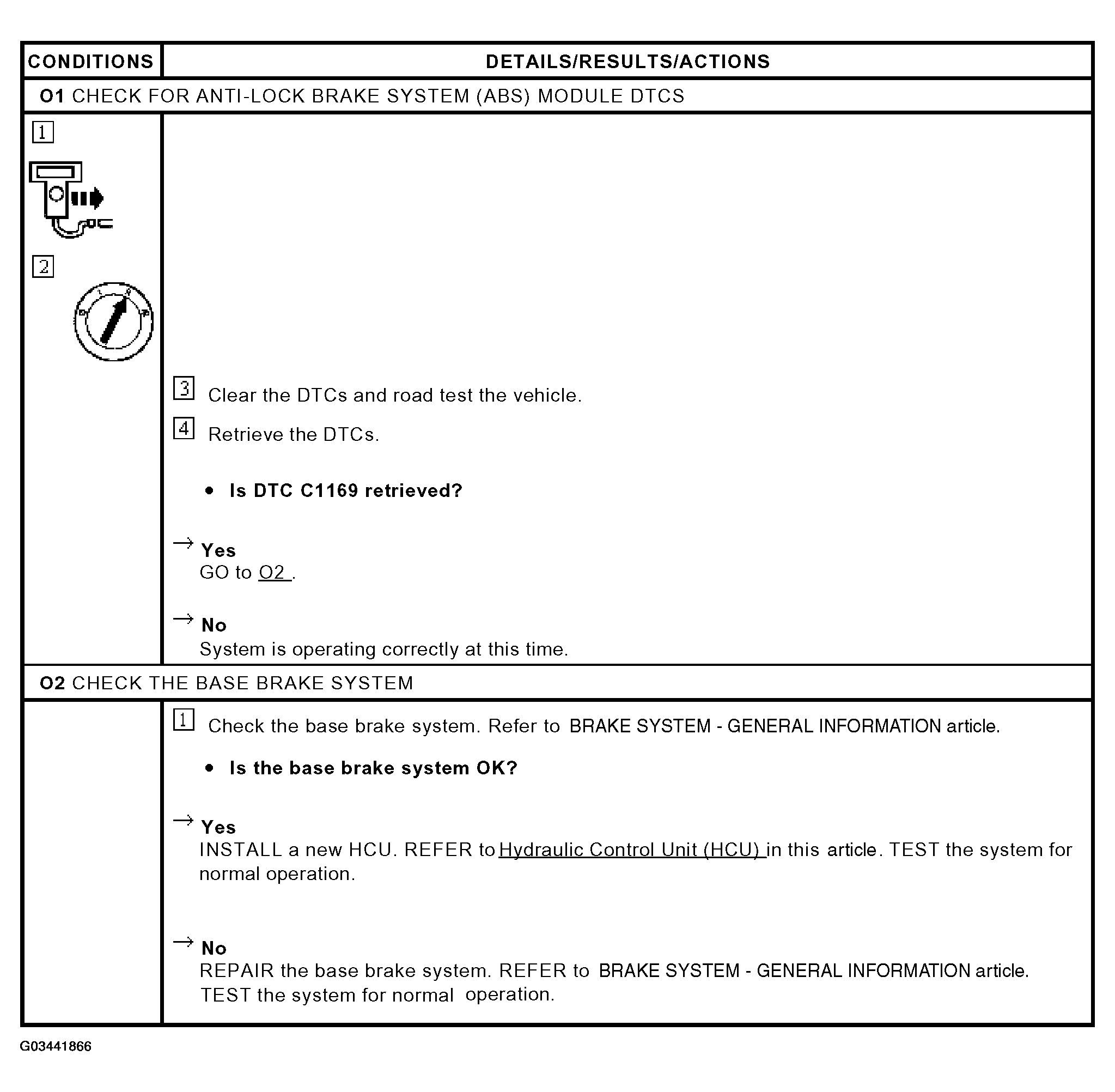

Fig 1: Pinpoint Test O: DTC: C1169 - Excessive Dump Time
G03441866Courtesy of FORD MOTOR CO.
