Heating and Air Conditioning: Locations

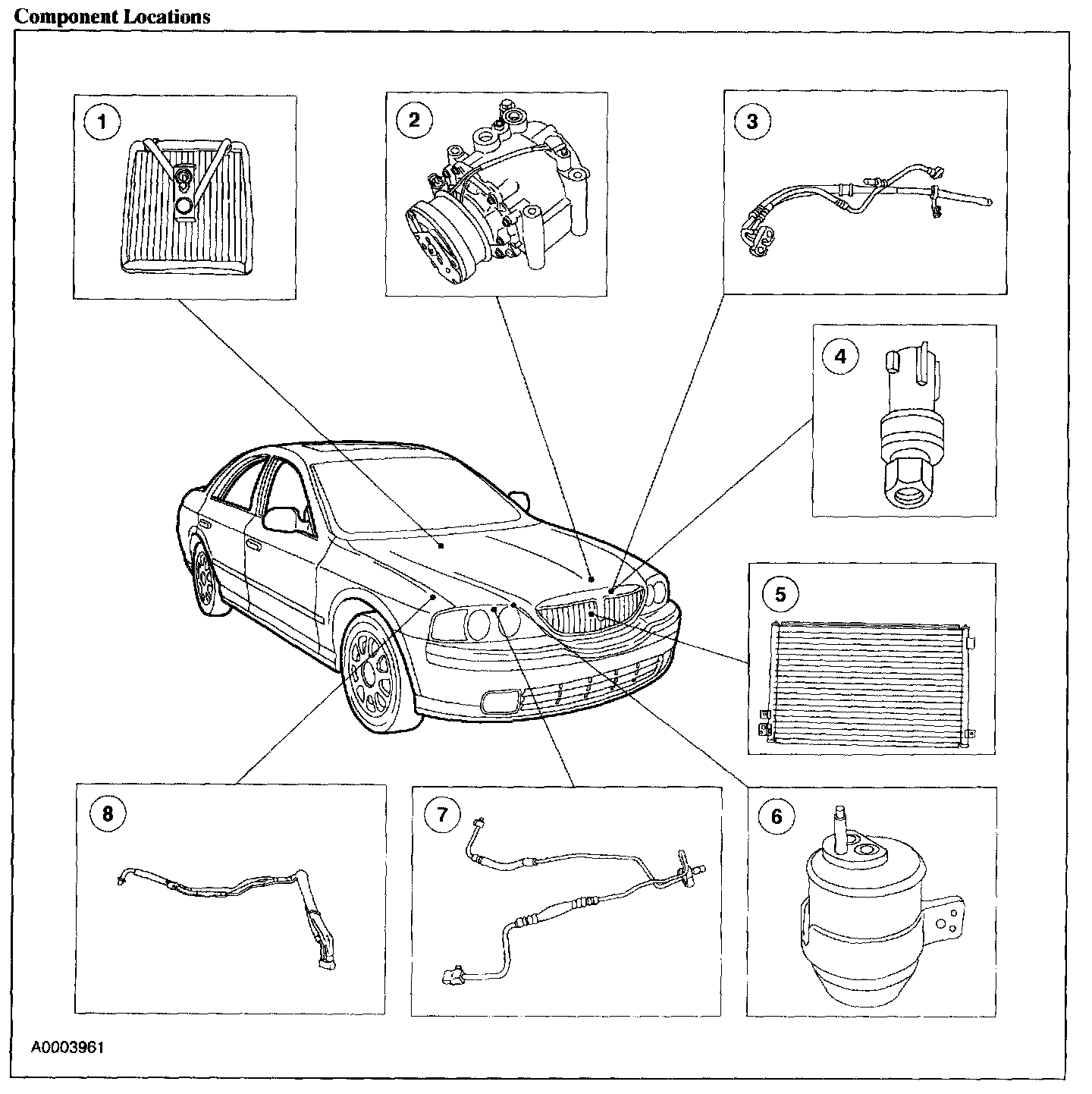

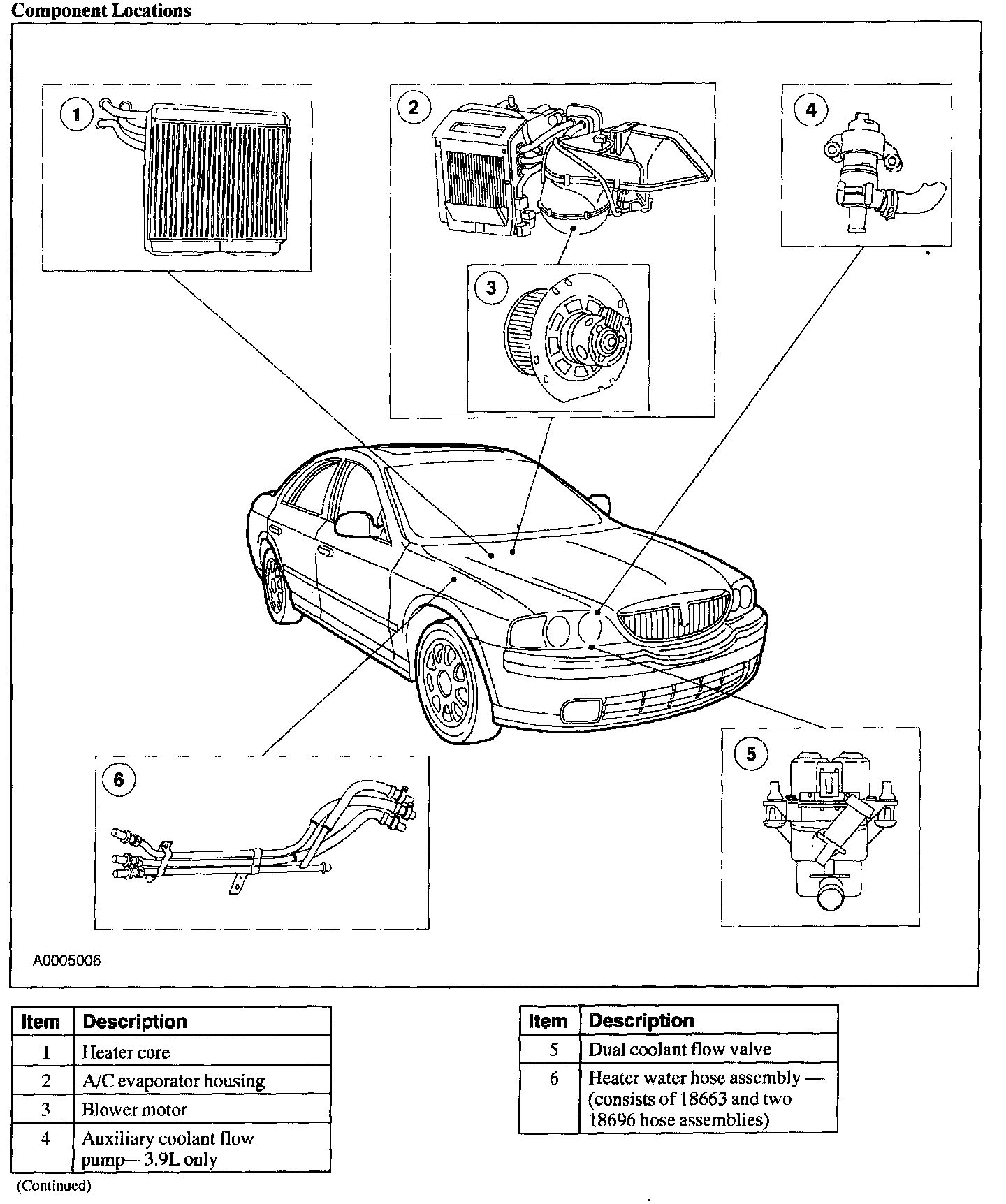

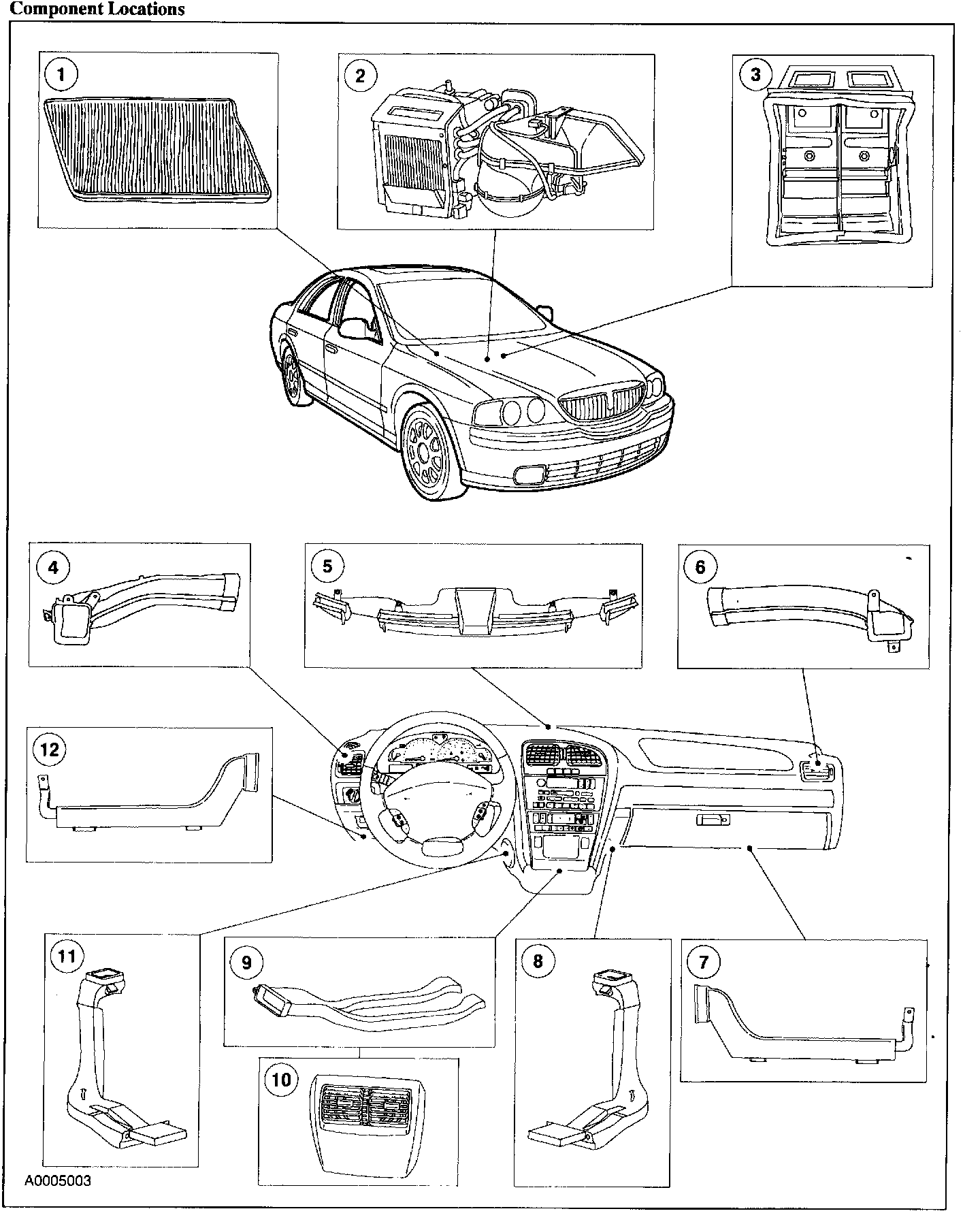

Component Locations, Part 1:






Component Locations, Part 2:






Component Lcoations:






Component Locations, Part 1:






Component Locations, Part 2:






Component Locations, Part 1:






Component Locations, Part 2:
