Removal And Installation: Accelerometer: Installation
NOTE:
The stability assist module needs to be recalibrated whenever a component is disconnected, moved, or a new component is installed. For additional information regarding the recalibration procedure and when the recalibration procedure should be carried out, refer to PRINCIPLES OF OPERATION . For additional information regarding the module configuration procedure, see MODULE CONFIGURATION
.
NOTE:

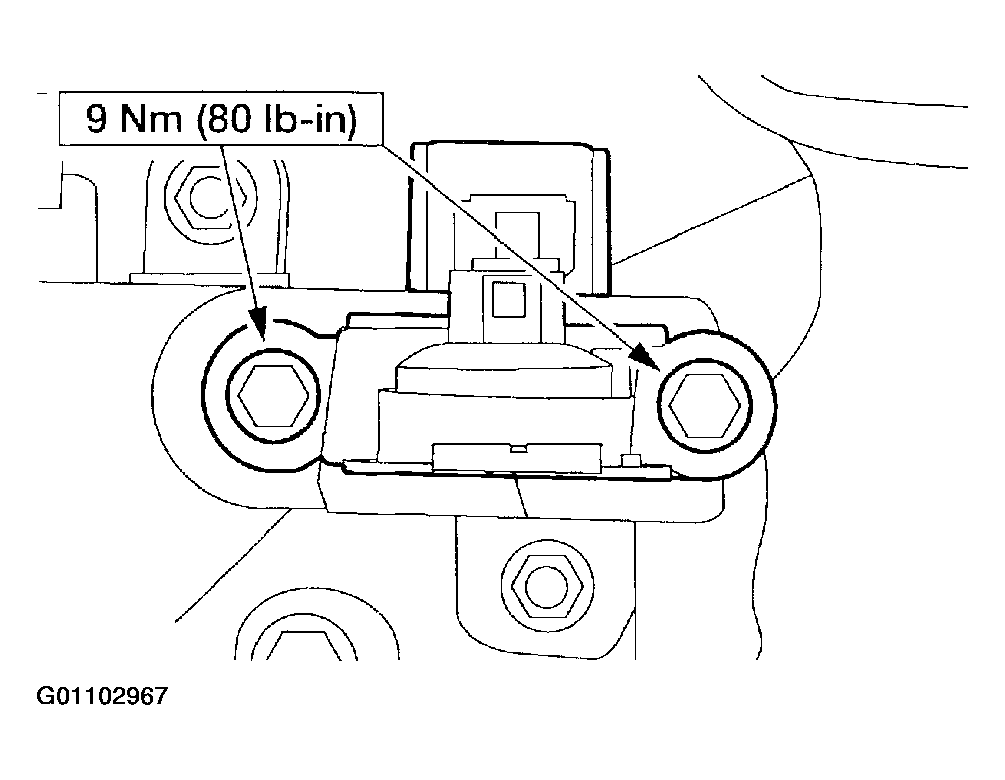

The accelerometer is positioned with the connector pointed to the left side of the vehicle. Be sure to mount the accelerometer in this orientation during the installation procedure.
- To install, reverse the removal procedure.
