Final Drive: Notes

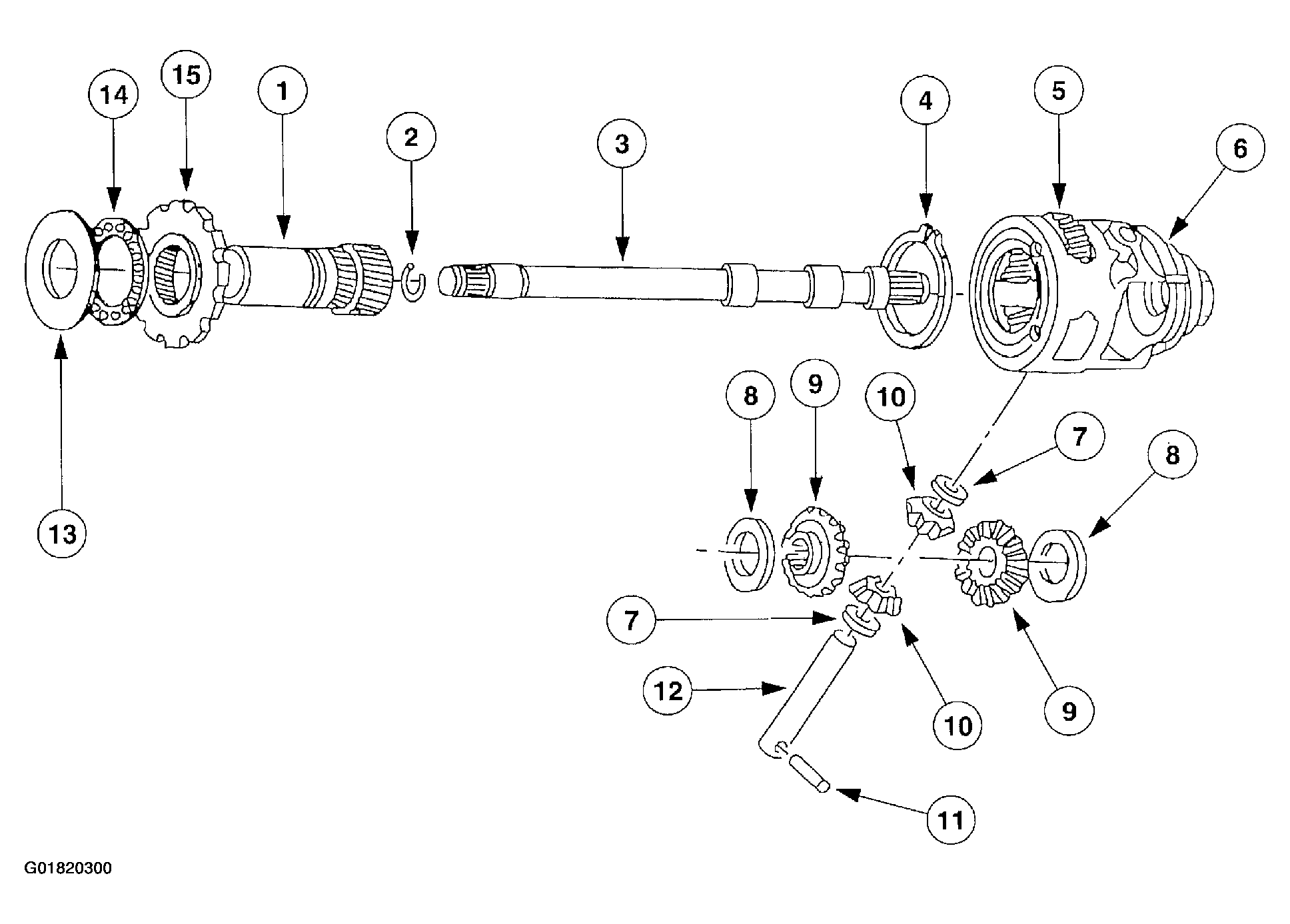

Fig 1: Final Drive - Component View
G01820300Courtesy of FORD MOTOR CO.

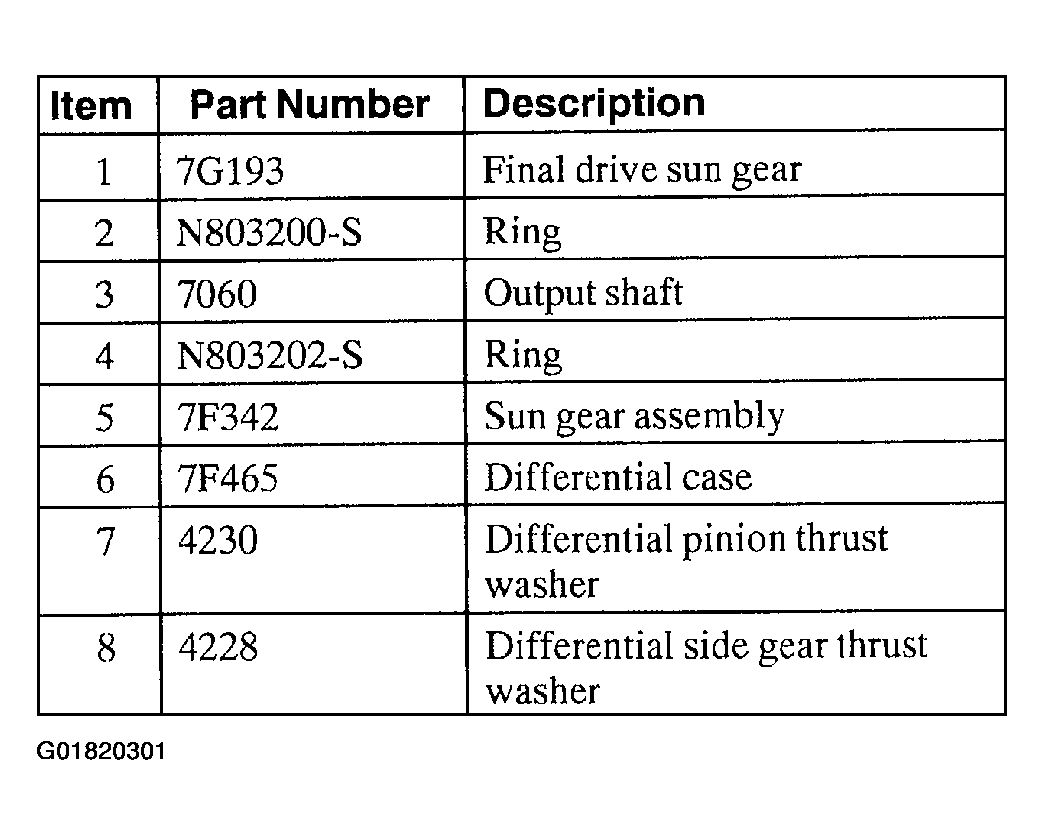

Fig 2: Final Drive - Component View Legend (Items 1-8)
G01820301Courtesy of FORD MOTOR CO.

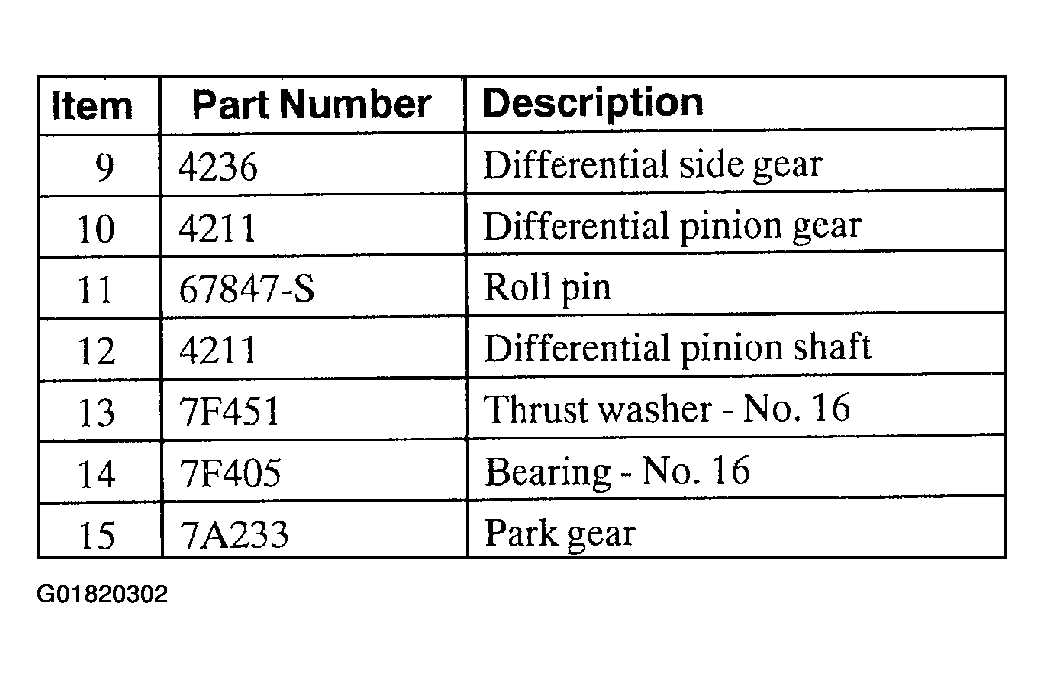

Fig 3: Final Drive - Component View Legend (Items 9-15)
G01820302Courtesy of FORD MOTOR CO.
