Pinpoint Test A: No Communication With The Module - Unable To Carry Out On-Demand Self-Test On Lighting Control Module

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

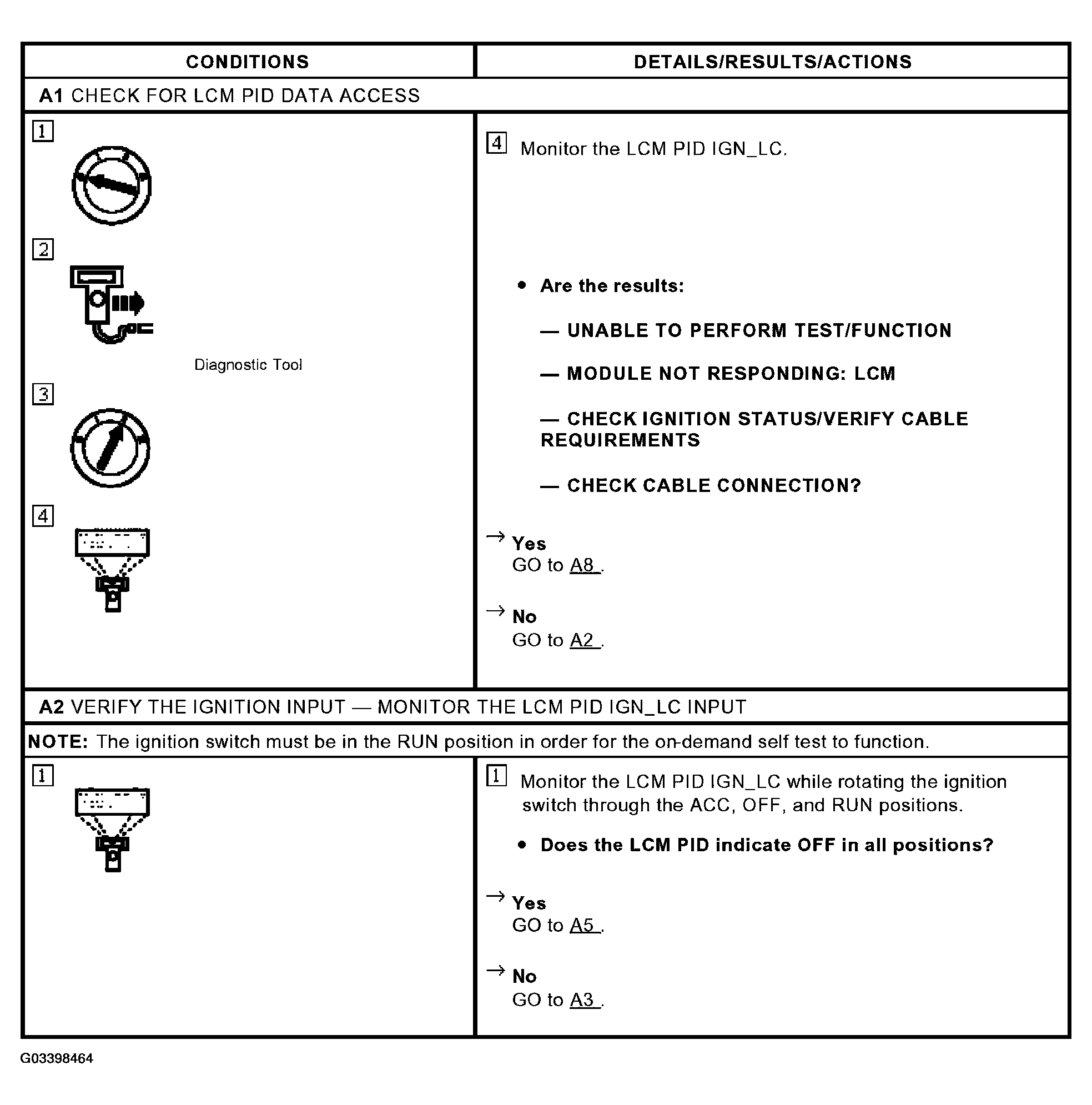

Fig 1: Pinpoint Test A: No Communication With Module (A1 To A2)

Courtesy of FORD MOTOR CO.

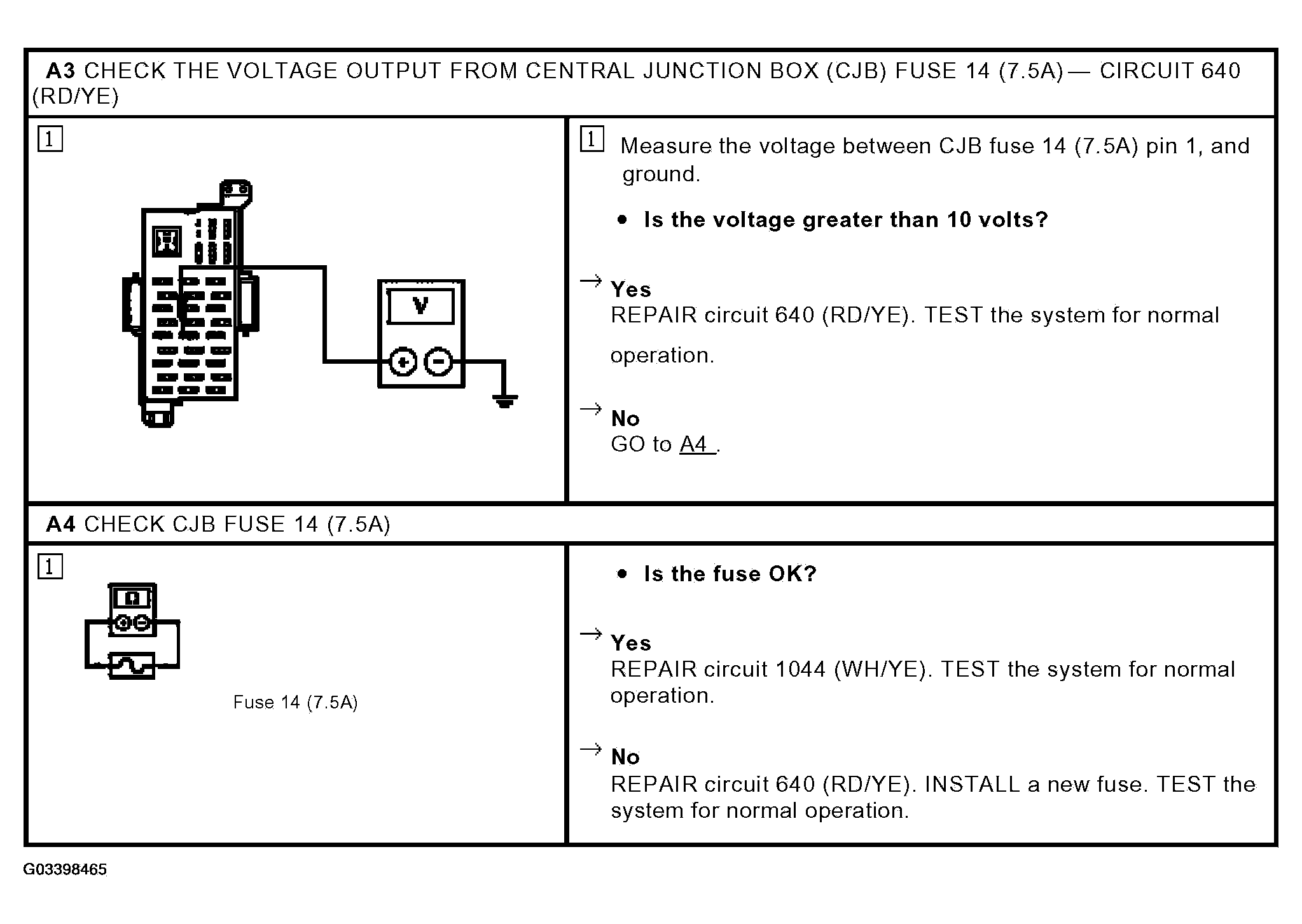

Fig 2: Pinpoint Test A: No Communication With Module (A3 To A4)

Courtesy of FORD MOTOR CO.

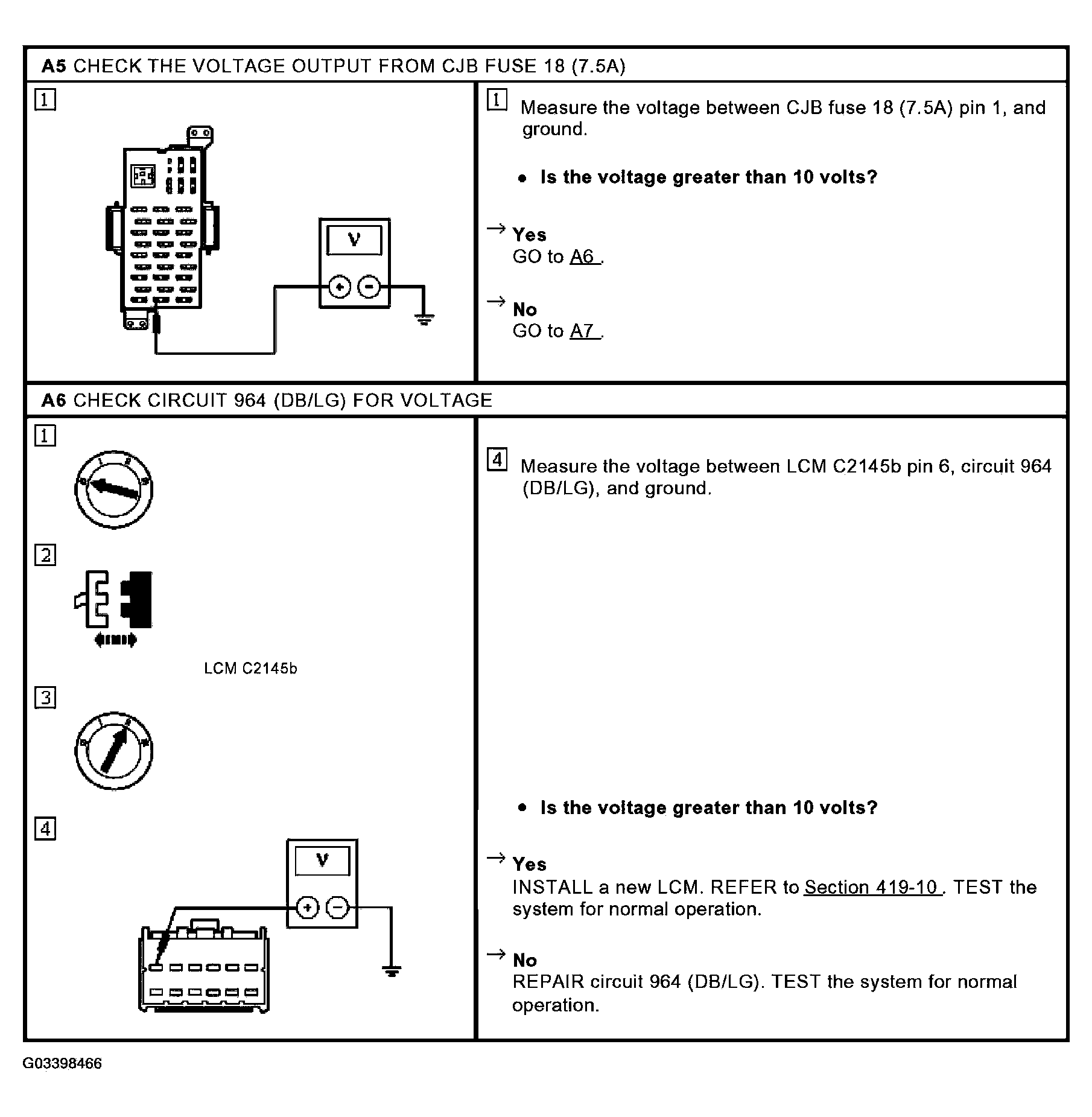

Fig 3: Pinpoint Test A: No Communication With Module (A5 To A6)

Courtesy of FORD MOTOR CO.

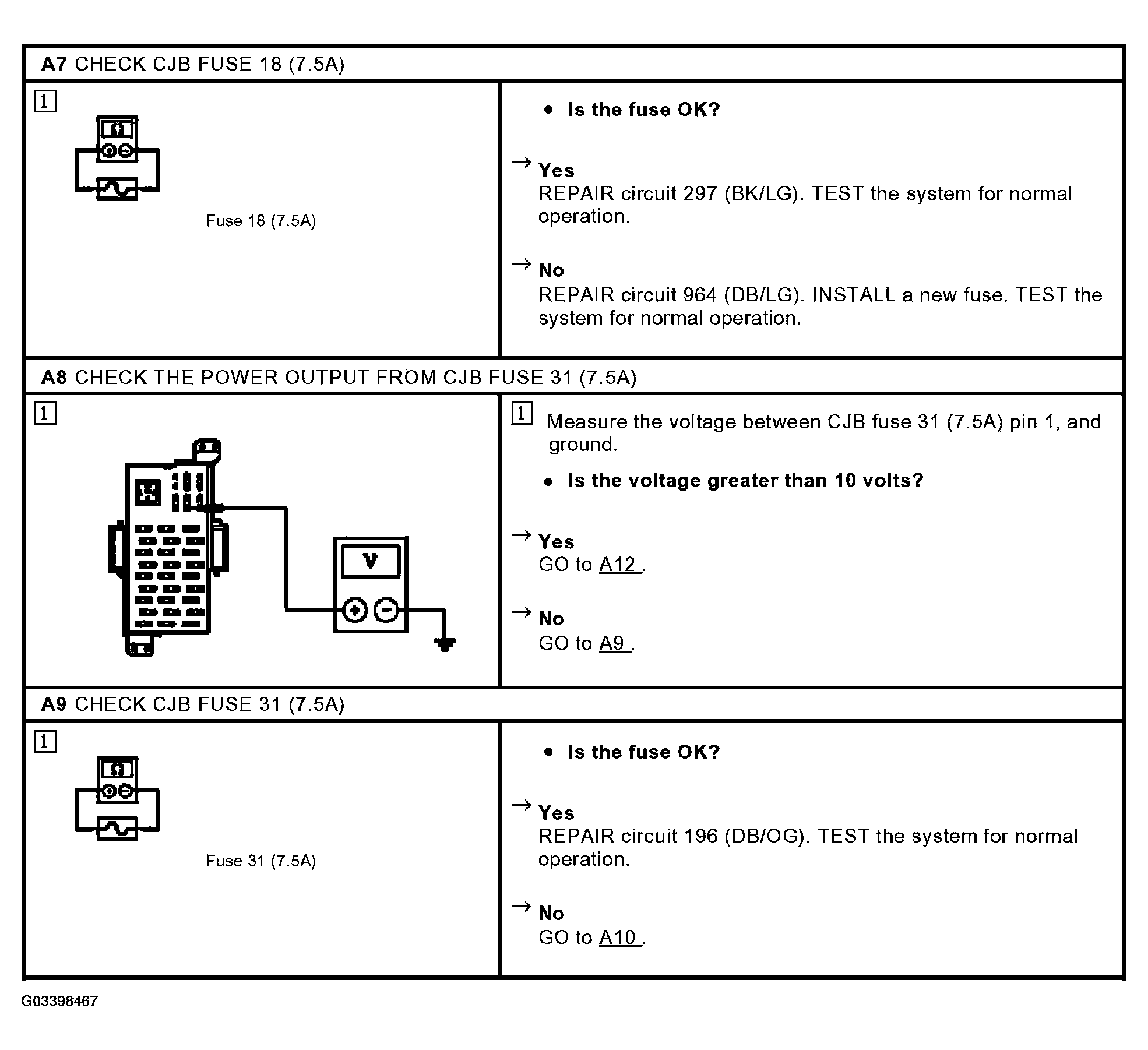

Fig 4: Pinpoint Test A: No Communication With Module (A7 To A9)

Courtesy of FORD MOTOR CO.

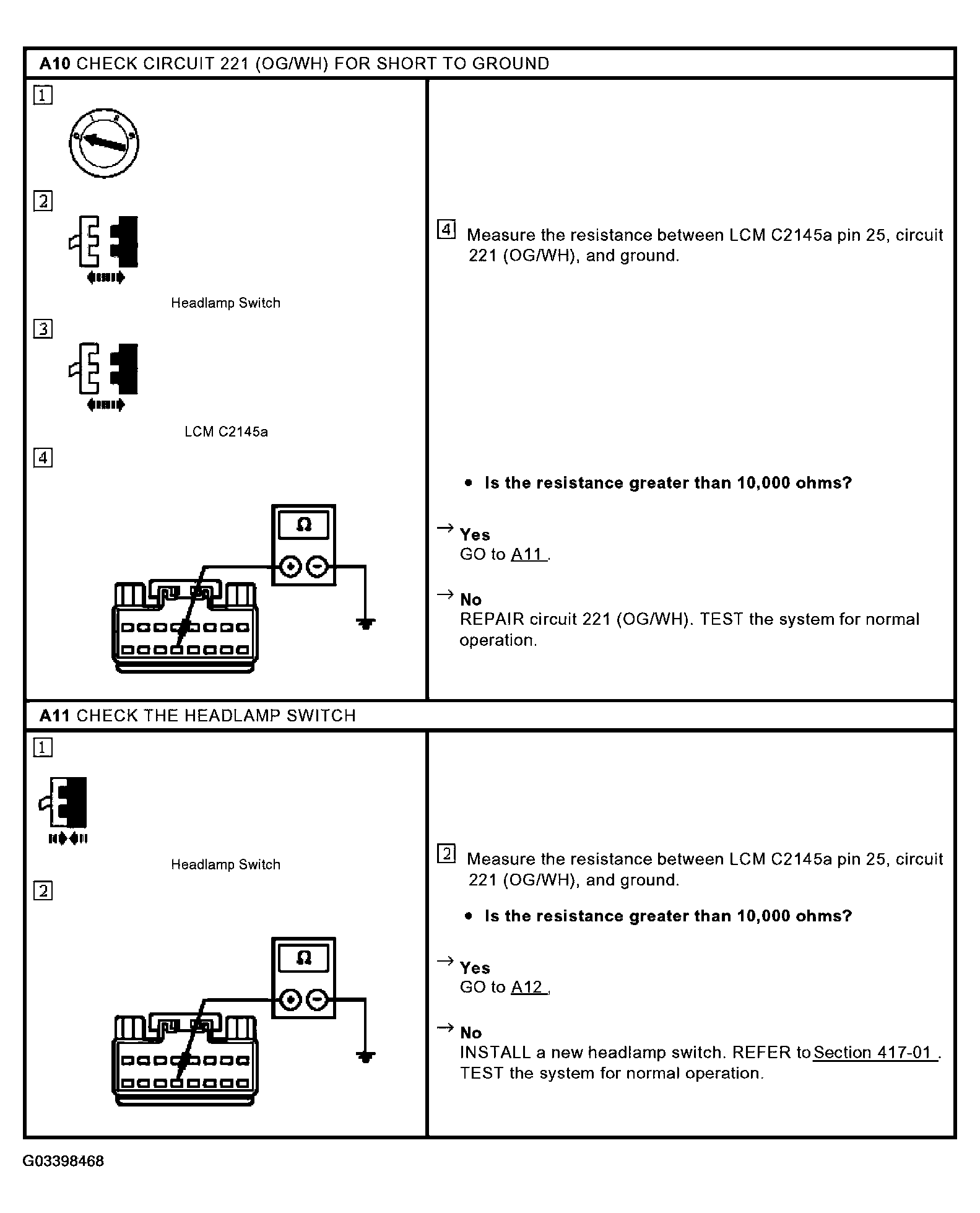

Fig 5: Pinpoint Test A: No Communication With Module (A10 To A11)

Courtesy of FORD MOTOR CO.

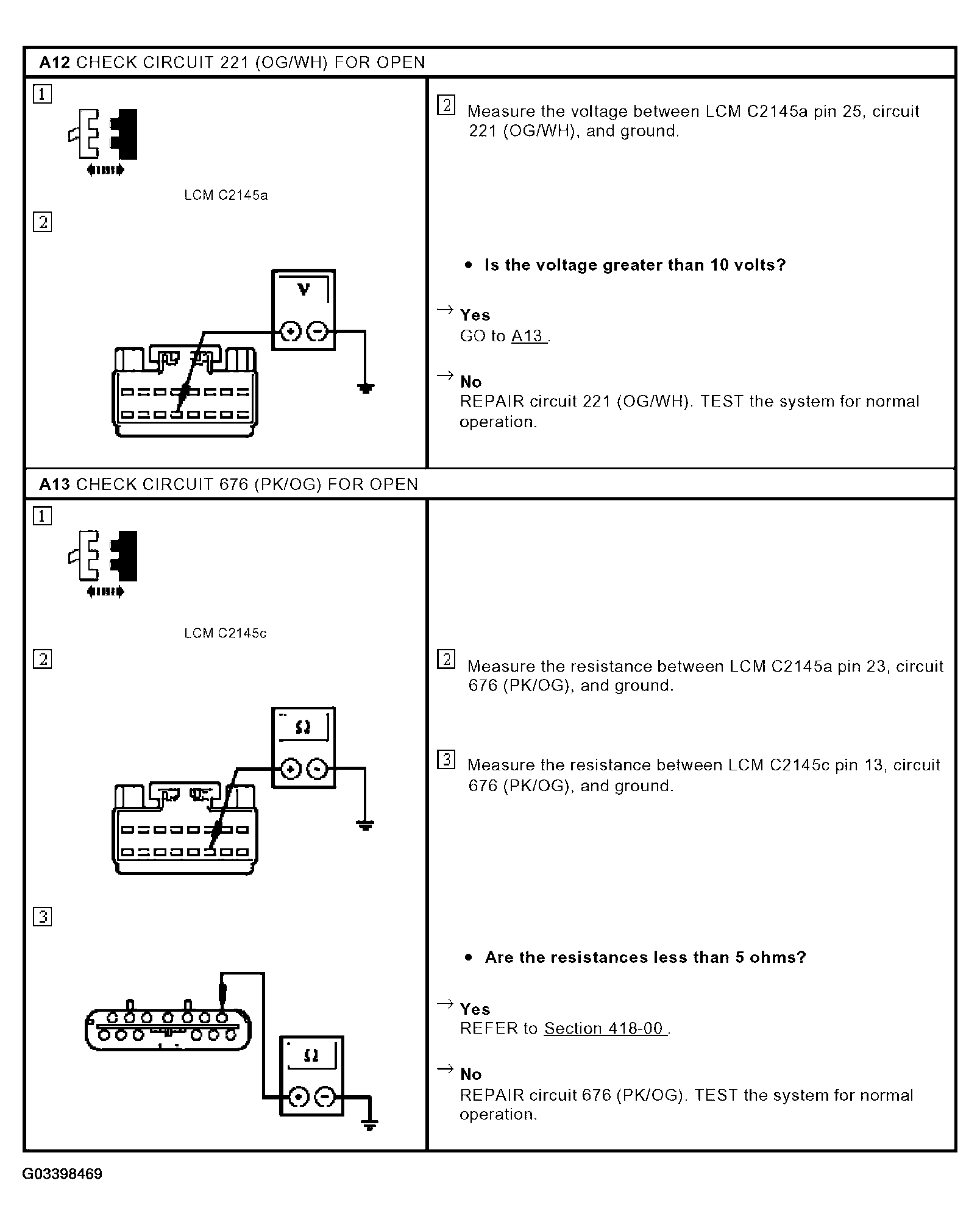

Fig 6: Pinpoint Test A: No Communication With Module (A12 To A13)

Courtesy of FORD MOTOR CO.
