Low-Intermediate Clutch Cylinder: Notes

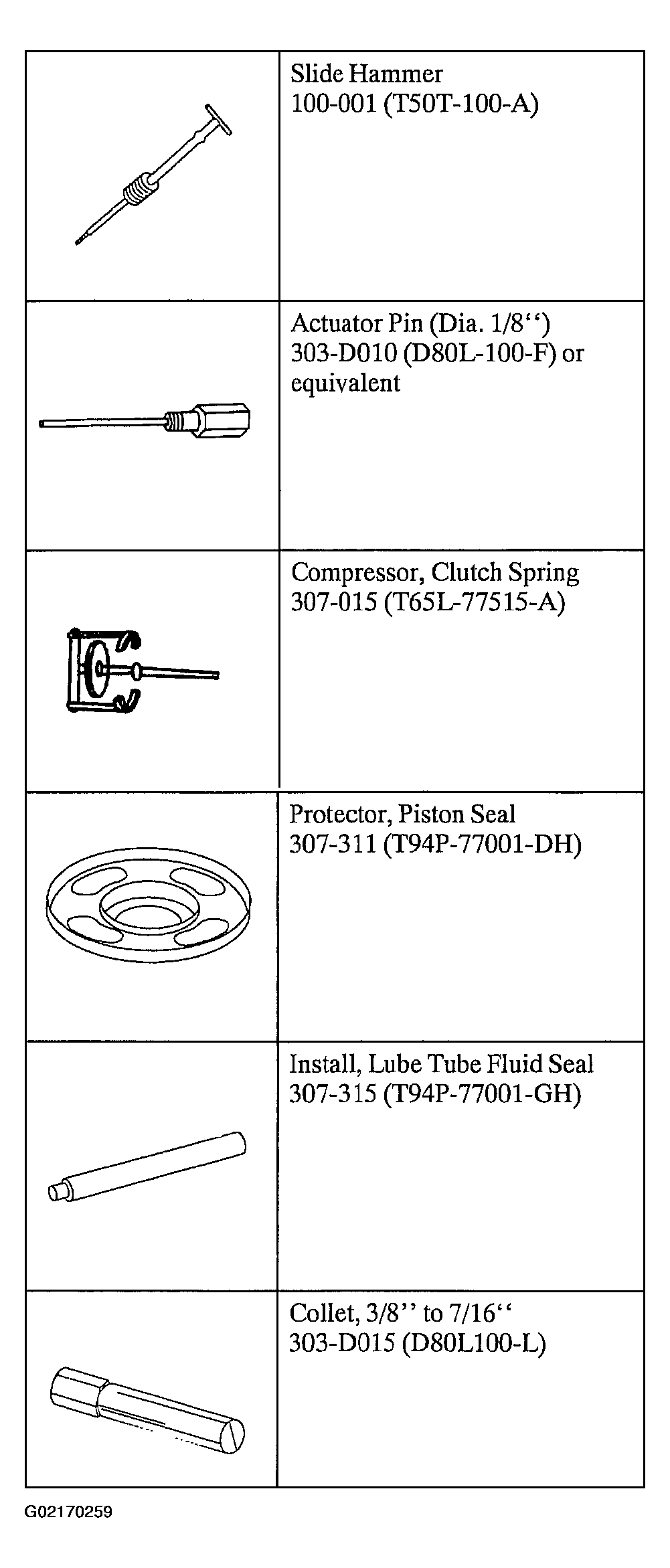

Fig 1: Special Tool(s)

G02170259

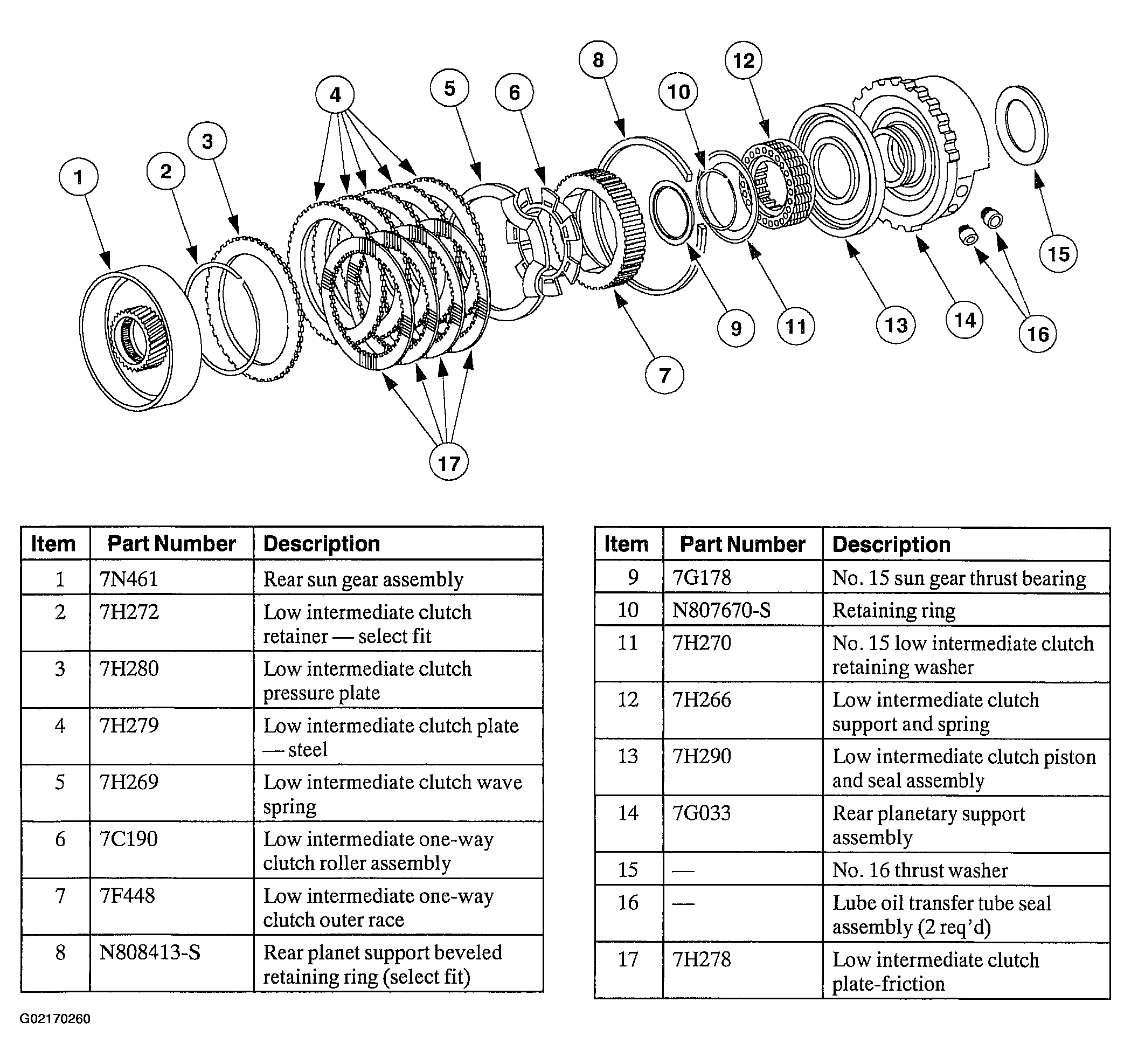

Fig 2: Low-Intermediate Clutch Cylinder Exploded View

G02170260
