Rear Quarter Window Glass

Removal & Installation

1. Remove the rear door window glass, if necessary. See REAR DOOR WINDOW GLASS  .
2. Remove the rear door glass run screws. See Fig 1 .
3. Remove the rear door glass run and the quarter glass. See Fig 2 .
4. To install reverse the removal procedure.

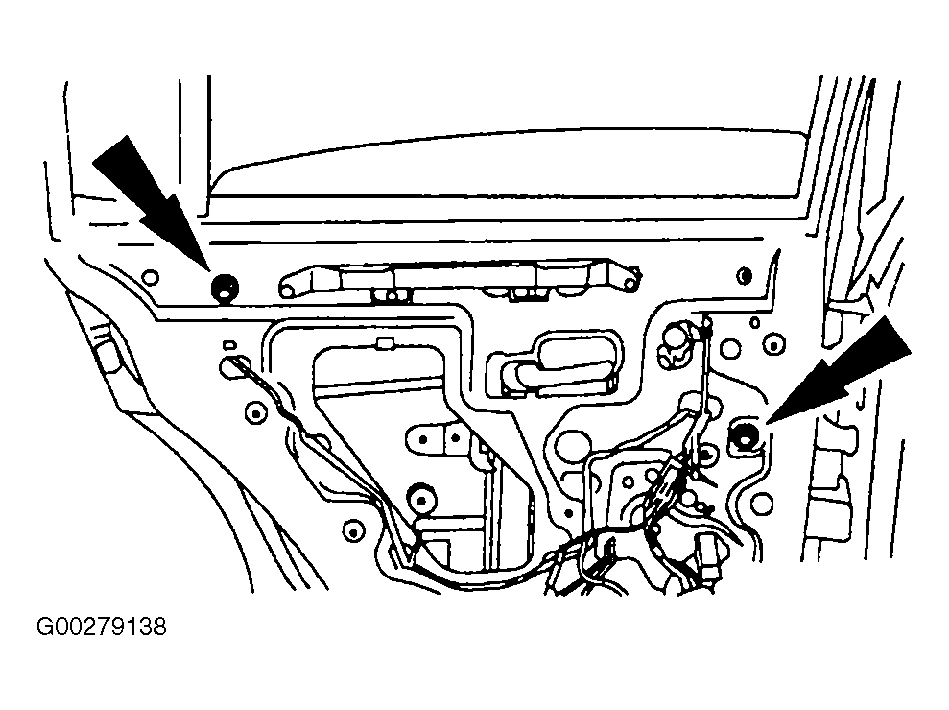

Fig 1: Removing Screws For Rear Quarter Glass

Courtesy of FORD MOTOR CO.

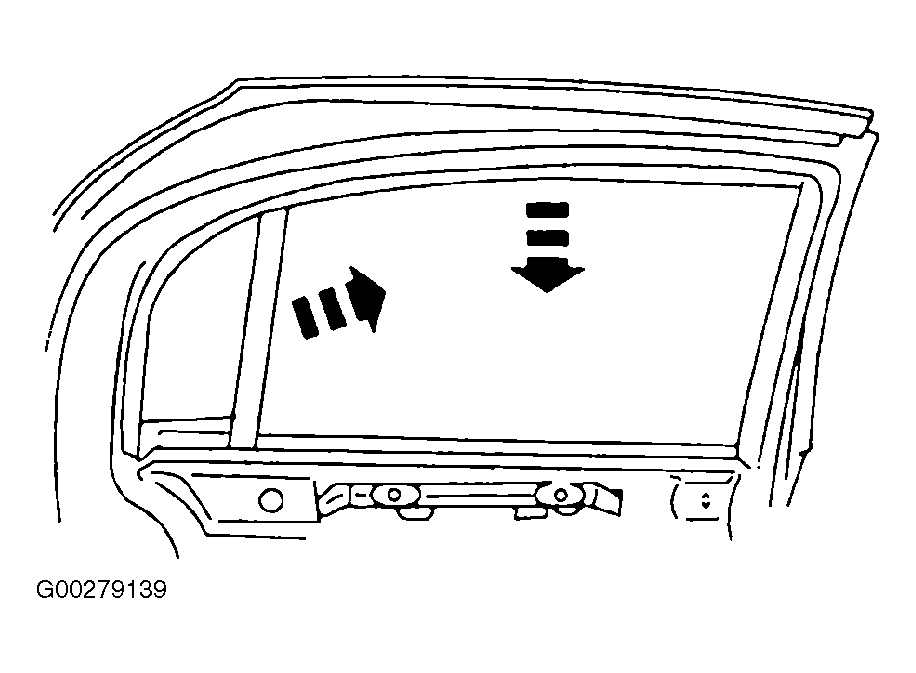

Fig 2: Removing Quarter Glass From Rear Door

Courtesy of FORD MOTOR CO.
