Pinpoint Test X: The Temperature Control Is Inoperative Using The Front Auxiliary Climate Controls

WARNING: This page is about a different car, the 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

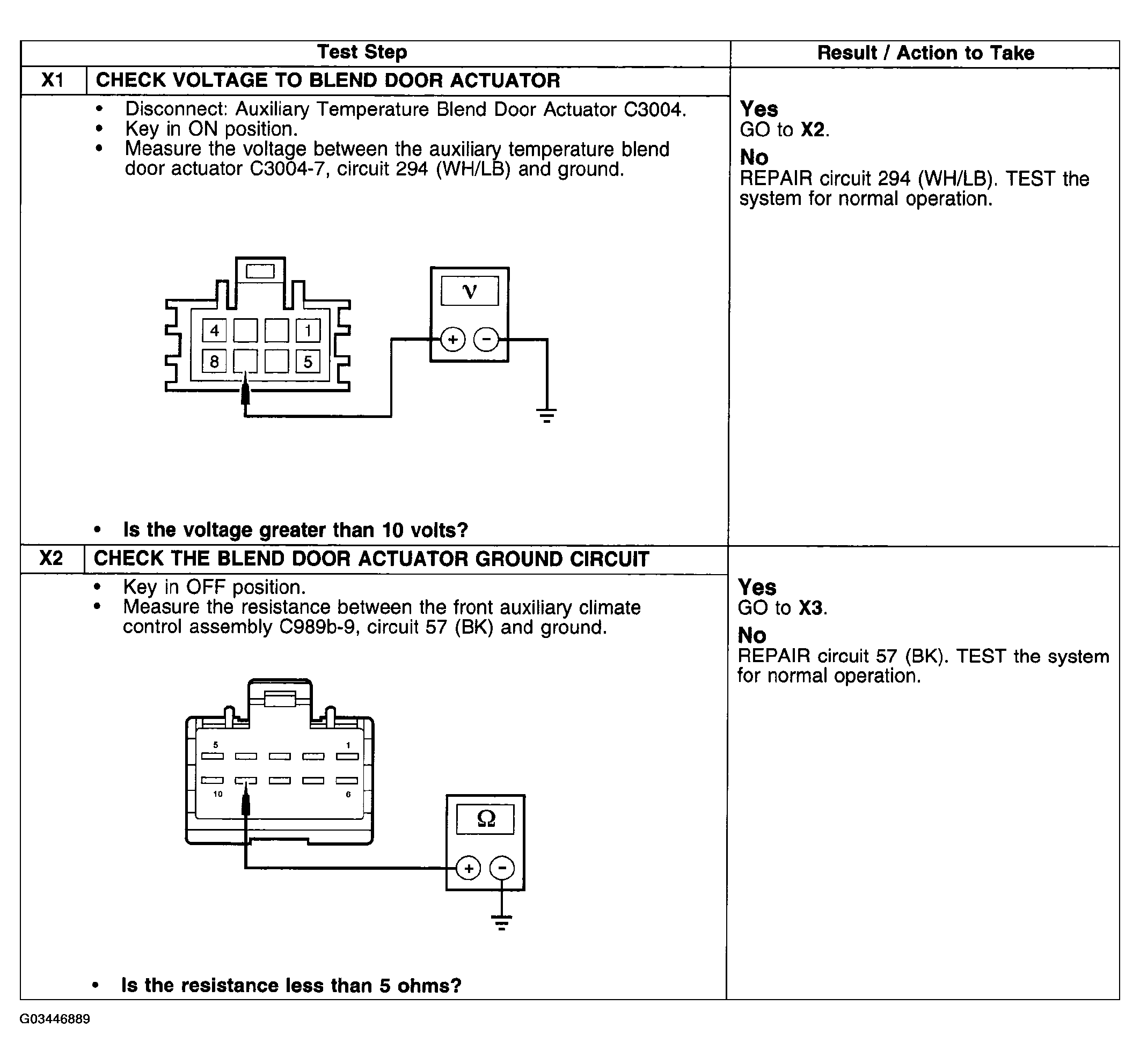

Fig 1: Pinpoint Test X: Temperature Control Is Inoperative Step (X1 To X2)

Courtesy of FORD MOTOR CO.

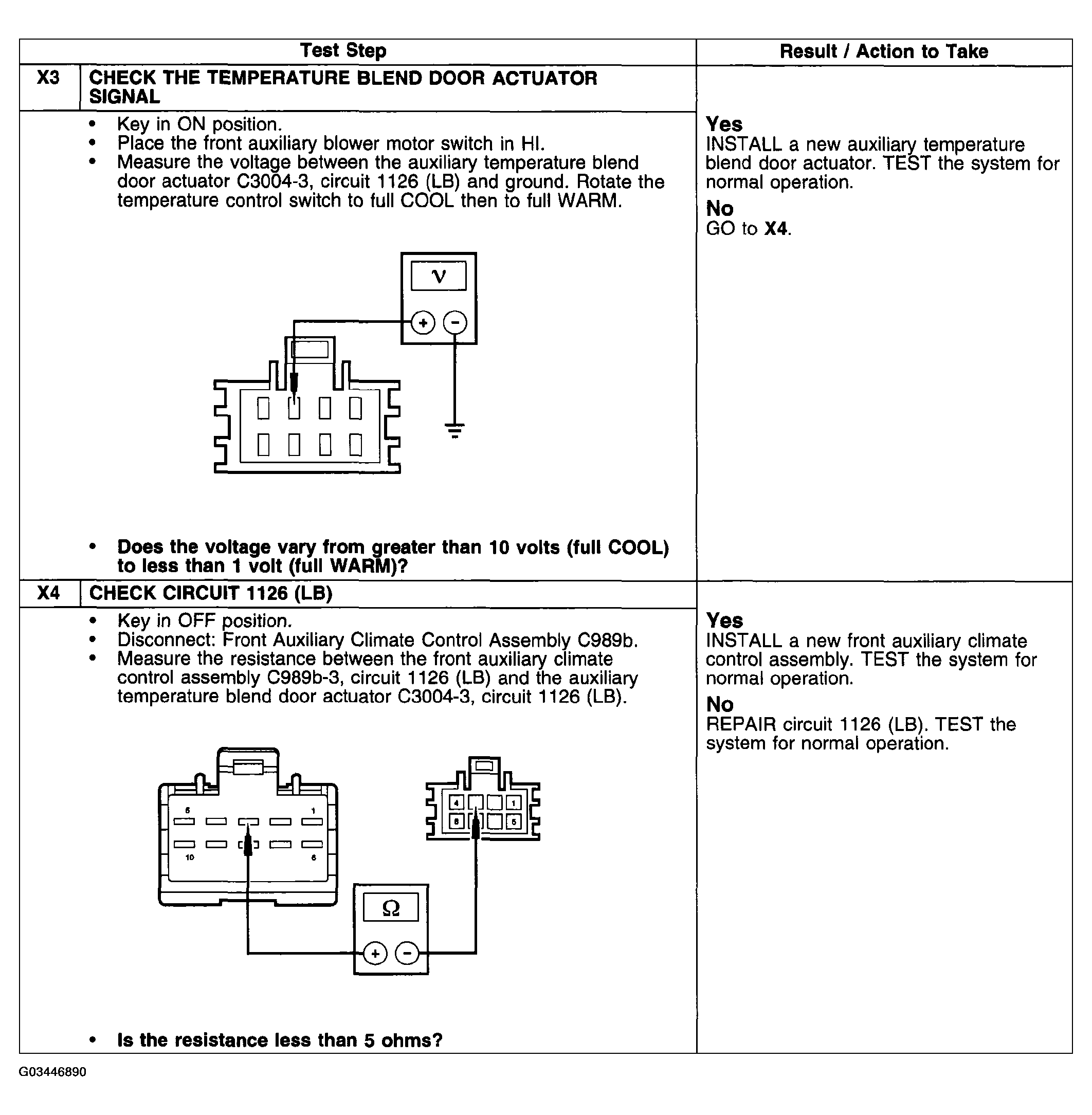

Fig 2: Pinpoint Test X: Temperature Control Is Inoperative Step (X3 To X4)

Courtesy of FORD MOTOR CO.
