Test K: Dual Temperature Control Is Inoperative/Does Not Operate Correctly

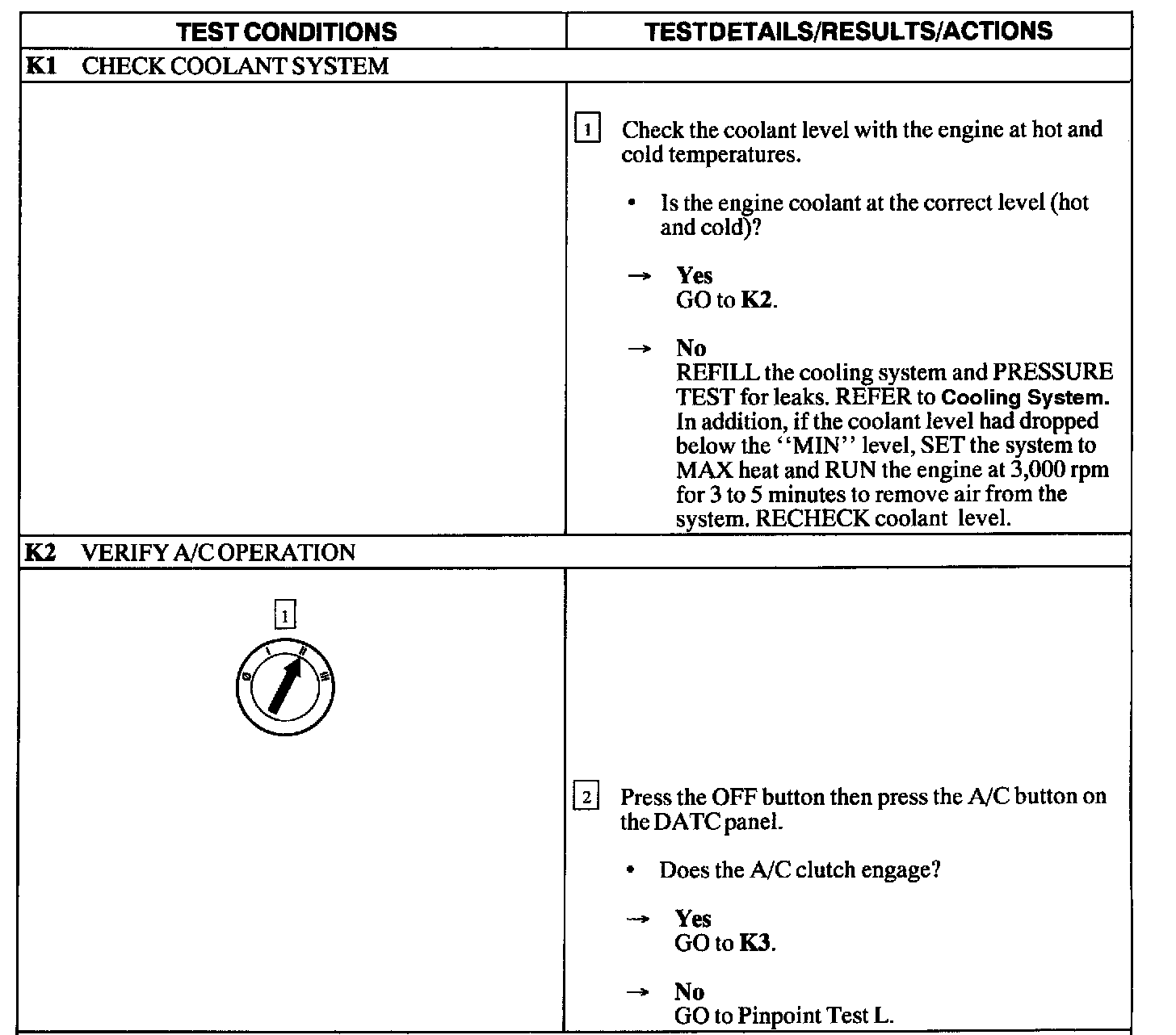

K1 - K2:

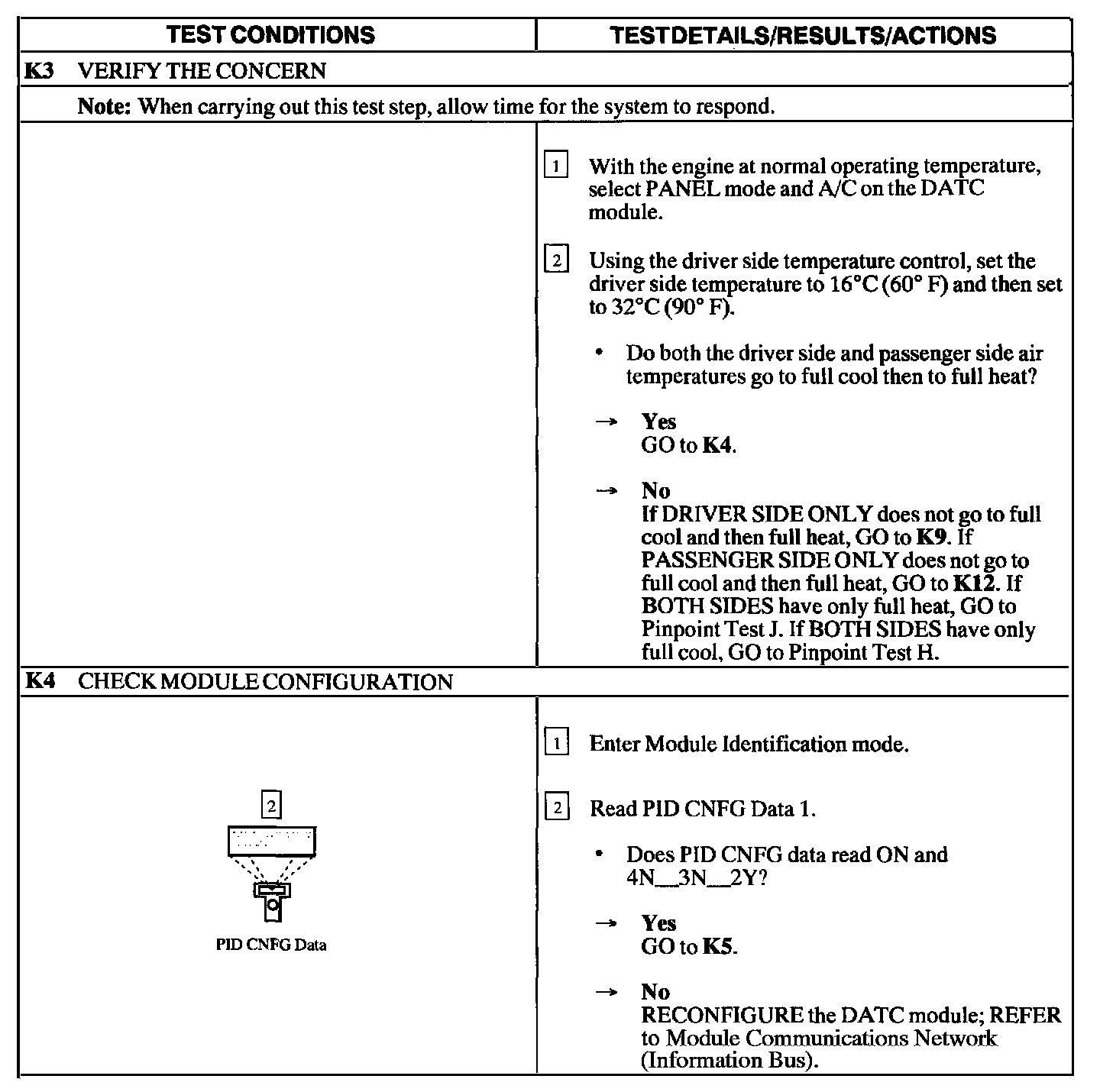

K3 - K4:

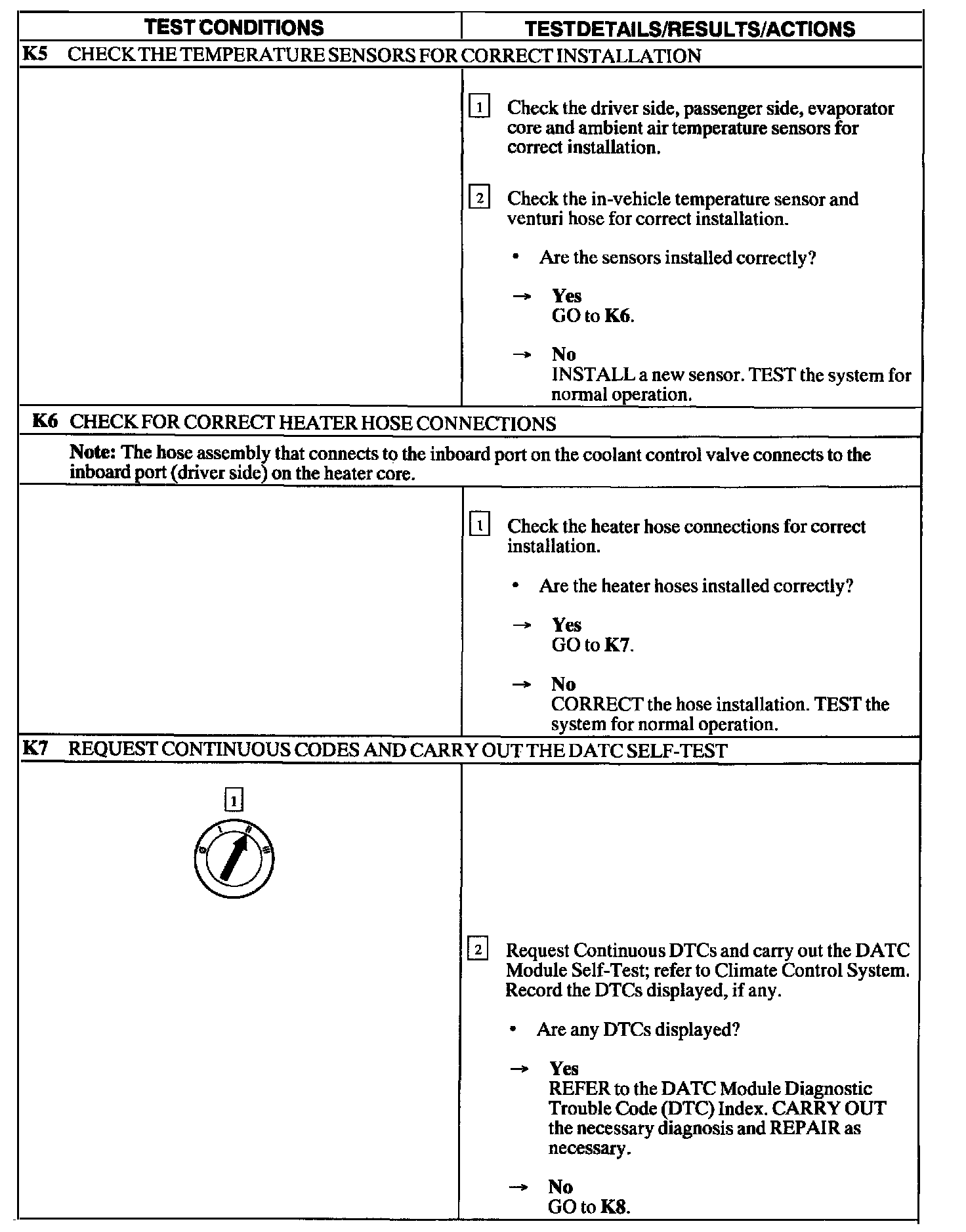

K5 - K7:

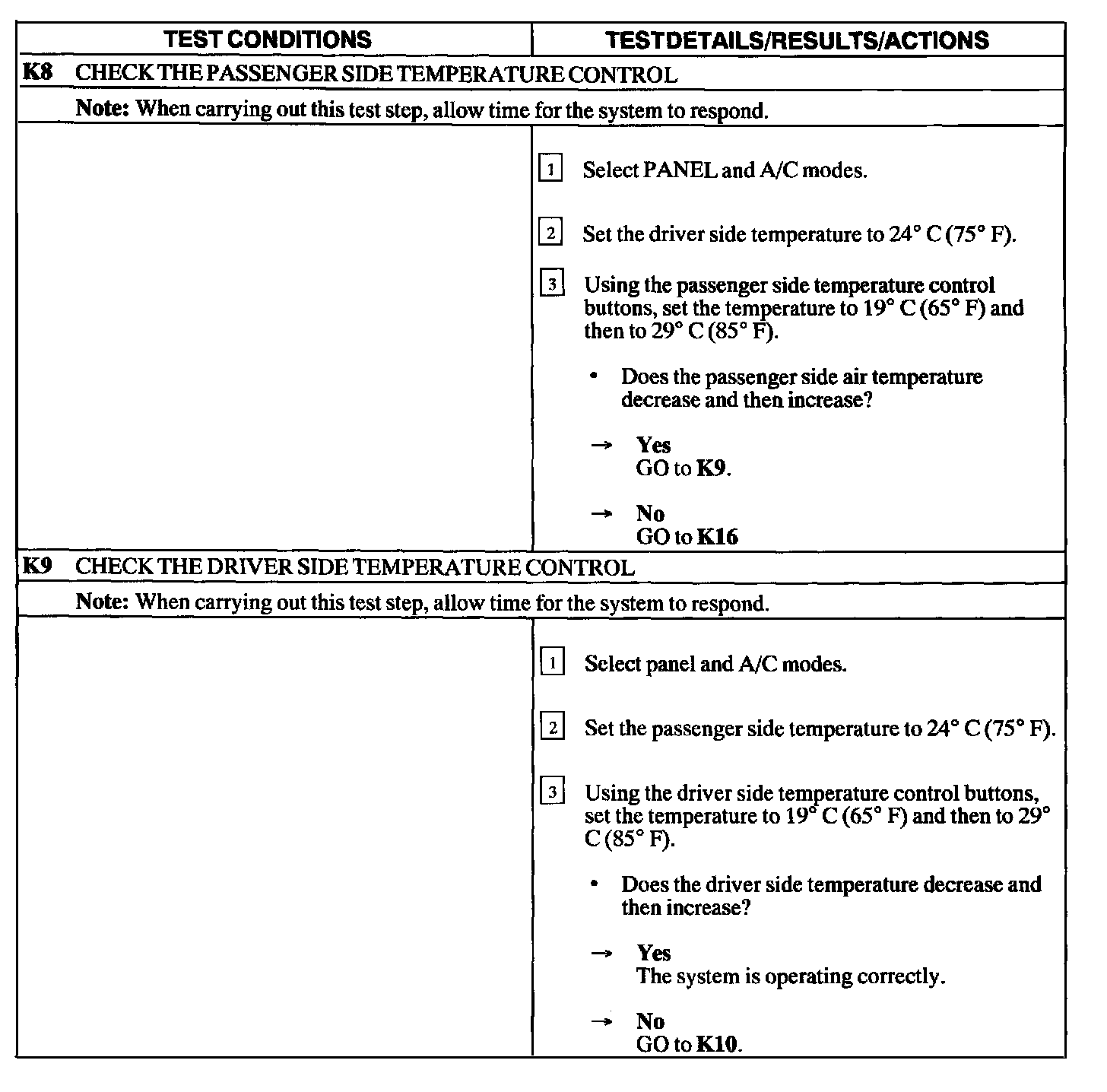

K8 - K9:

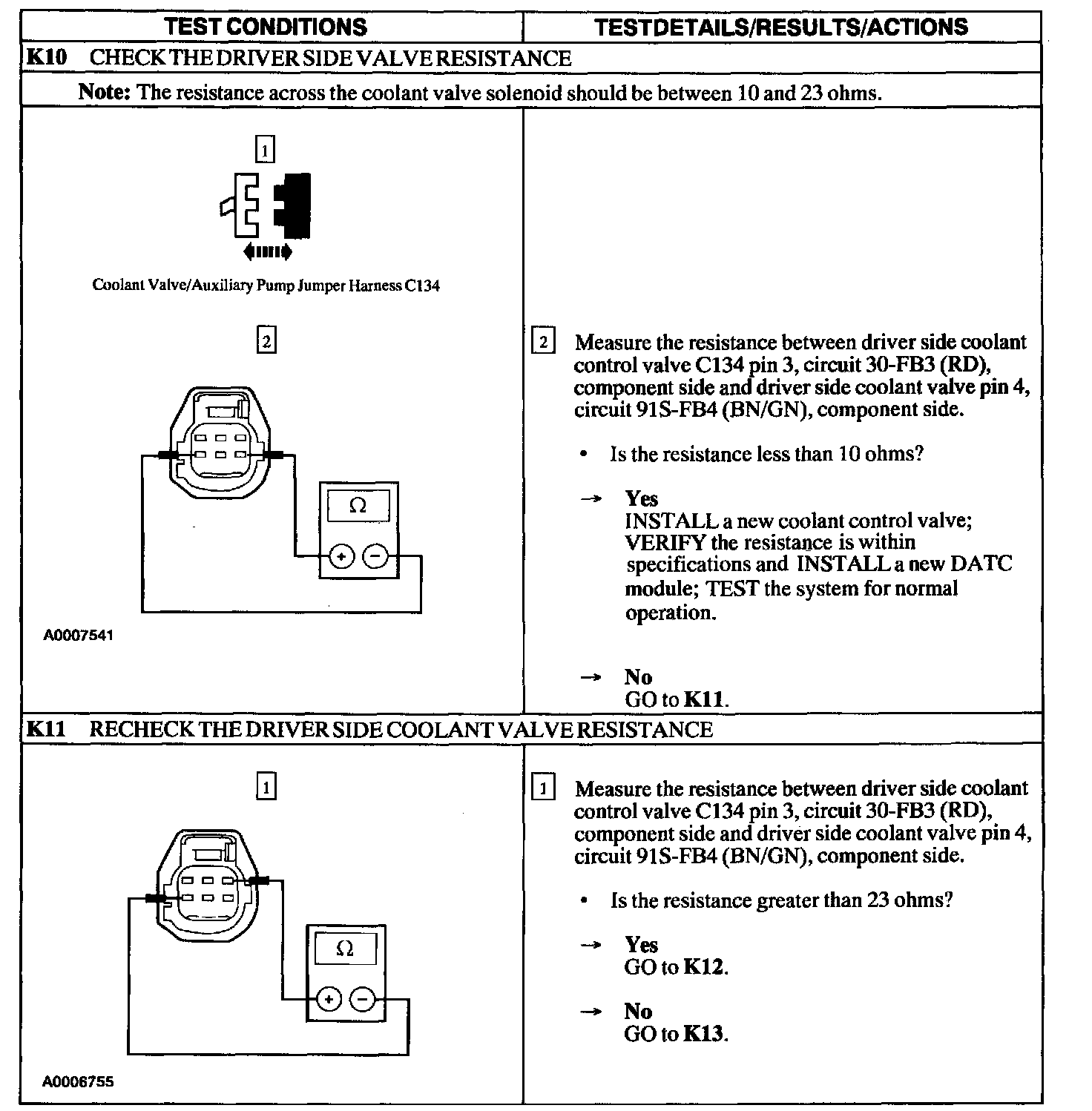

K10 - K11:

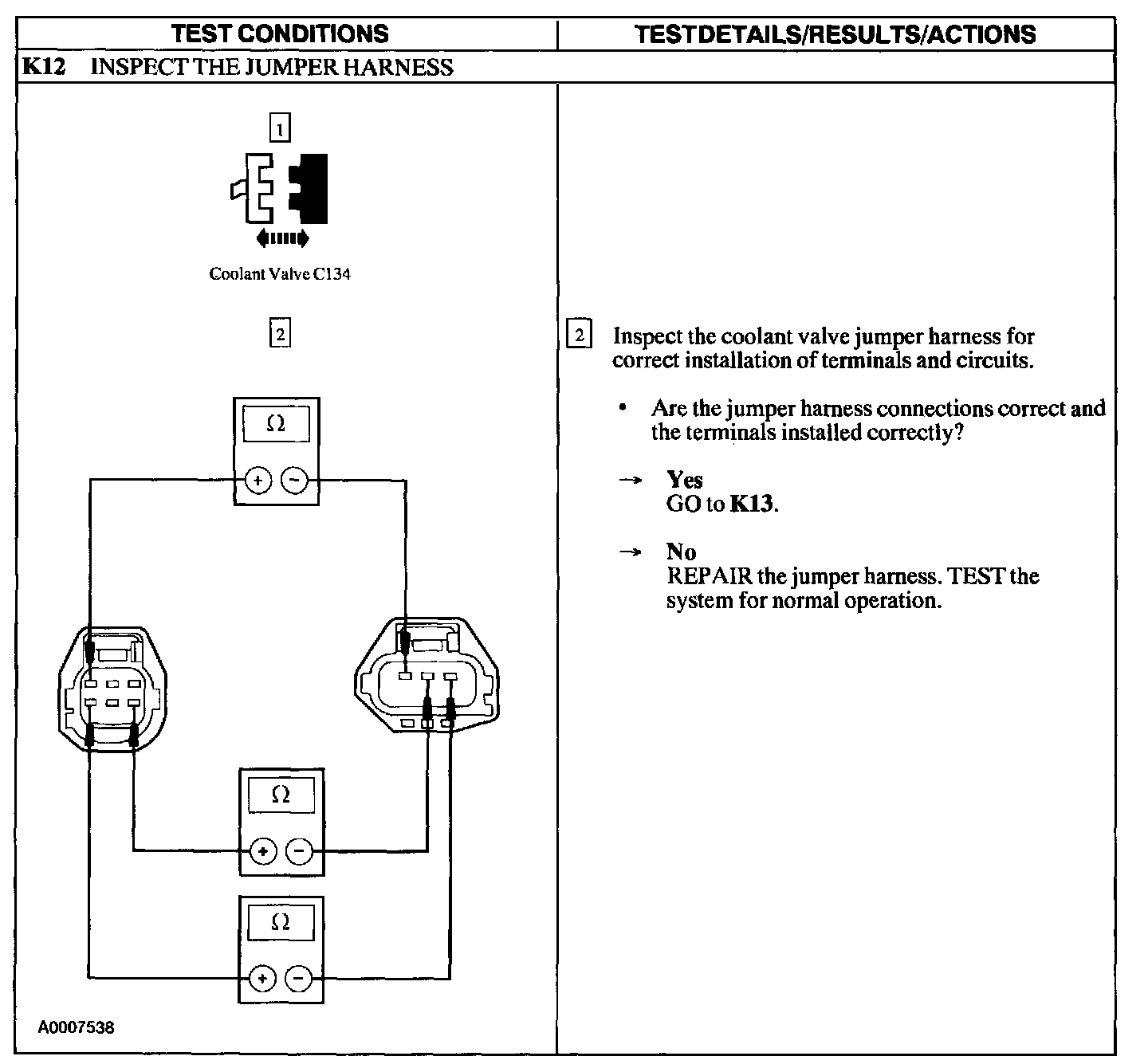

K12:

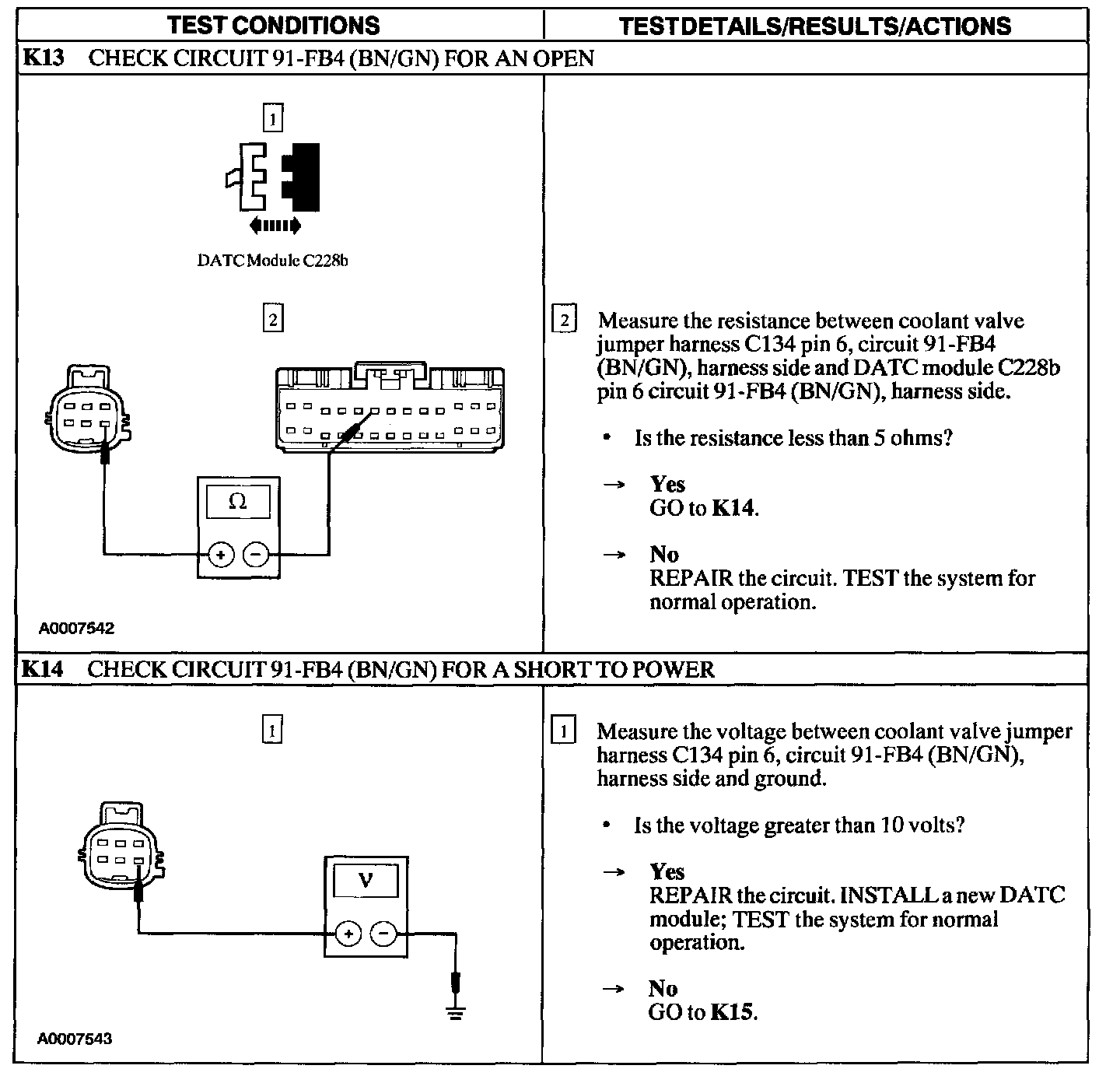

K13 - K14:

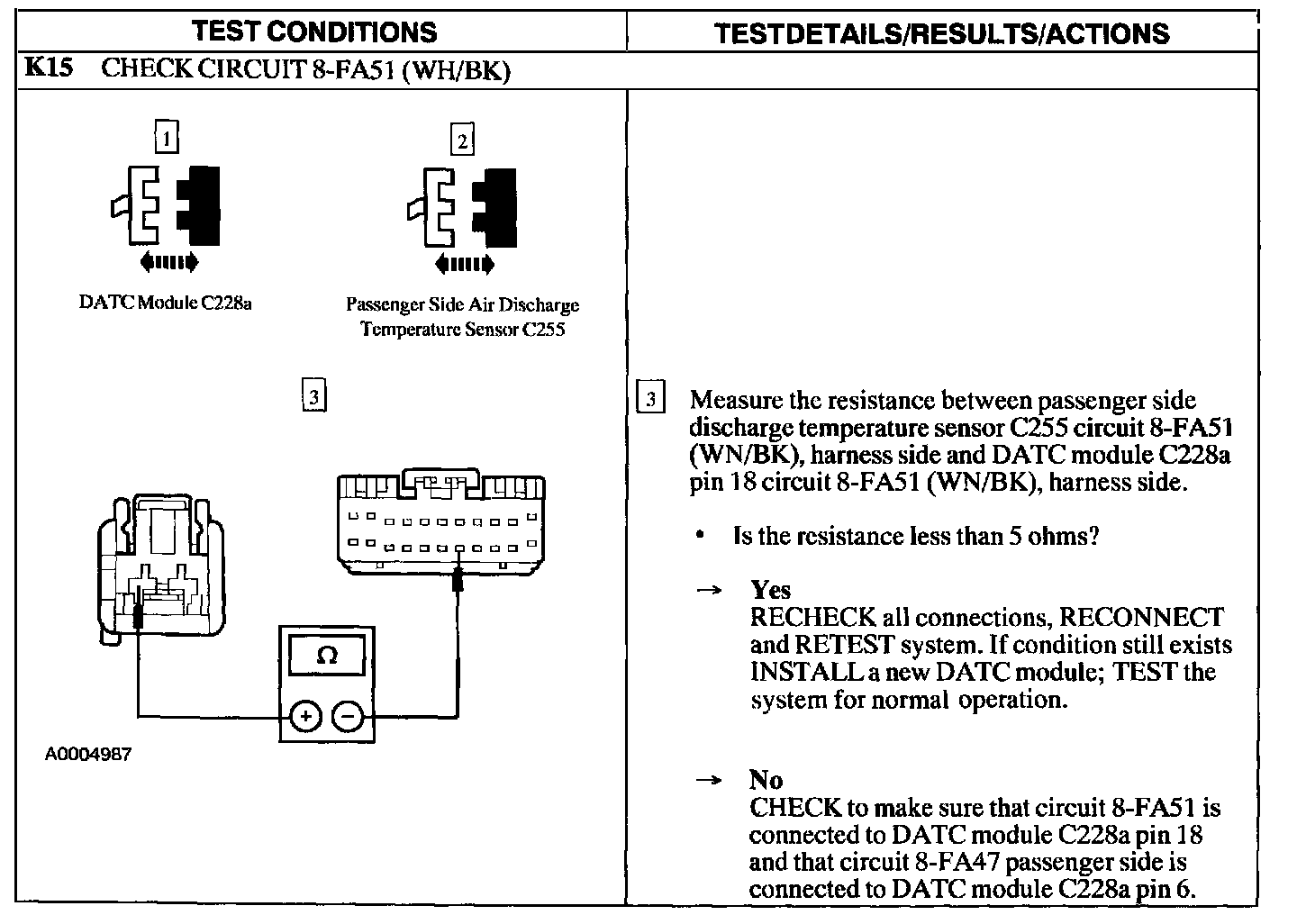

K15:

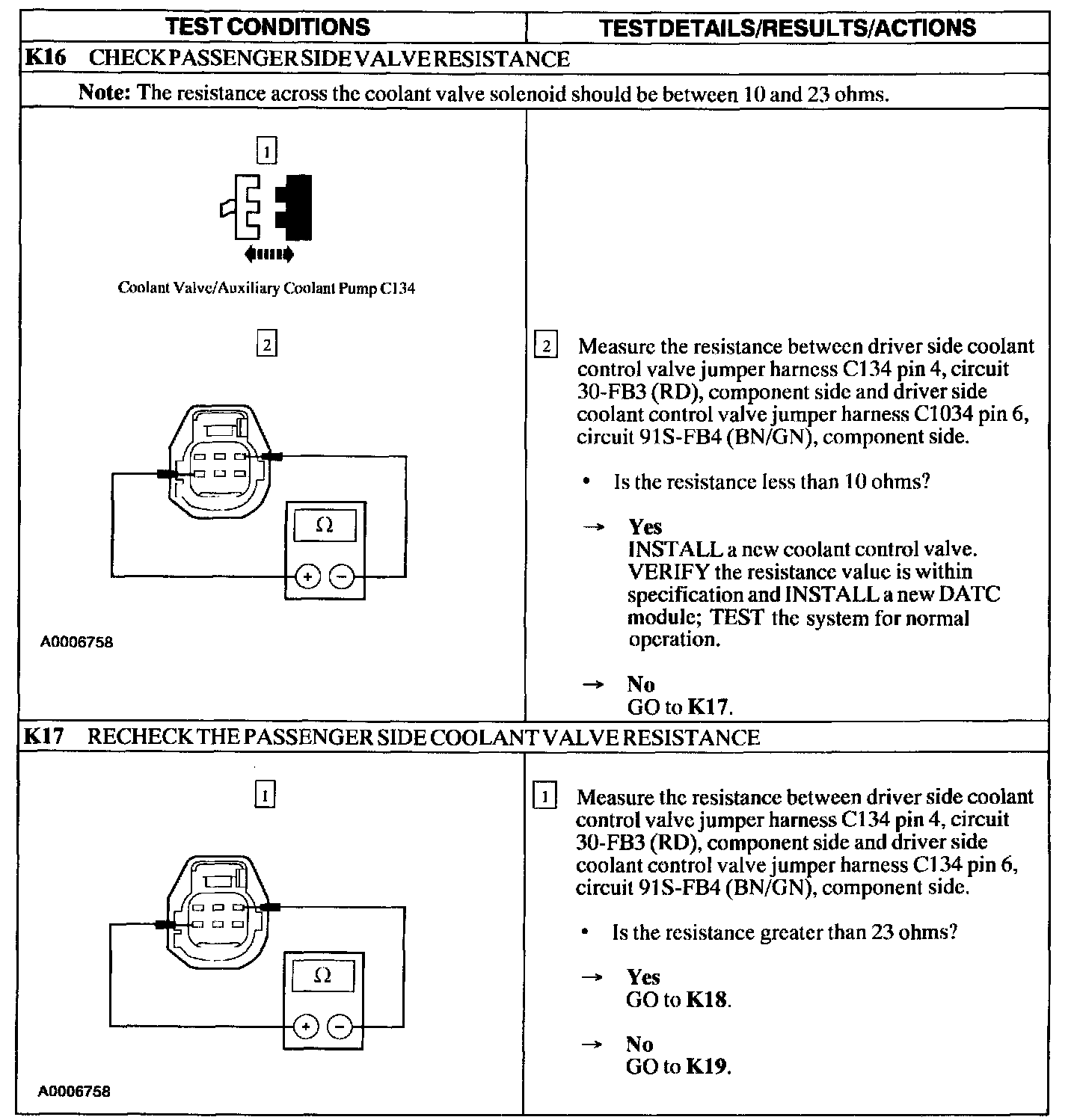

K16 - K17:

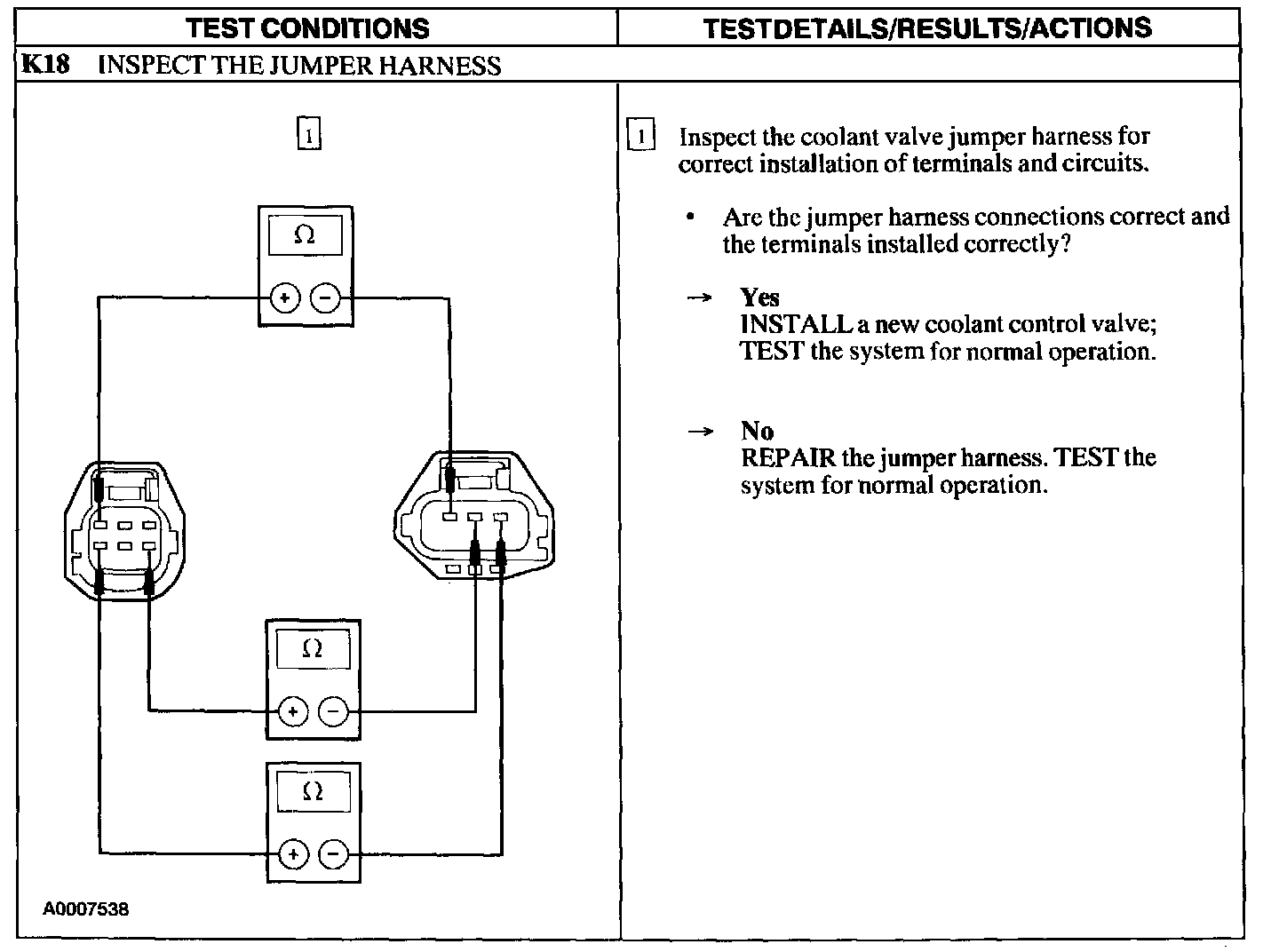

K18:

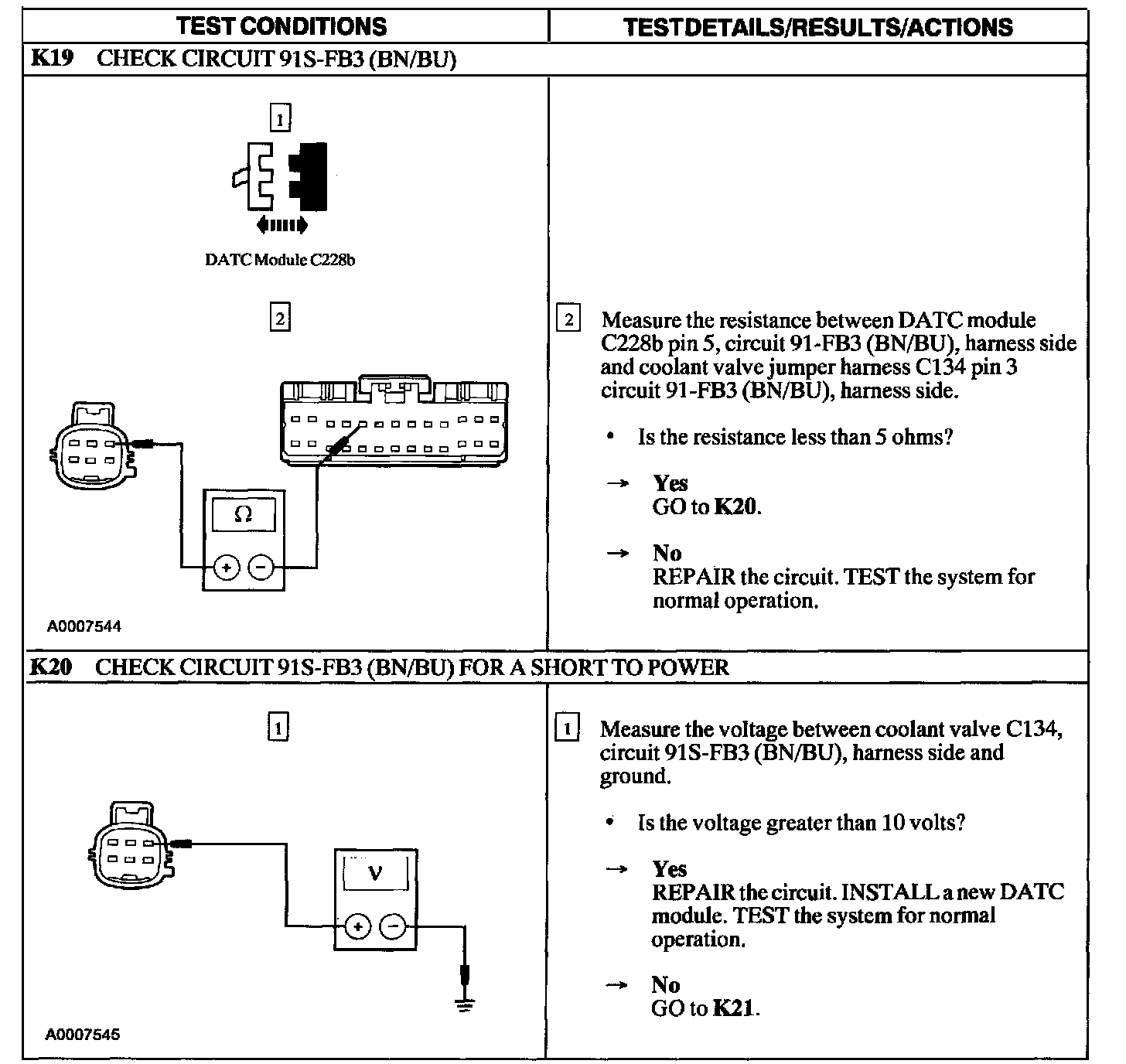

K19 - K20:

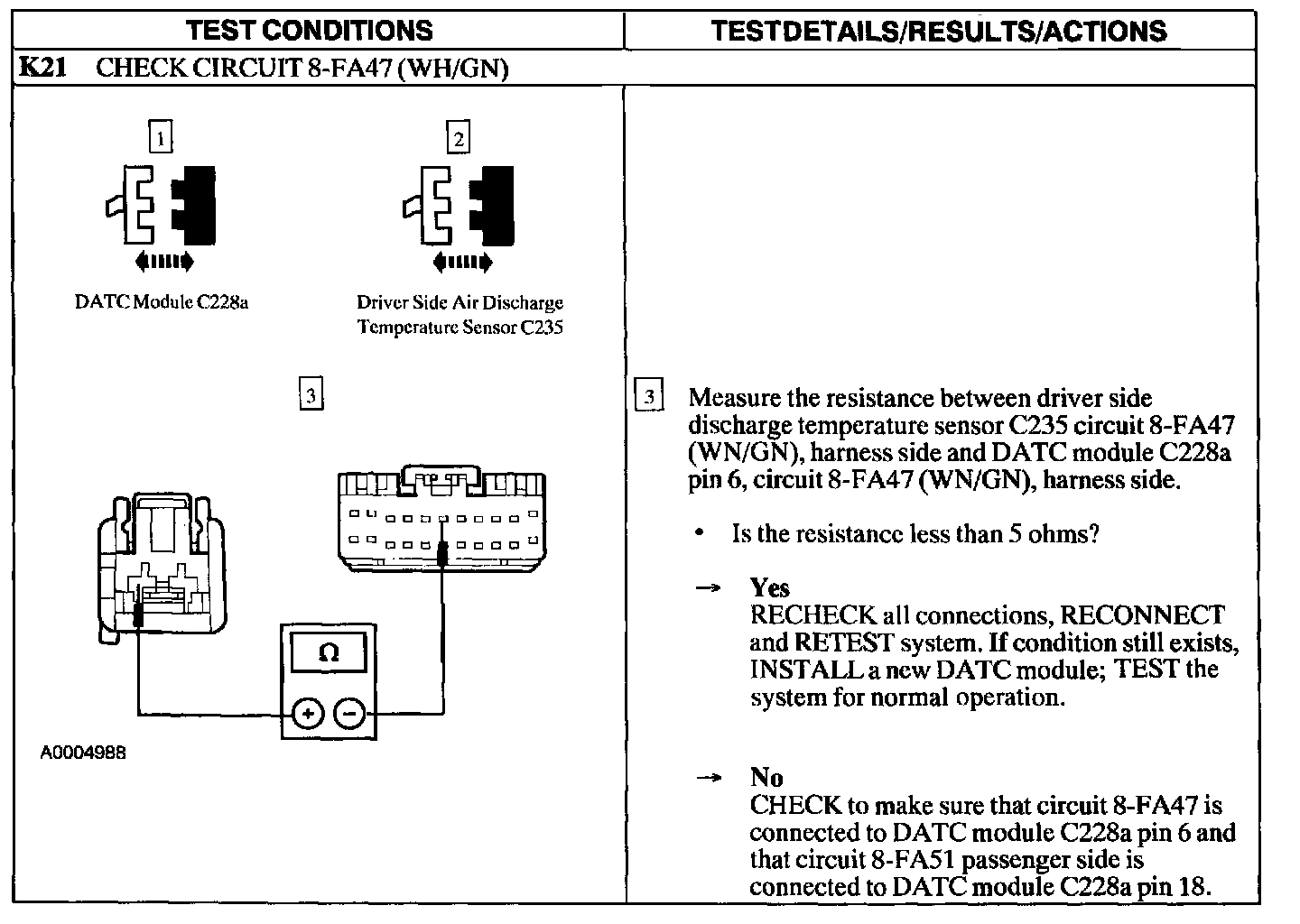

K21:
