Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the luggage compartment and position the LH trim near the rear seat release handle aside.
    Fig 1: Positioning Left Luggage Compartment Trim Aside
    G01275022Courtesy of FORD MOTOR CO.
  2. Remove the portable support electronics (PSE) module.
    1. Disconnect the electrical connector.
    2. Remove the nuts.

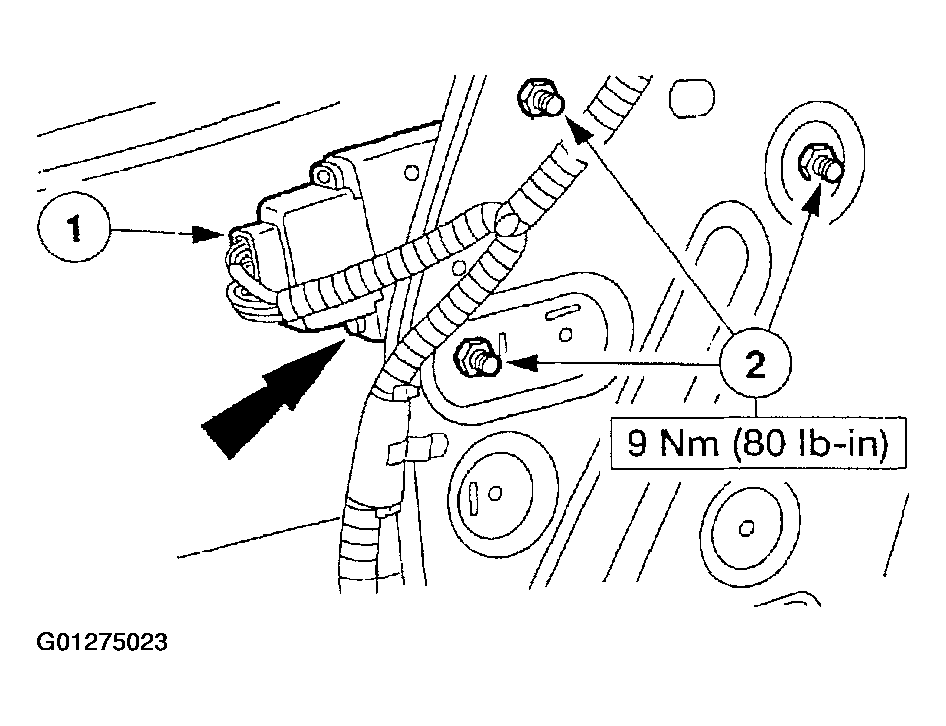

    Fig 2: Removing PSE Module
    G01275023Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
