Engine Controls - Tests W/Codes - EEC-V
>>
Diagnostic Trouble Code (DTC) Definition Charts
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Trouble Code (DTC) Definition Charts

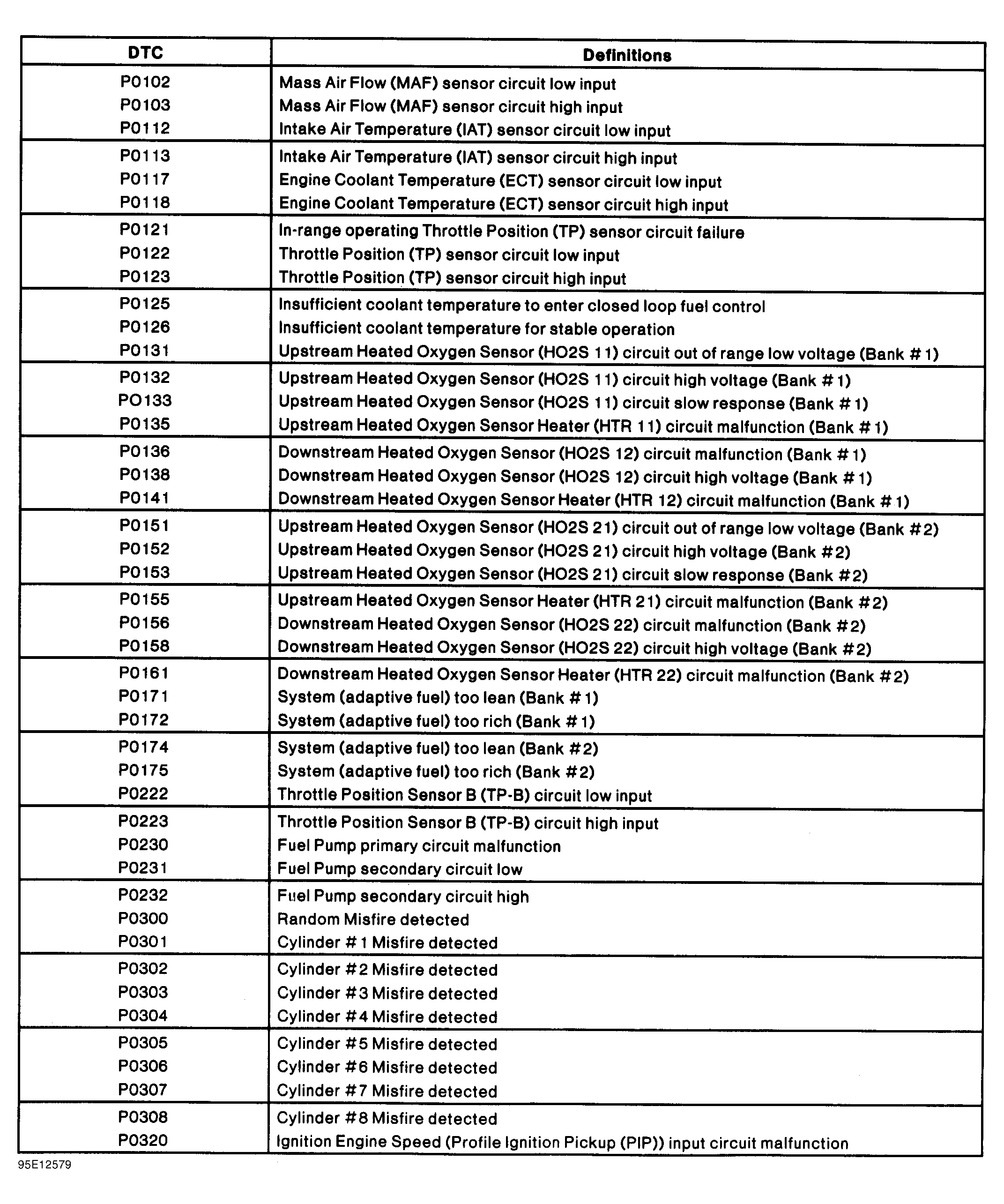

Fig 1: Diagnostic Trouble Code (DTC) Definition Chart (1 of 4)
Courtesy of FORD MOTOR CO.

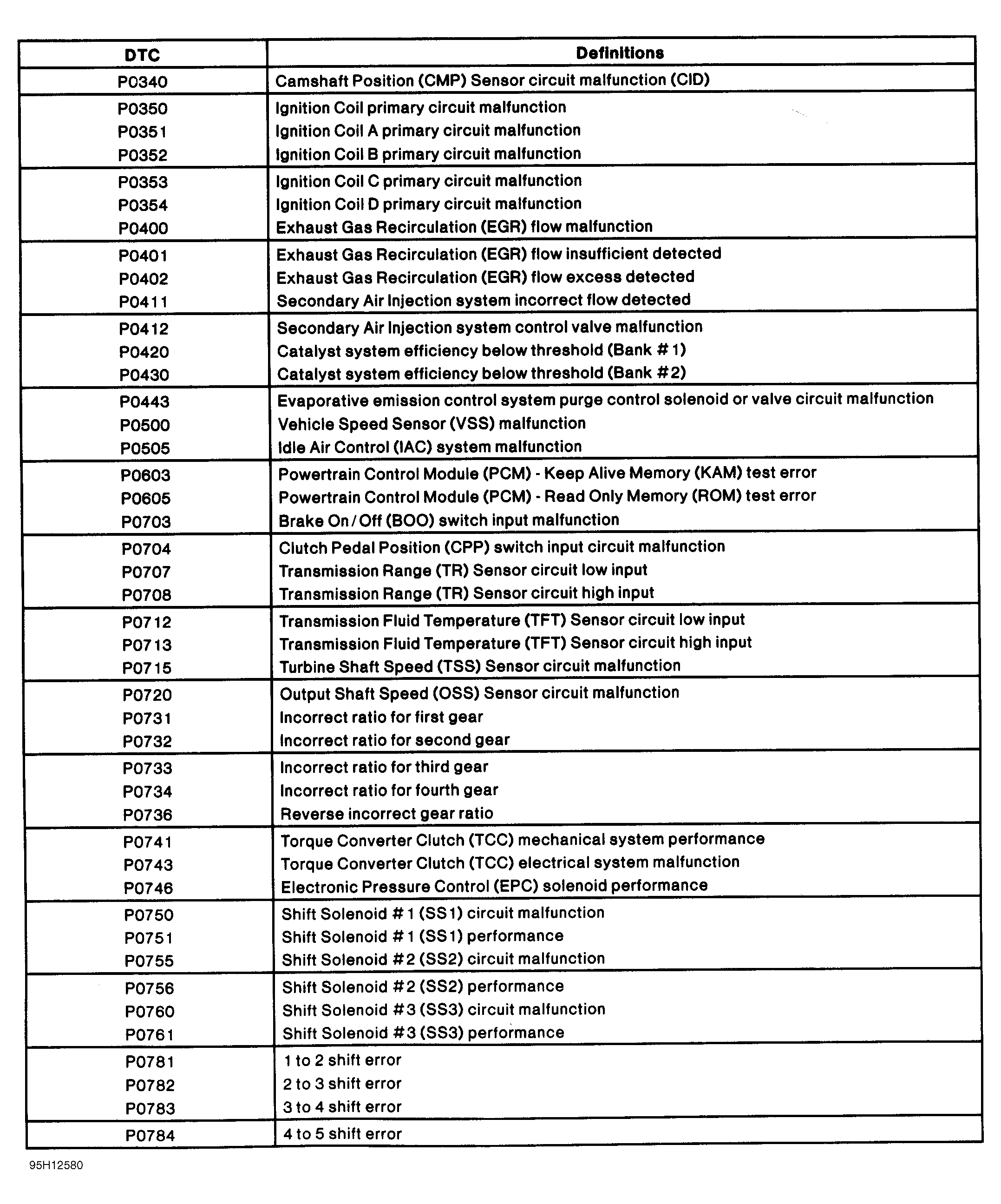

Fig 2: Diagnostic Trouble Code (DTC) Definition Chart (2 of 4)
Courtesy of FORD MOTOR CO.

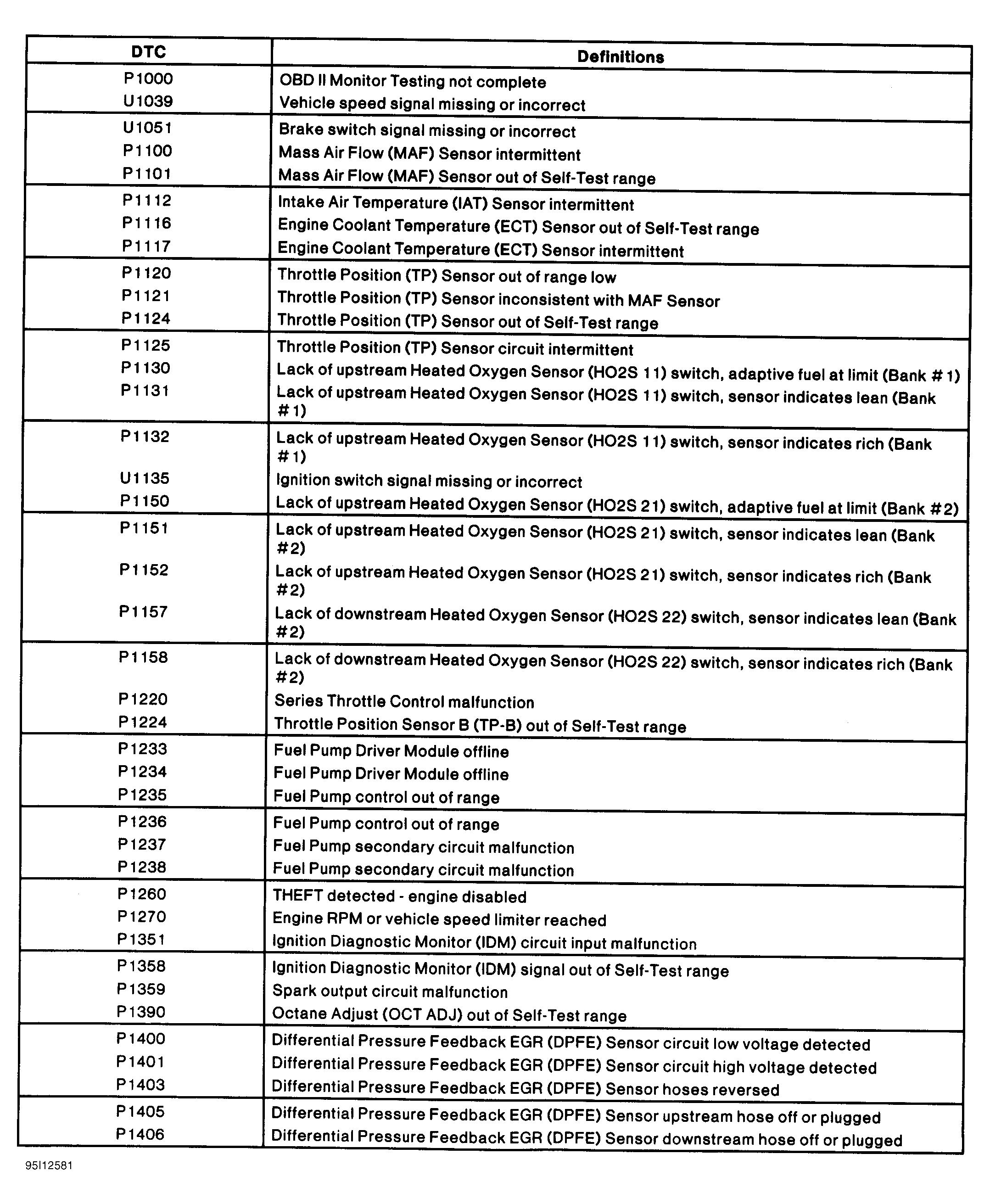

Fig 3: Diagnostic Trouble Code (DTC) Definition Chart (3 of 4)
Courtesy of FORD MOTOR CO.

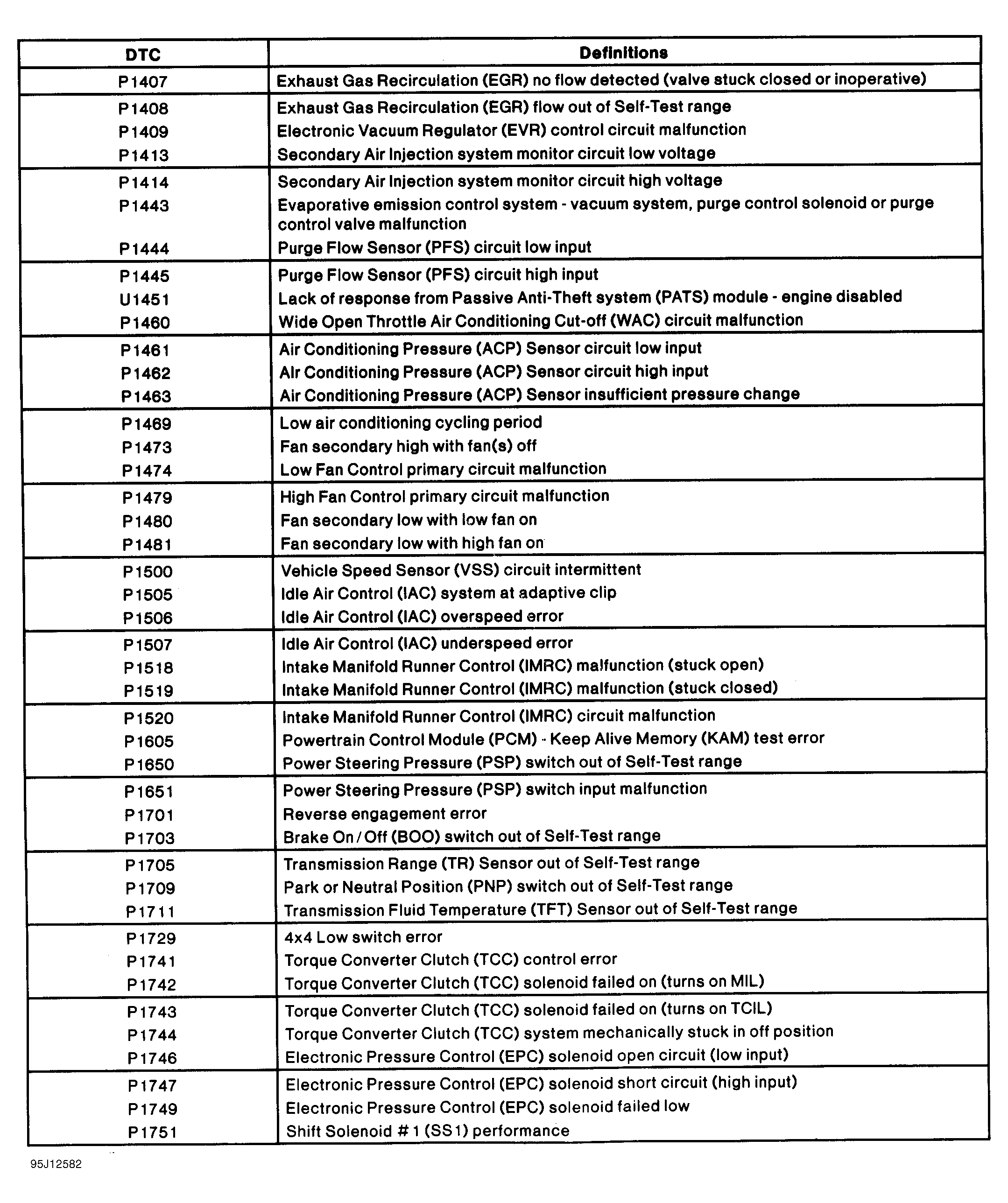

Fig 4: Diagnostic Trouble Code (DTC) Definition Chart (4 of 4)
Courtesy of FORD MOTOR CO.
