Engine Control Module

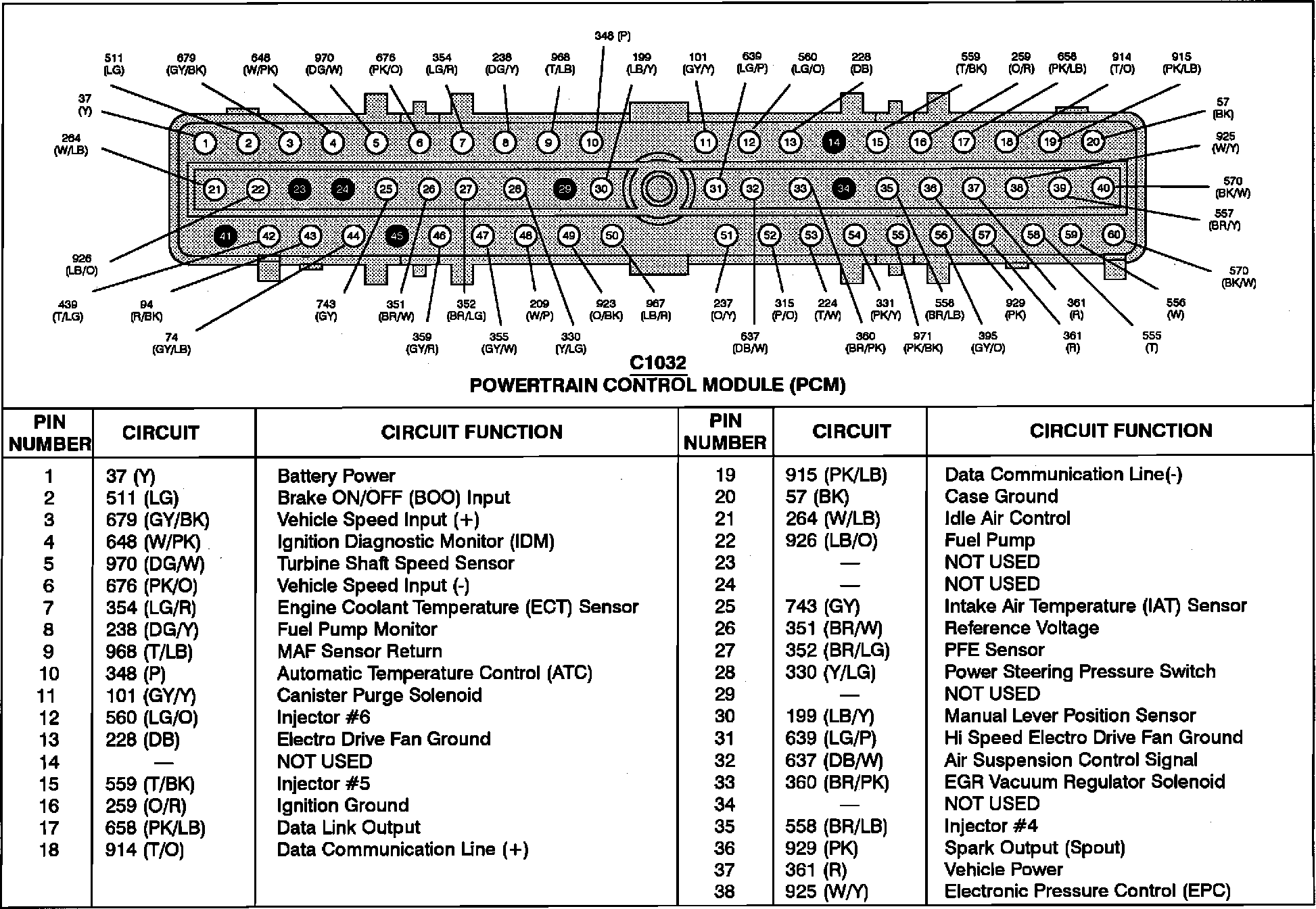

Powertrain Control Module (PCM) C-1032:

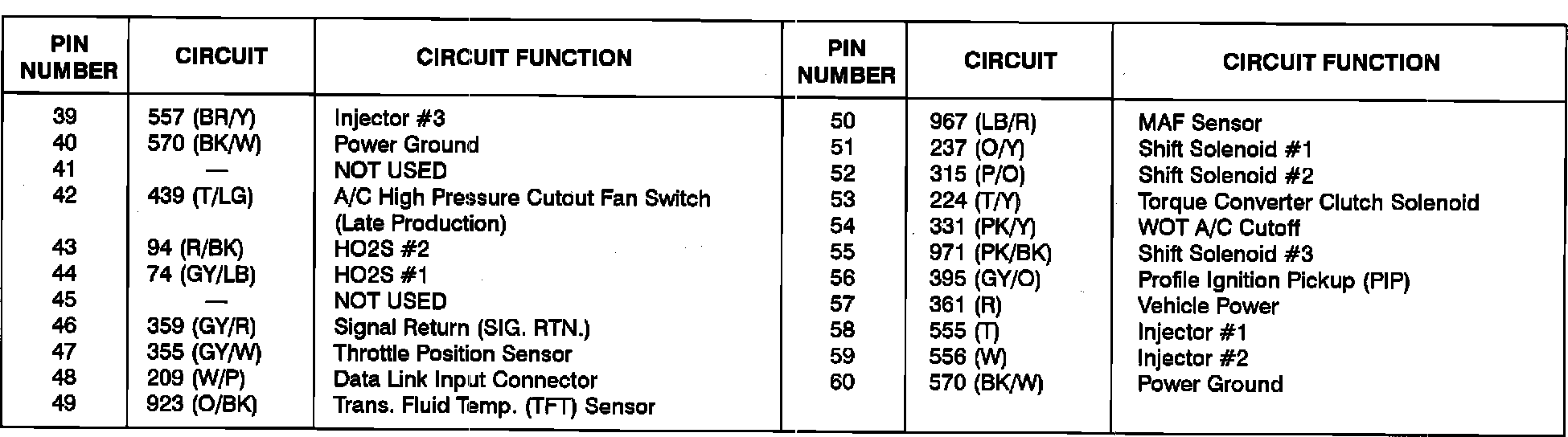

Powertrain Control Module (PCM) Pinout Chart:
