Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

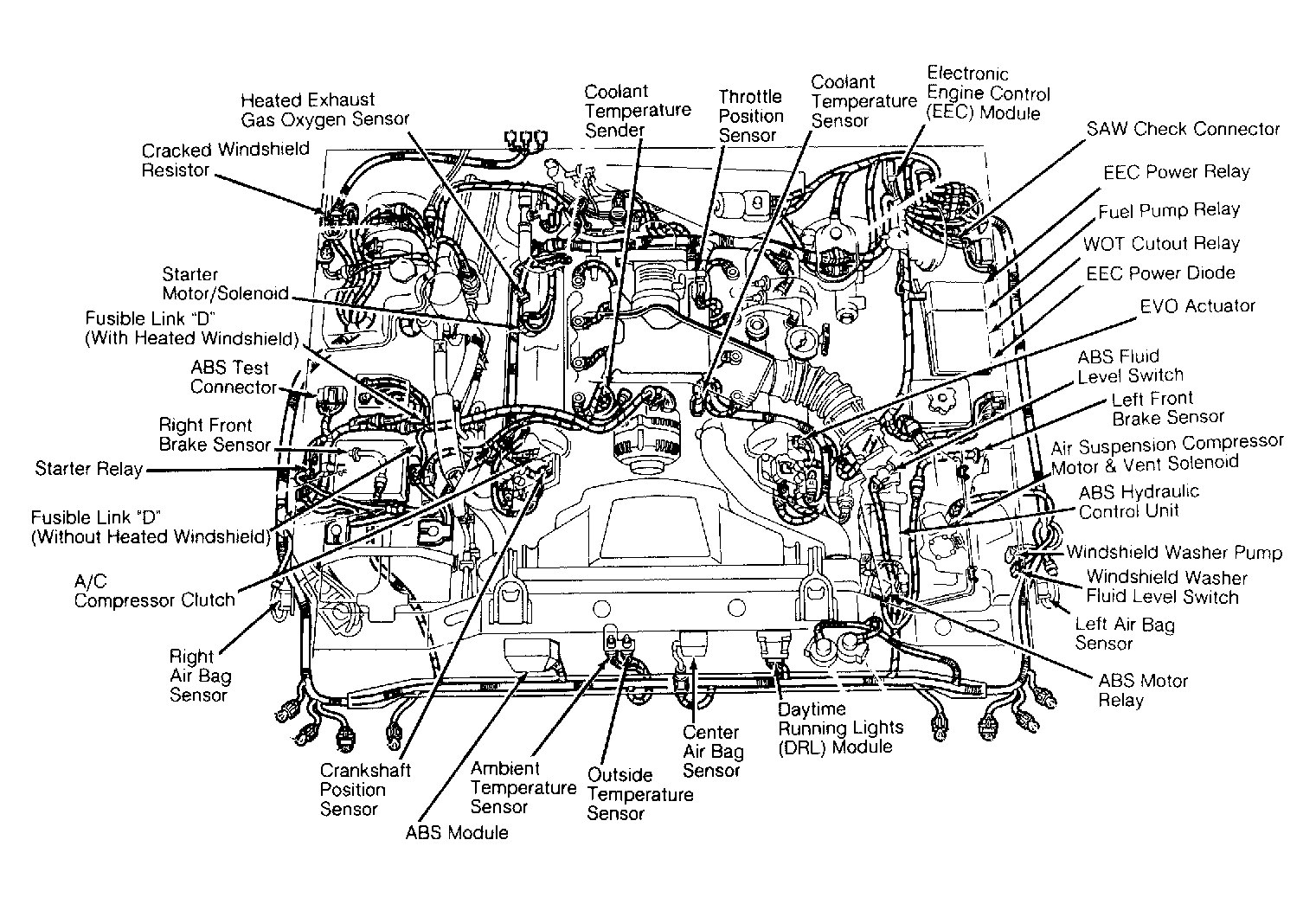

| ABS Hydraulic Control Unit | Lower left front of engine bay. See Figure . |
| ABS Module | Right front of engine bay, under radiator support. See Figure . |
| A/C-Heater Control Module | Behind center of instrument panel. See Figure . |
| Air Bag Diagnostic Module | Behind left side of dash, above warning chime module. See Figure . |
| Air Suspension/Variable Assist Power Steering Module | On right rear quarter panel, in trunk. |
| Antenna Module | In luggage compartment, above antenna motor. |
| Anti-Theft Module | Behind right front kick panel. |
| Blower Motor Controller | On A/C evaporator. See Figure . |
| Electronic Engine Control (EEC) Module | On left side of firewall. See Figure . |
| Electronic Distributorless Ignition System (EDIS) Module | On right front fender apron. See Figure . |
| Heated Windshield Module | On hinge support, right front of luggage compartment. |
| Keyless Entry Module | Behind right kick panel, behind insulator. |
| Memory Seat Module | Under left front seat. |
| Message Center Switch Module | Under instrument panel, right side of instrument cluster. See Figure . |
| Rear Window Defroster Controller | At center of dash, above radio. |
| Warning Chime Module | Behind center of dash, to left of radio. See Figure . |
| Warning Lights Module | Behind top left side of dash, near steering column. See Figure . |
