Engine Control Module

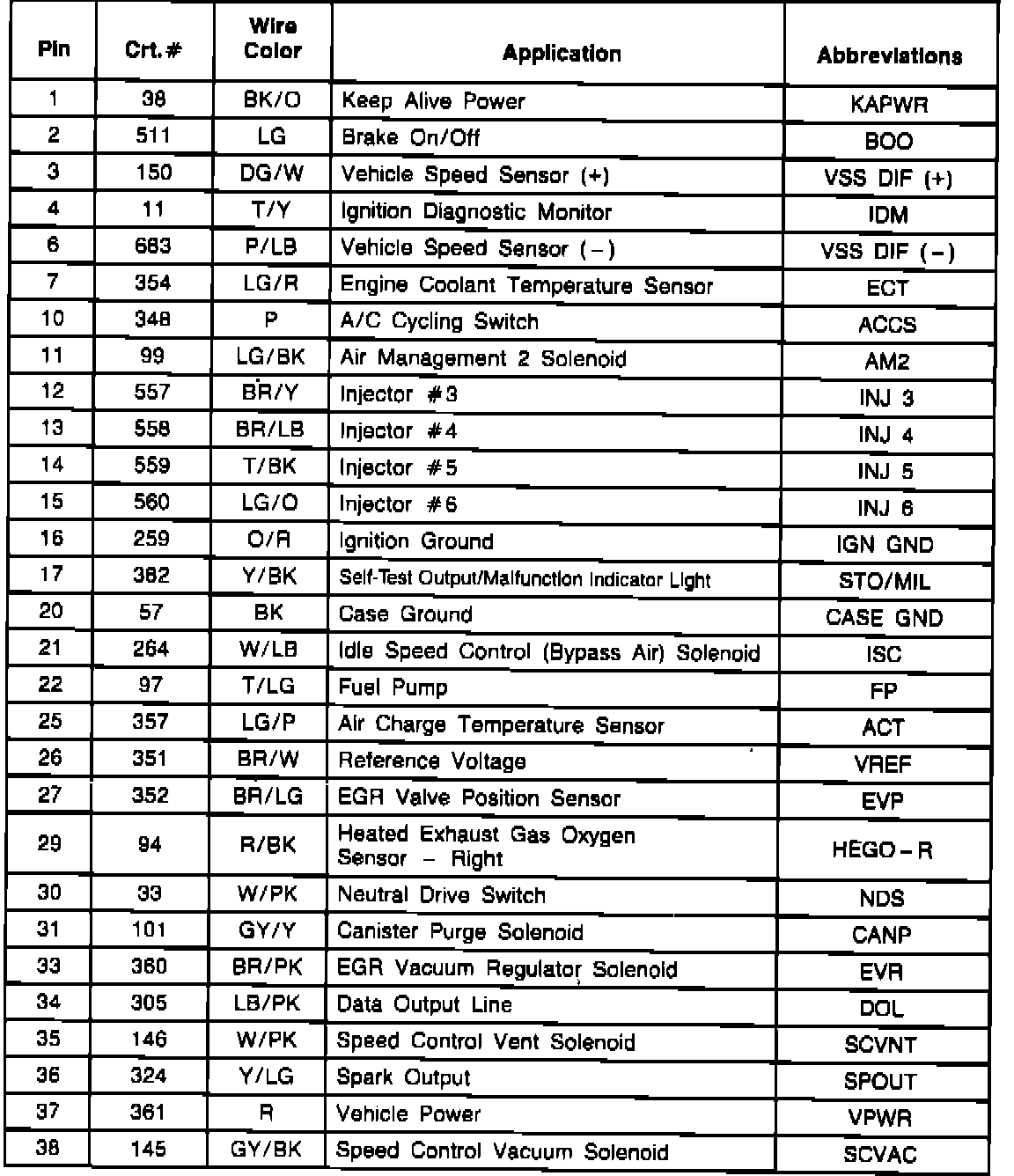

Electronic Control Assembly (ECA) Connector Pinout:

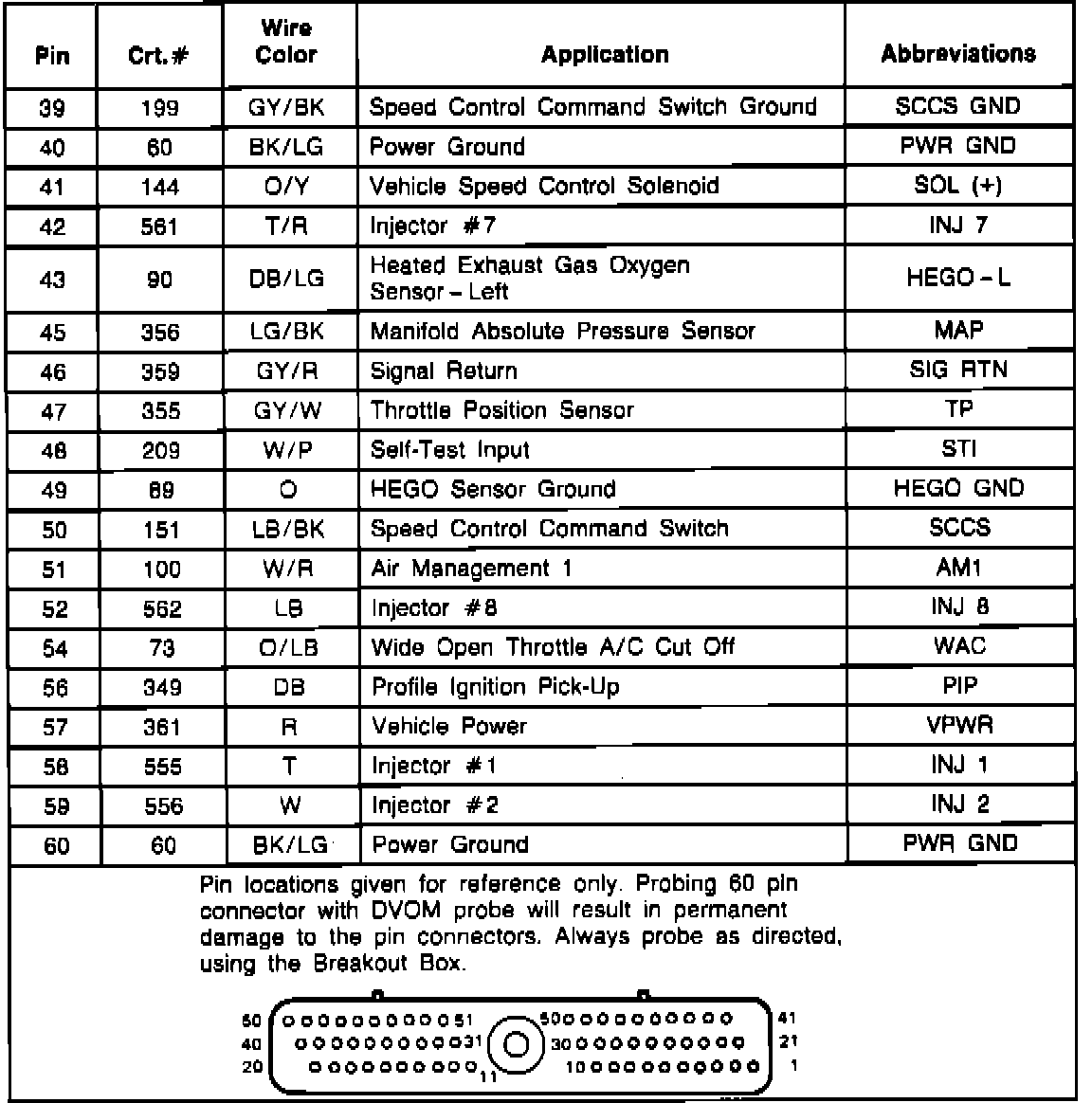

Electronic Control Assembly (ECA) Connector Pinout:
