Home >> Lincoln >> 1991 >> Continental V6-232 3.8L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Starting and Charging >> Charging System Relay >> Locations

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Charging System Relay: Locations

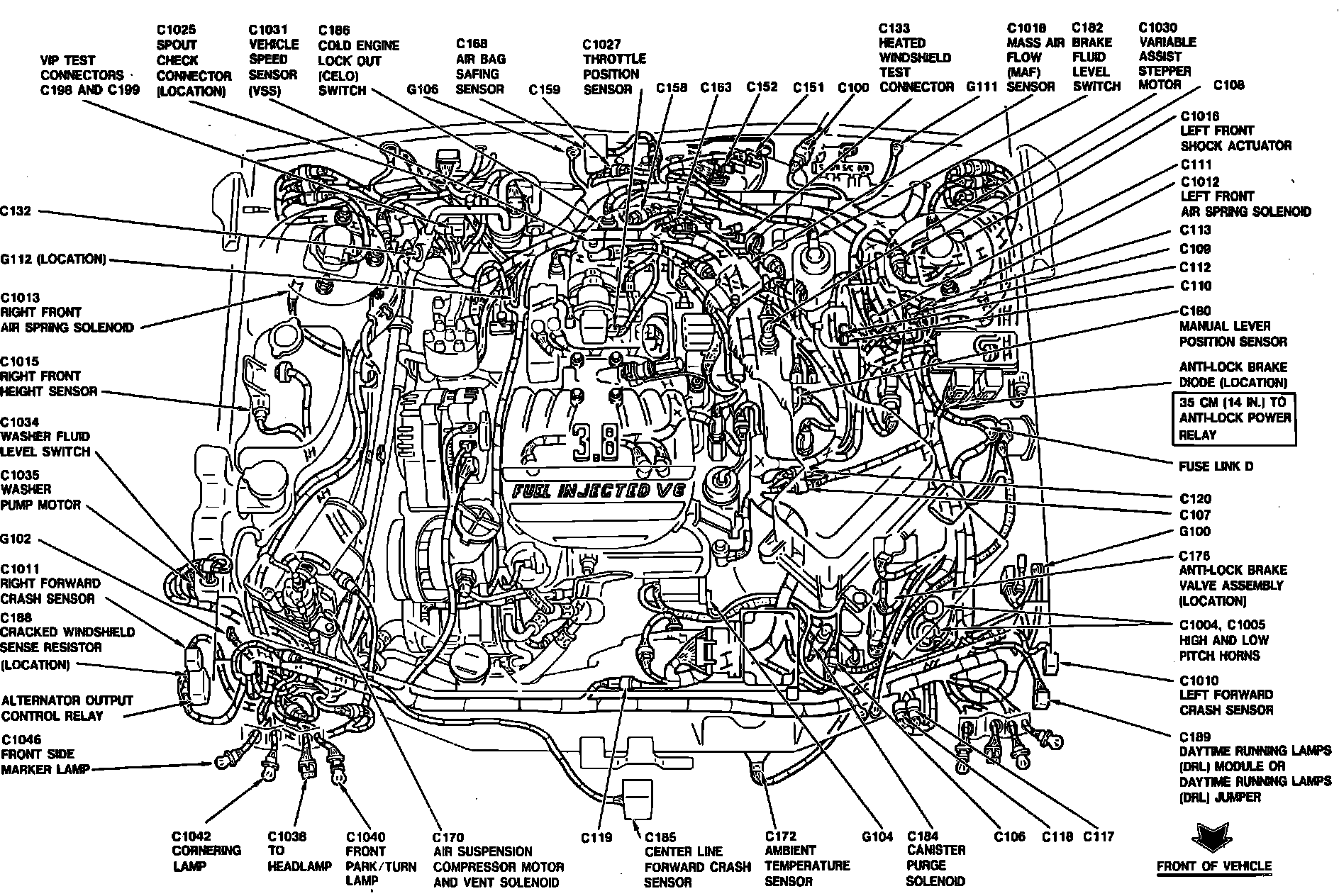

Engine Compartment Component Locations:

In Front Of RH Fender
