Firing Order & Timing Marks

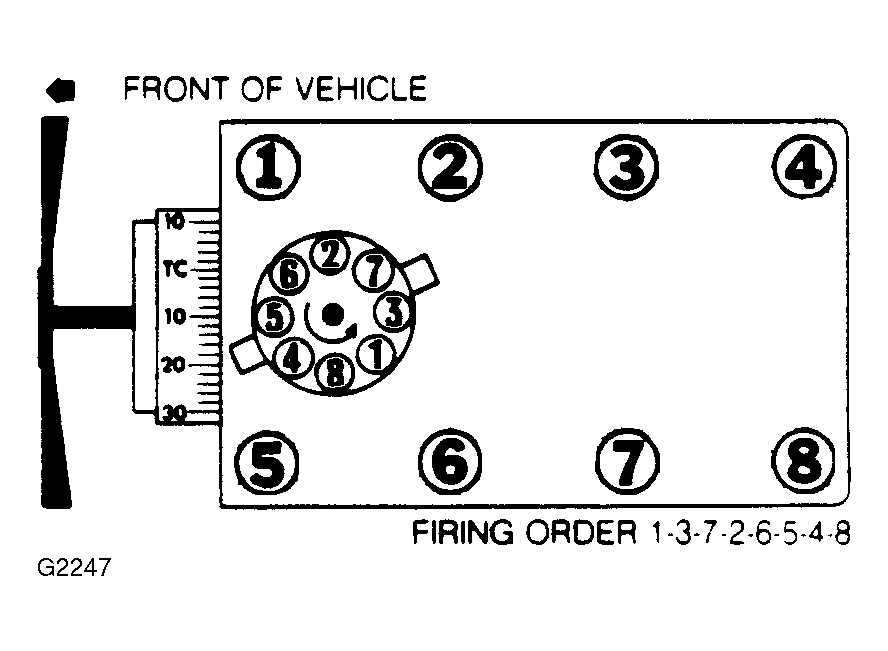

Fig 1: 5.0L H.O. & 5.8L 2-Bbl. Firing Order & Timing Marks
G2247

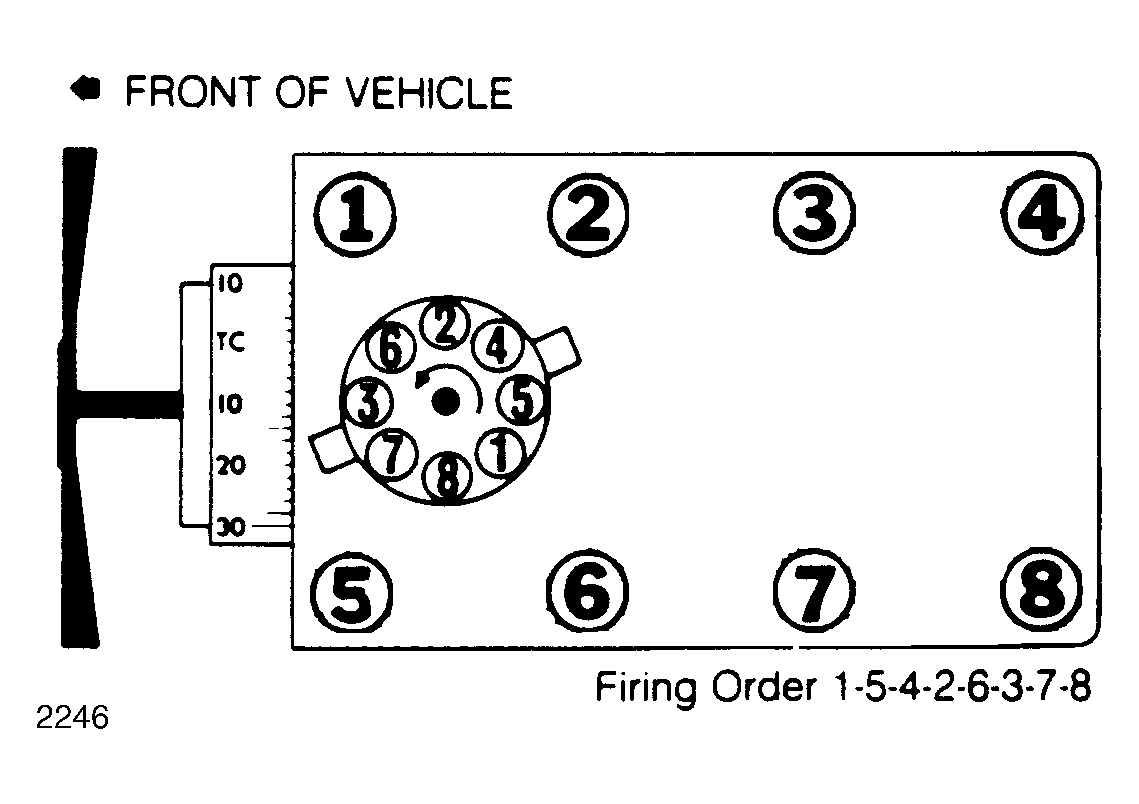

Fig 2: 5.0L SEFI (Non-H.O.) Firing Order & Timing Marks
G2246
