Wiring Diagrams

Fig 1: ECA Connector Pin Diagram

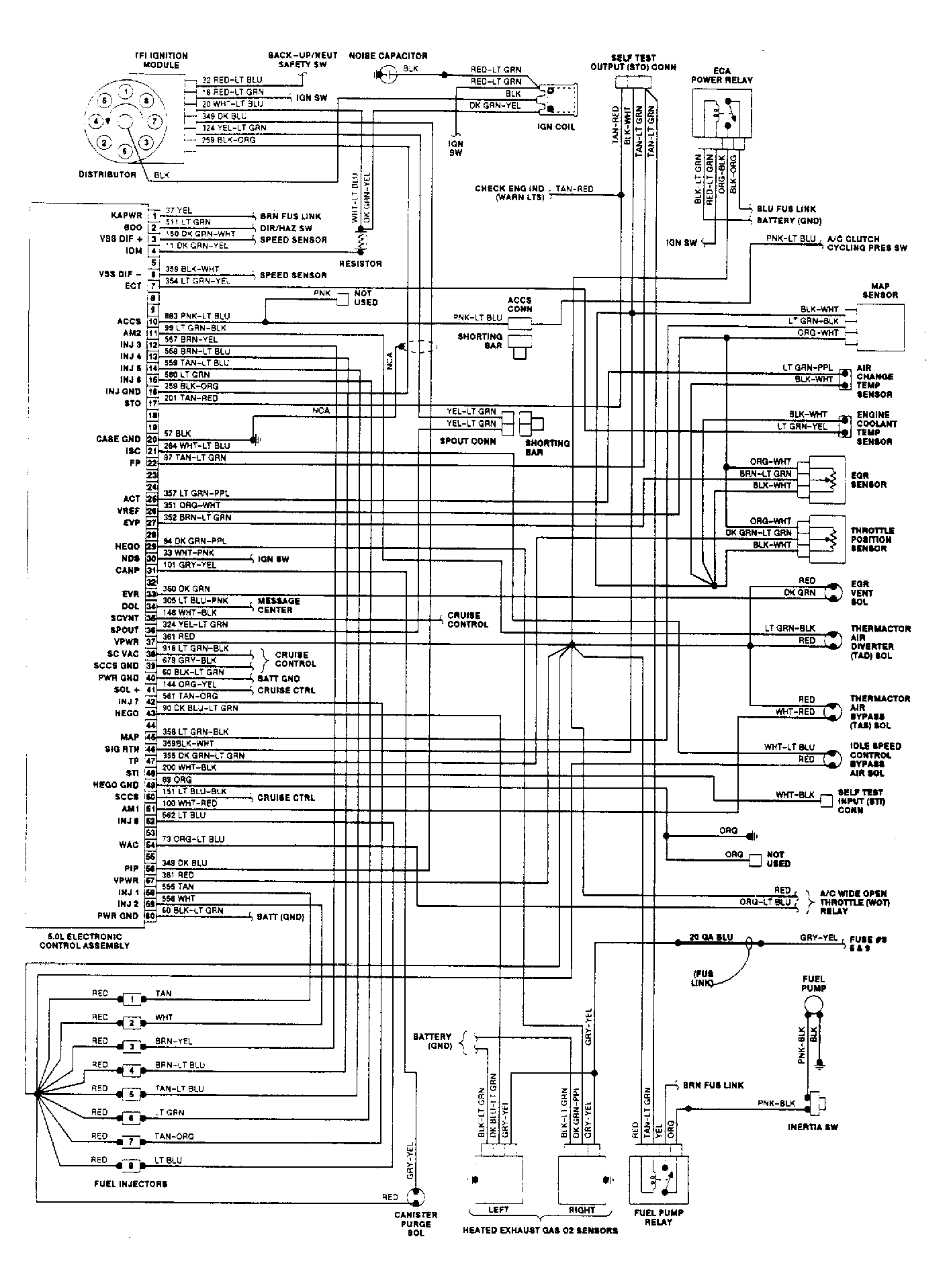

Fig 2: SEFI EEC-IV Wiring Diagram (Crown Victoria & Grand Marquis)

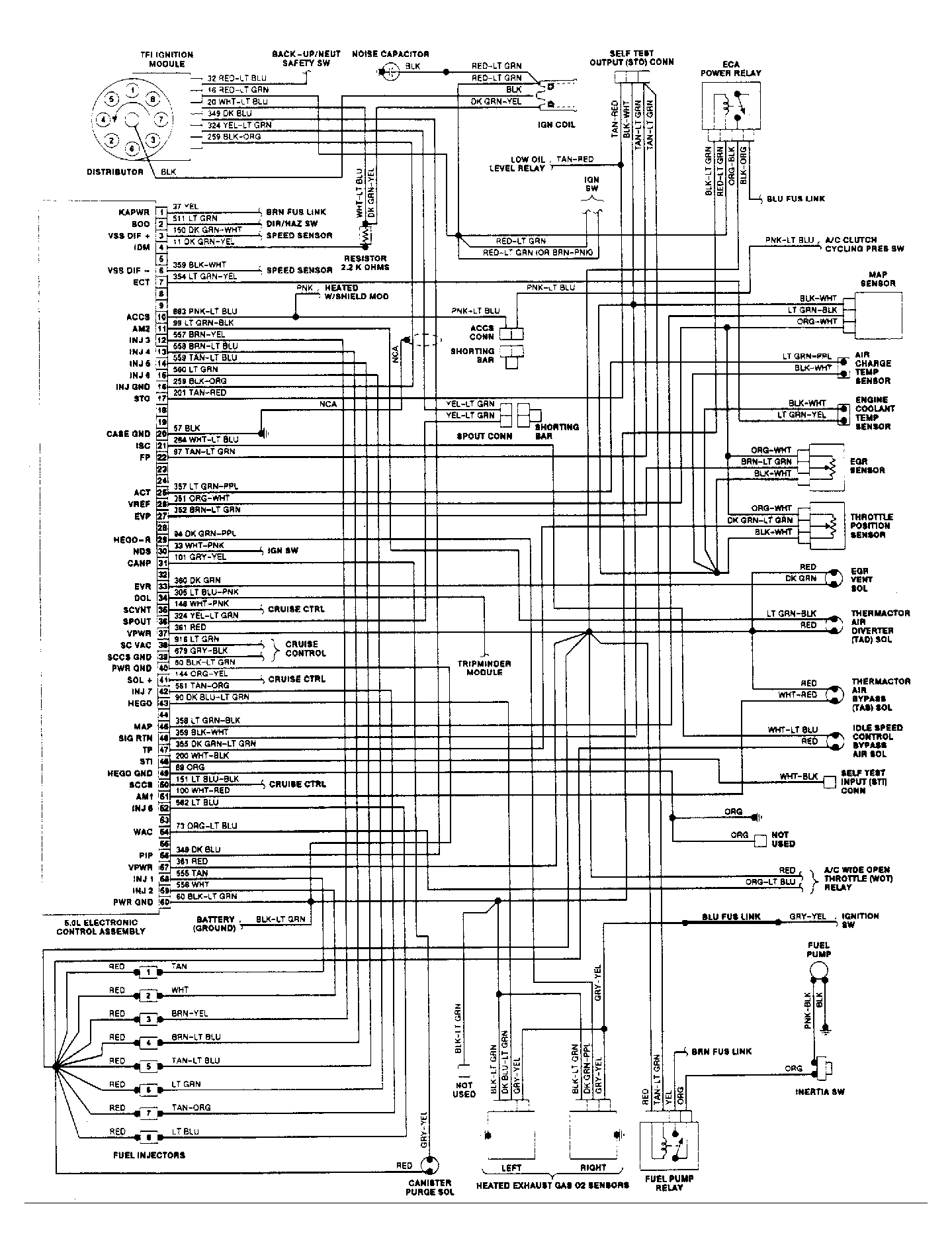

Fig 3: SEFI EEC-IV Wiring Diagram (Mark VII)

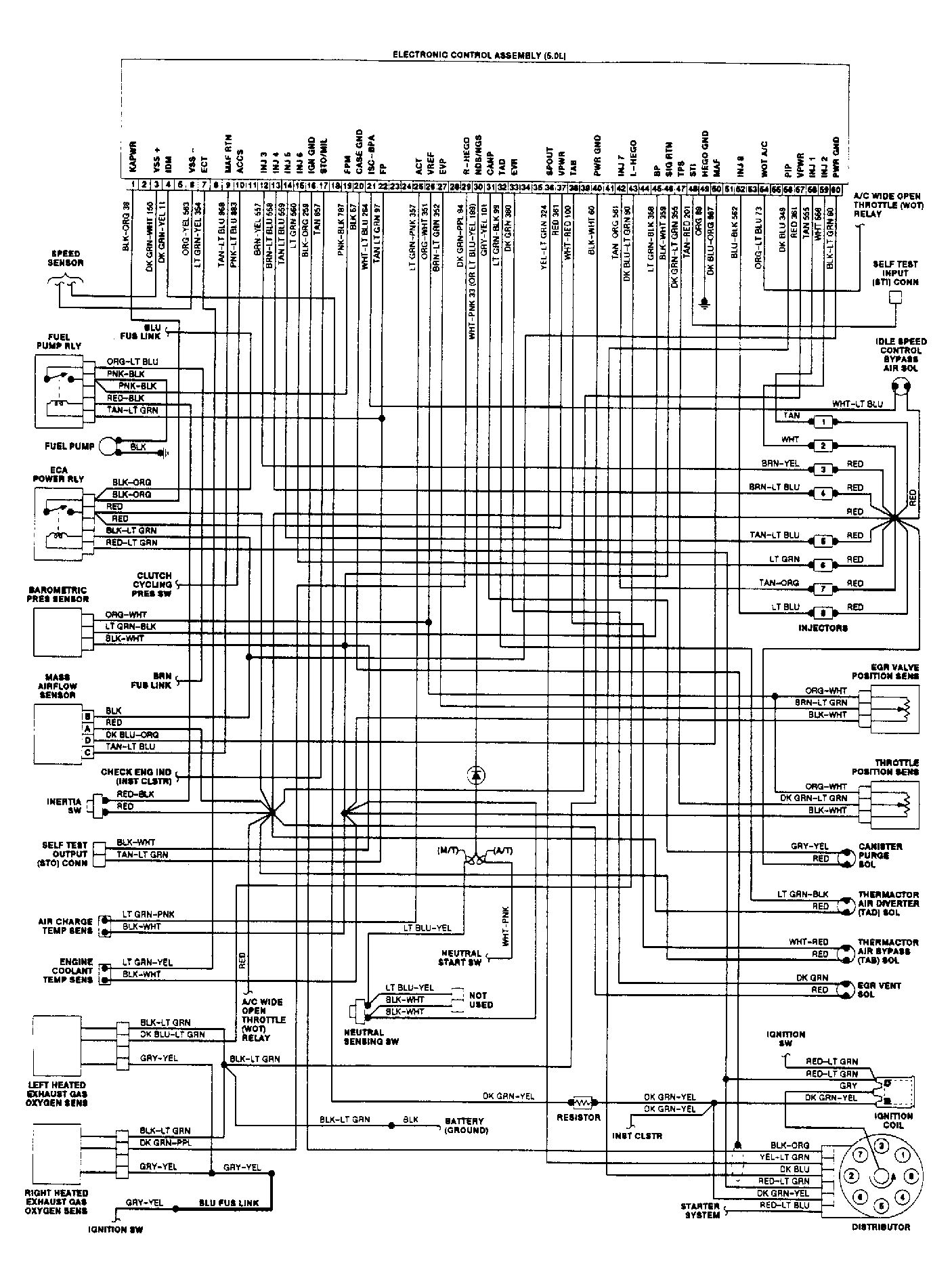

Fig 4: SEFI EEC-IV Wiring Diagram (Mustang)

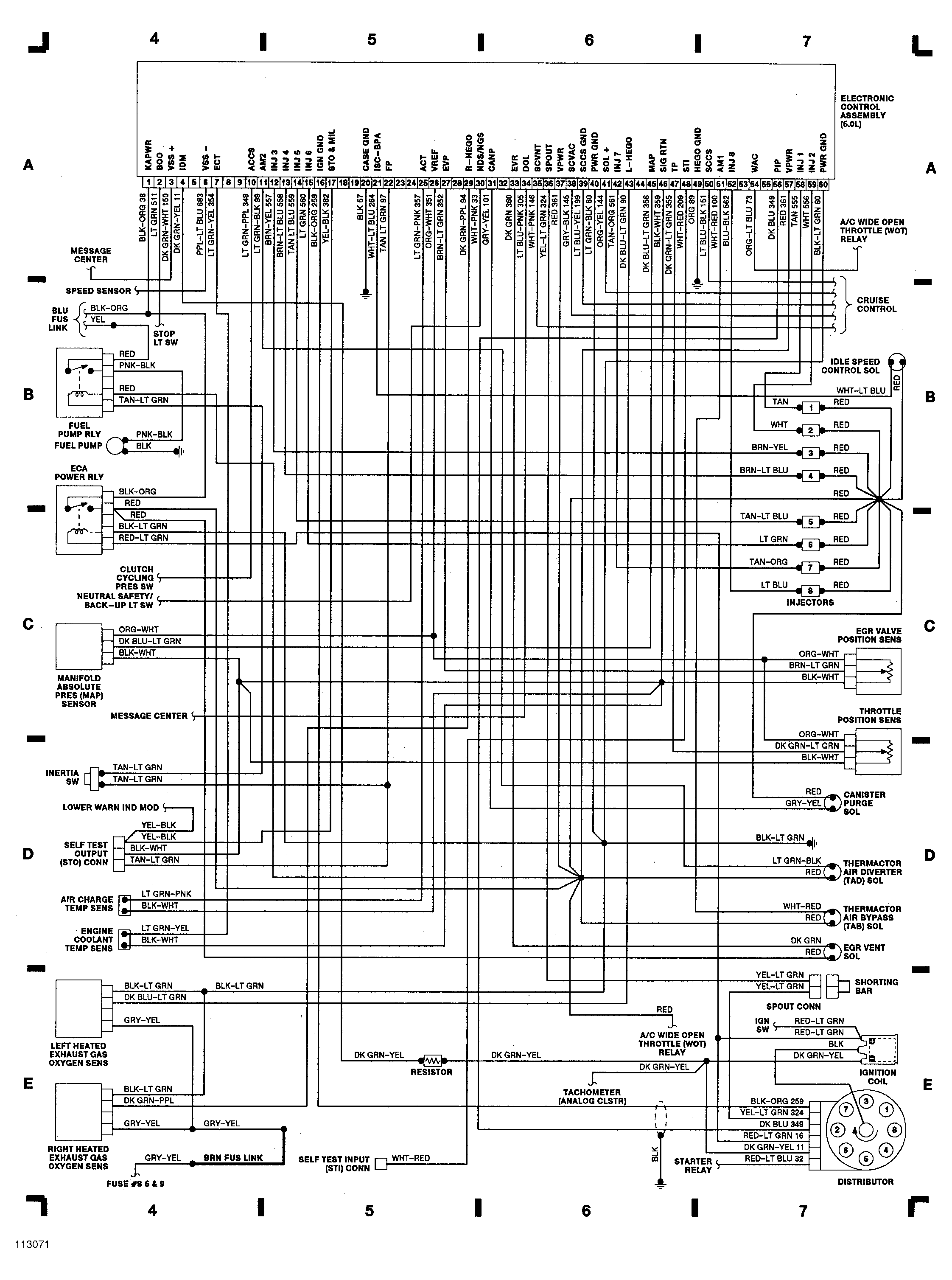

Fig 5: SEFI EEC-IV Wiring Diagram (Town Car)
