Control Module HVAC: Service and Repair

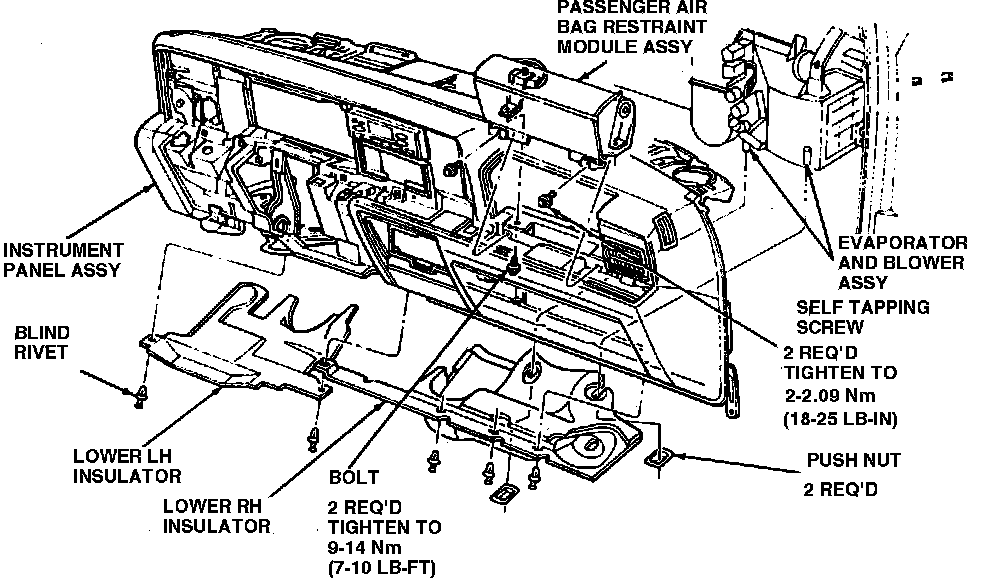

Fig. 9 Instrument panel removal:

1. Disconnect battery ground cable.
2. Remove both instrument panel shelf mouldings, Fig. 9.
3. Remove finish panel cluster opening attaching screws, then the panel.
4. Remove four Torx screws from control head.
5. Pull control head away from instrument panel, then disconnect two harness connectors from head assembly.
6. Remove vacuum harness retaining nuts, then separate control panel from instrument panel.
7. Reverse procedure to install.
