Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Anti-Theft System In-Line Fuse | In wiring harness, below left side of package tray. See Figure . | |
| Fuse Block | Below instrument cluster, to left of steering column. See Figure & Figure . | |
| Fuse Links | ||

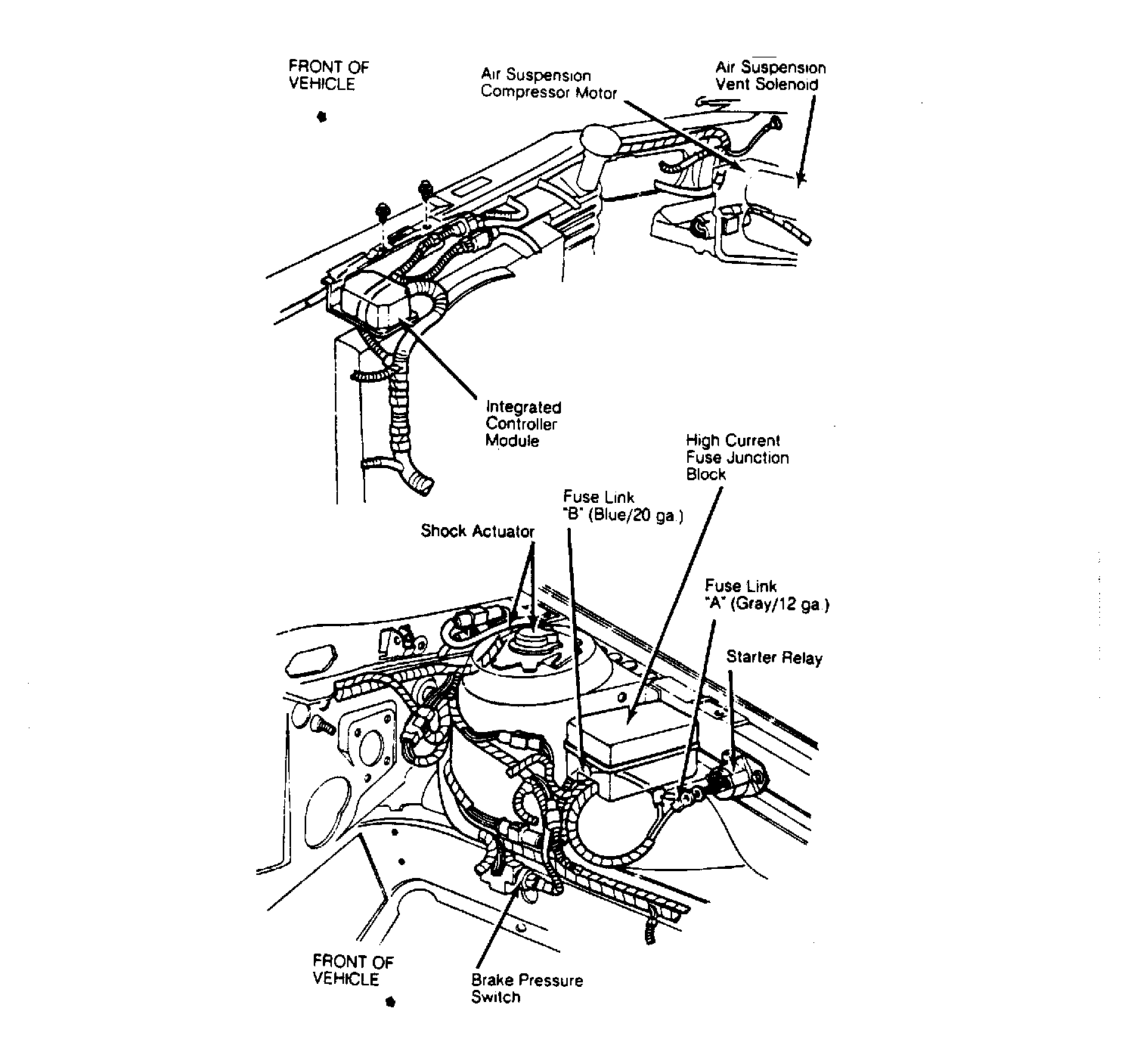

| A (Gray/12 ga) | Near starter relay. See Figure . | |
| B (Blue/20 ga) | On left side of engine bay, under fuse junction block. See Figure . | |
| C (Brown/18 ga) | Between right front fender and fender apron. | |
| High Current Fuse Junction Block | On left fender apron, in front of left strut tower. See Figure & Figure . | |
