DH - Throttle Position (TP) Sensor
>>

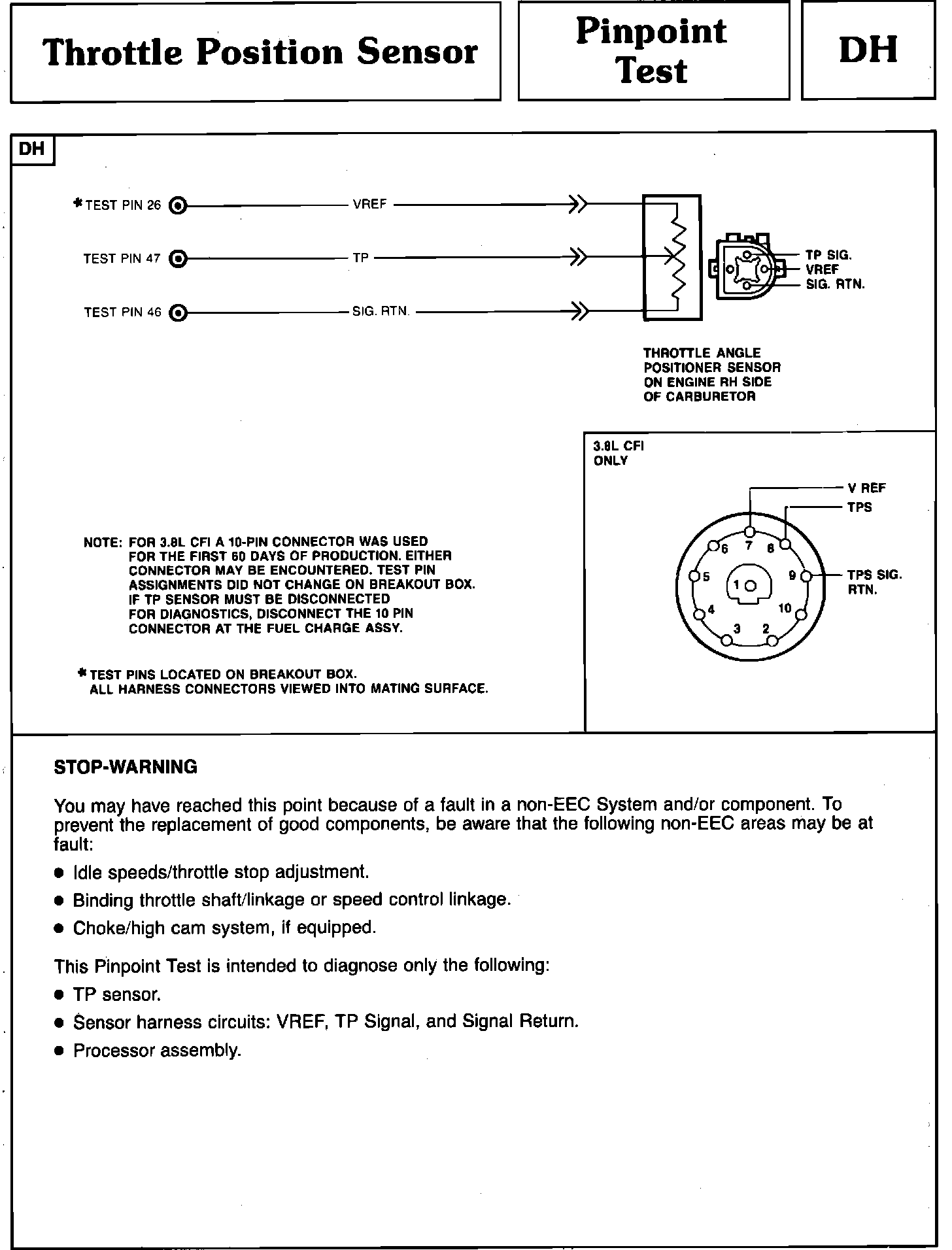

DH - Test Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DH - Test Schematic
