Damper & Hub Assembly
- Place torque converter in Holding Fixture (T83L-7902-A3). Place Turning Device (T83L-7902-A1 ) in converter. Ensure splines are engaged. Install Pilot Guide (T83L-7902-A2) over turning device and onto impeller hub.

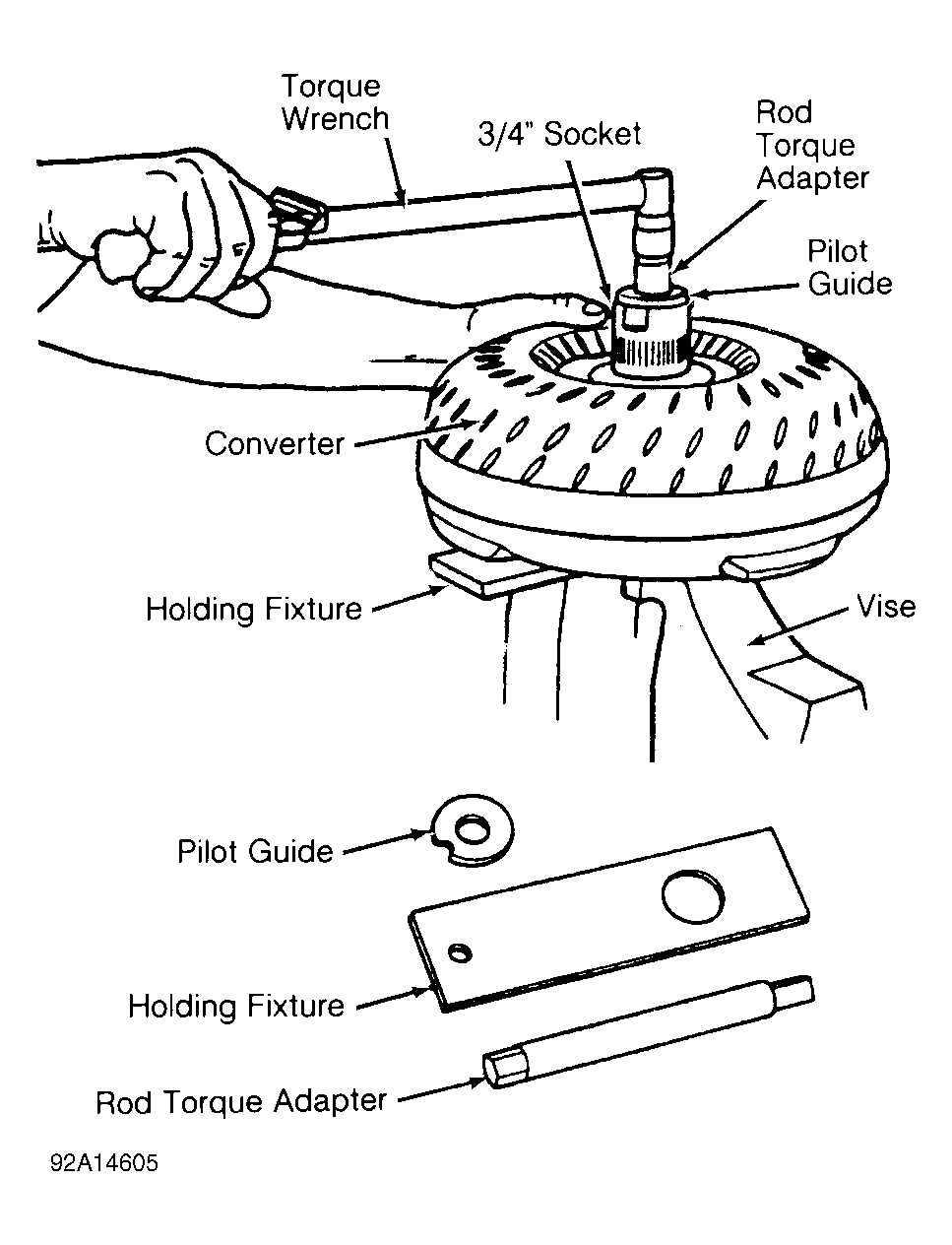

- Hold converter snug in holding fixture and rotate shaft clockwise and counterclockwise with 50 ft. lbs. (68 N.m), using a 3/4" socket and torque wrench. See Fig 1
. Shaft should not move more than 4 degrees. If shaft exceeds specification or grinding noise is heard, replace converter.
Courtesy of FORD MOTOR CO.
