Seats - Power: Testing: Switches

NOTE: Testing of both seat-mounted and arm rest-mounted switches is detailed in Figs. Fig 1 and Fig 2.

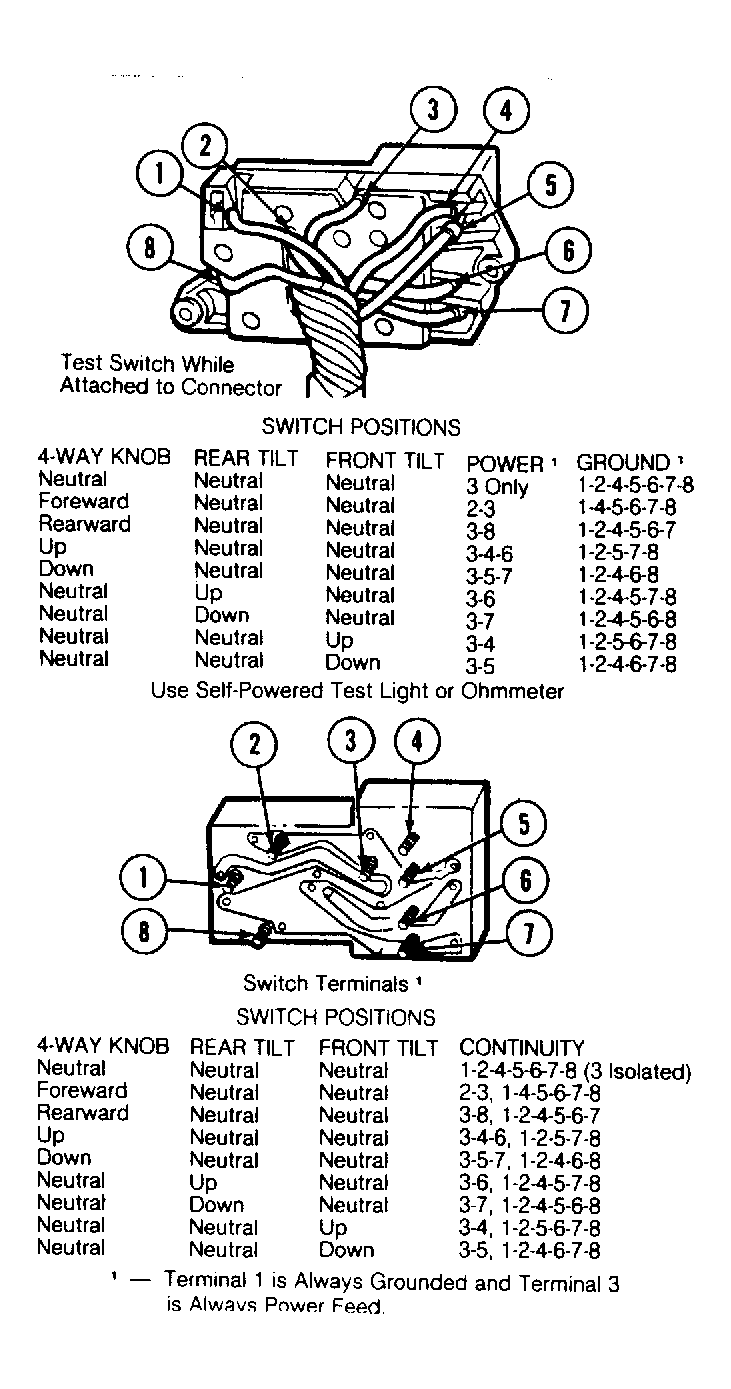

Fig 1: Terminal ID and Switch Test for Arm Rest Mounted Switches

Fig 2: Terminal ID and Switch Test for Seat Mounted Switch
