Less Programmable Seats

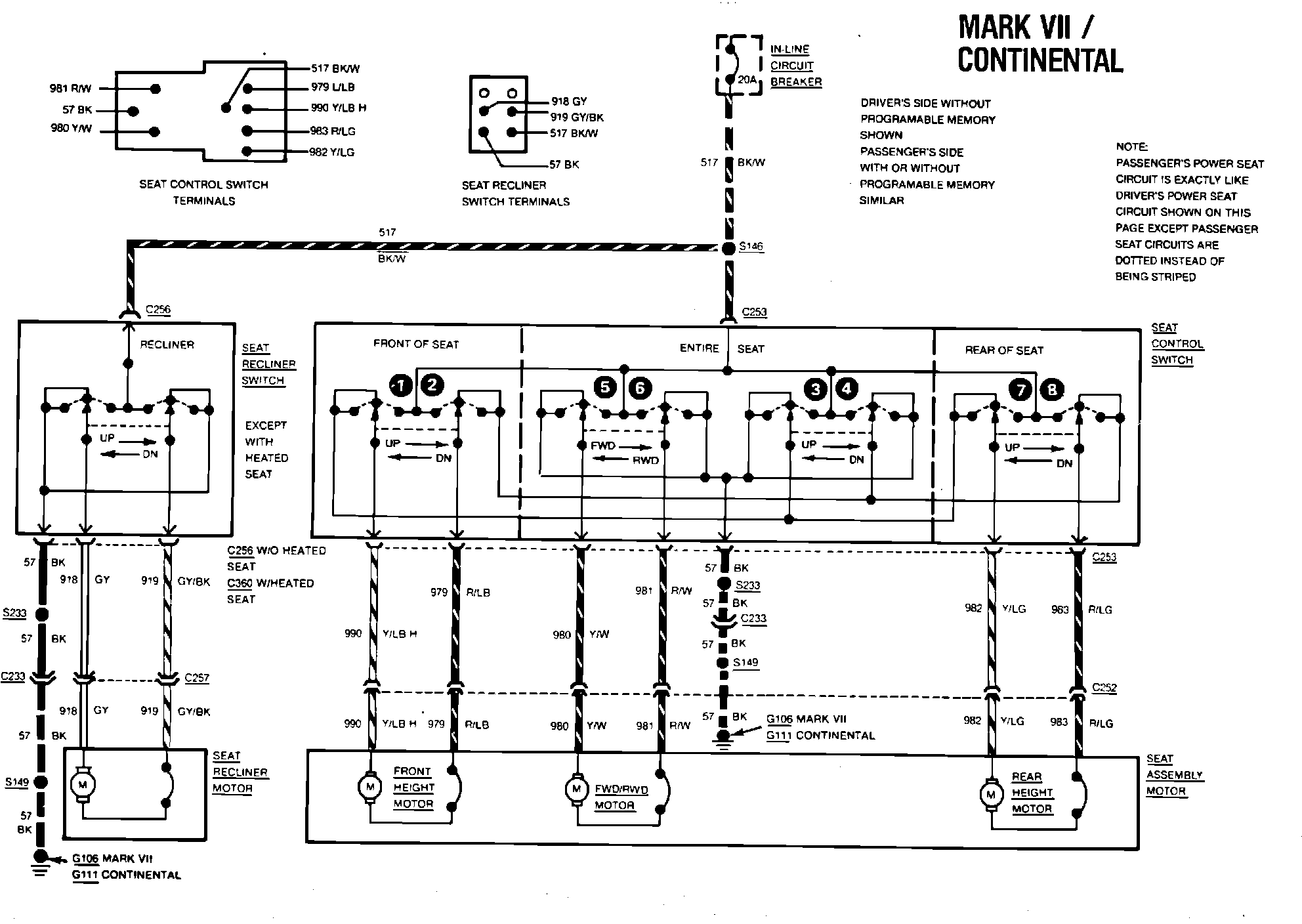

Fig. 151 Power seat wiring circuit. 1984 Continental & Mark VII less programmable seats:
