Less Keyless Entry System

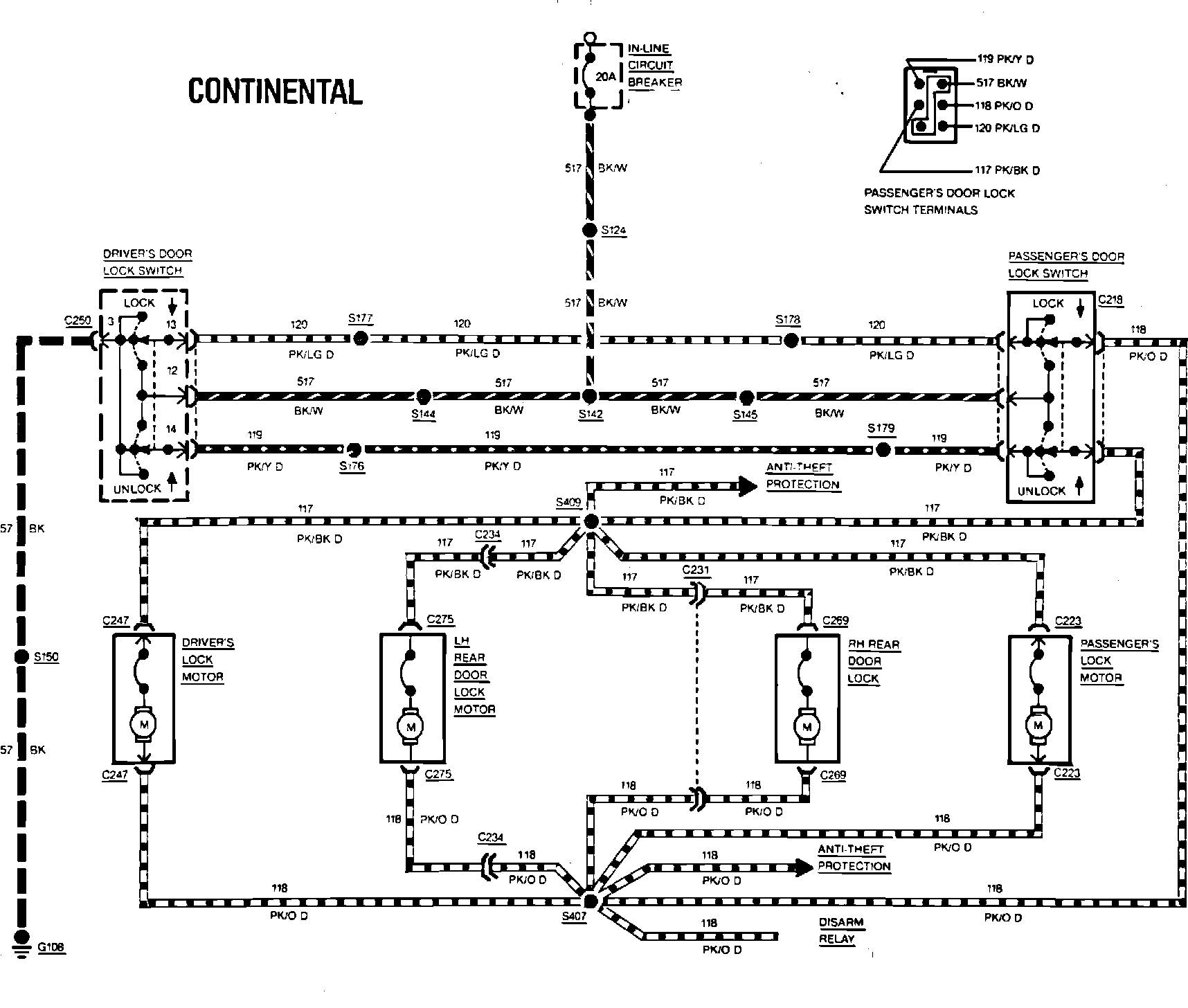

Fig. 141 Power door lock wiring circuit. 1984 Continental less keyless entry:
