Cruise Control: Diagrams

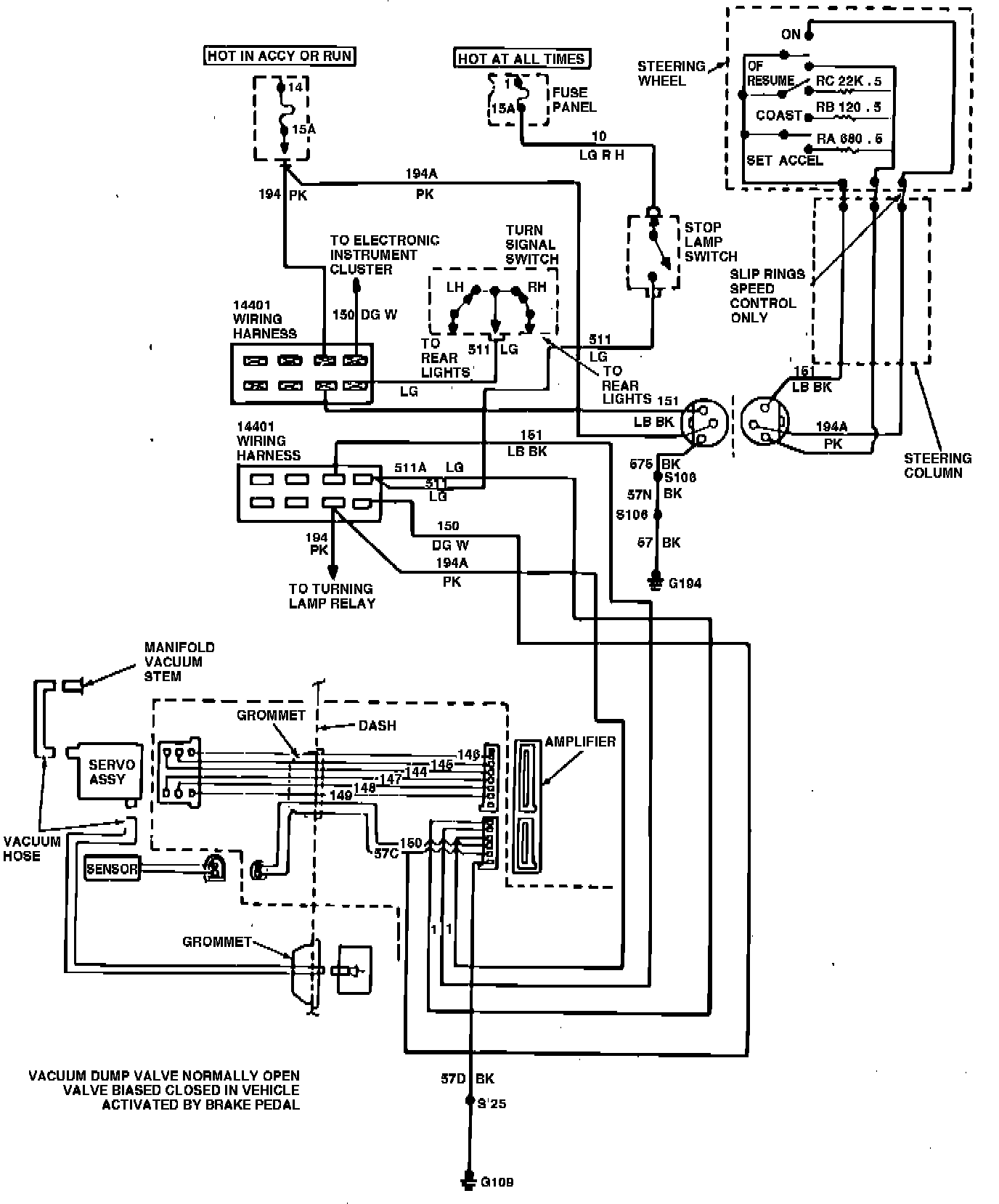

Fig. 7 Speed control wiring schematic (typical). 1982---85 Lincoln Continental & 1984---85 Mark VII:
